FLIR® DM286
  • https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/FLICO-DM286_1.pdf
  • https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/FLICO-DM286_2.pdf
  • https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/FLICO-DM286.pdf

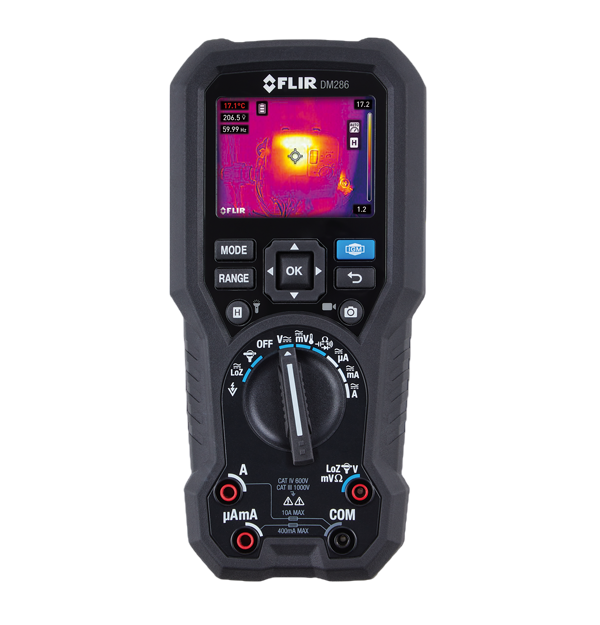

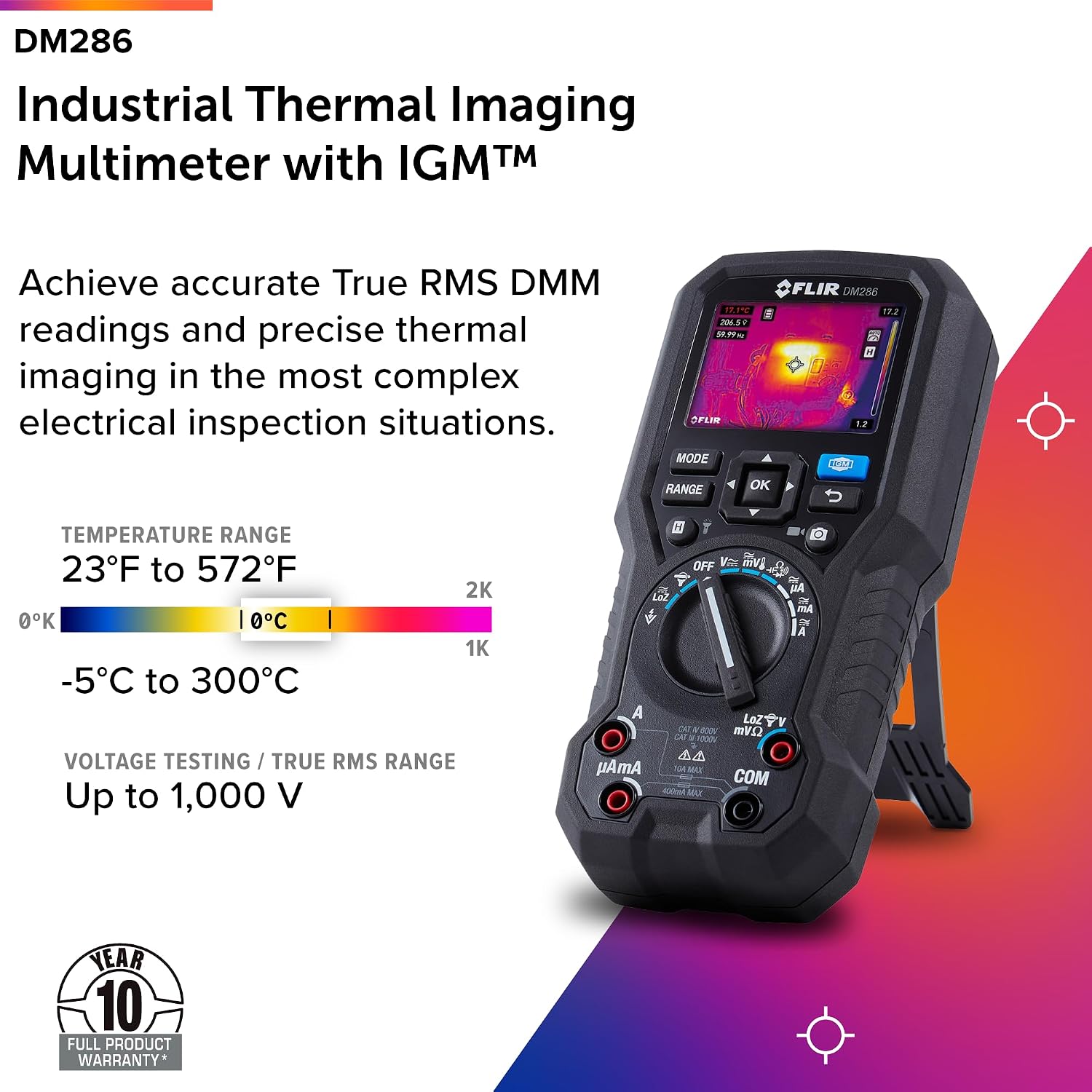

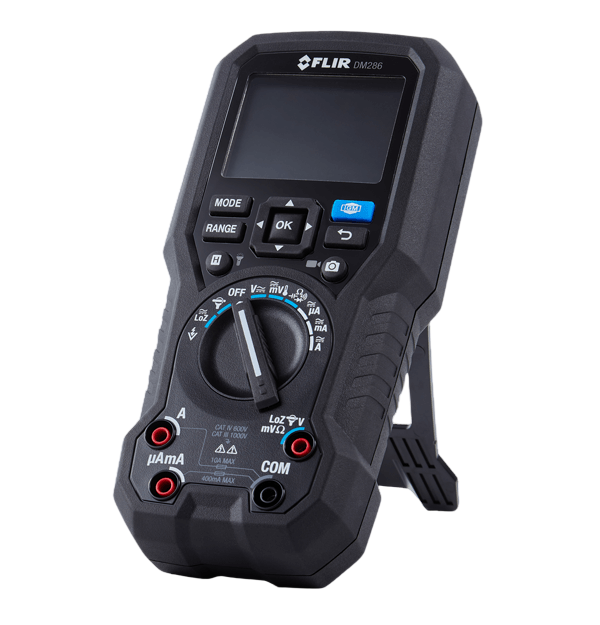

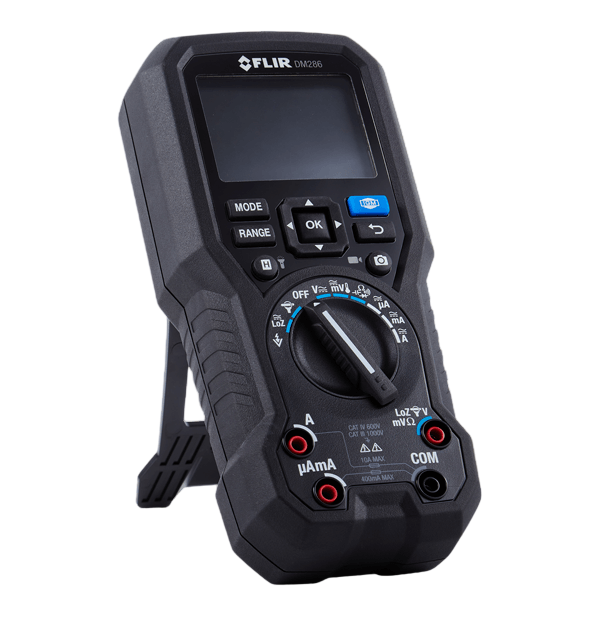

FLIR® DM286 Digital Industrial Thermal Imaging Multimeter with IGM™, 1000 VAC RMS/10.00 A, 3.7V 3050 mAh Lithium-Polymer

  • ITEM CODE: FLICO-DM286
  • UPC: 793950382868

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

FLIR® DM286

DESCRIPTION

The Flir DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate and efficient way to identify, document and share findings. With IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the Meterlink® app to quickly and efficiently capture readings, images and videos for analysis, trending and sharing.

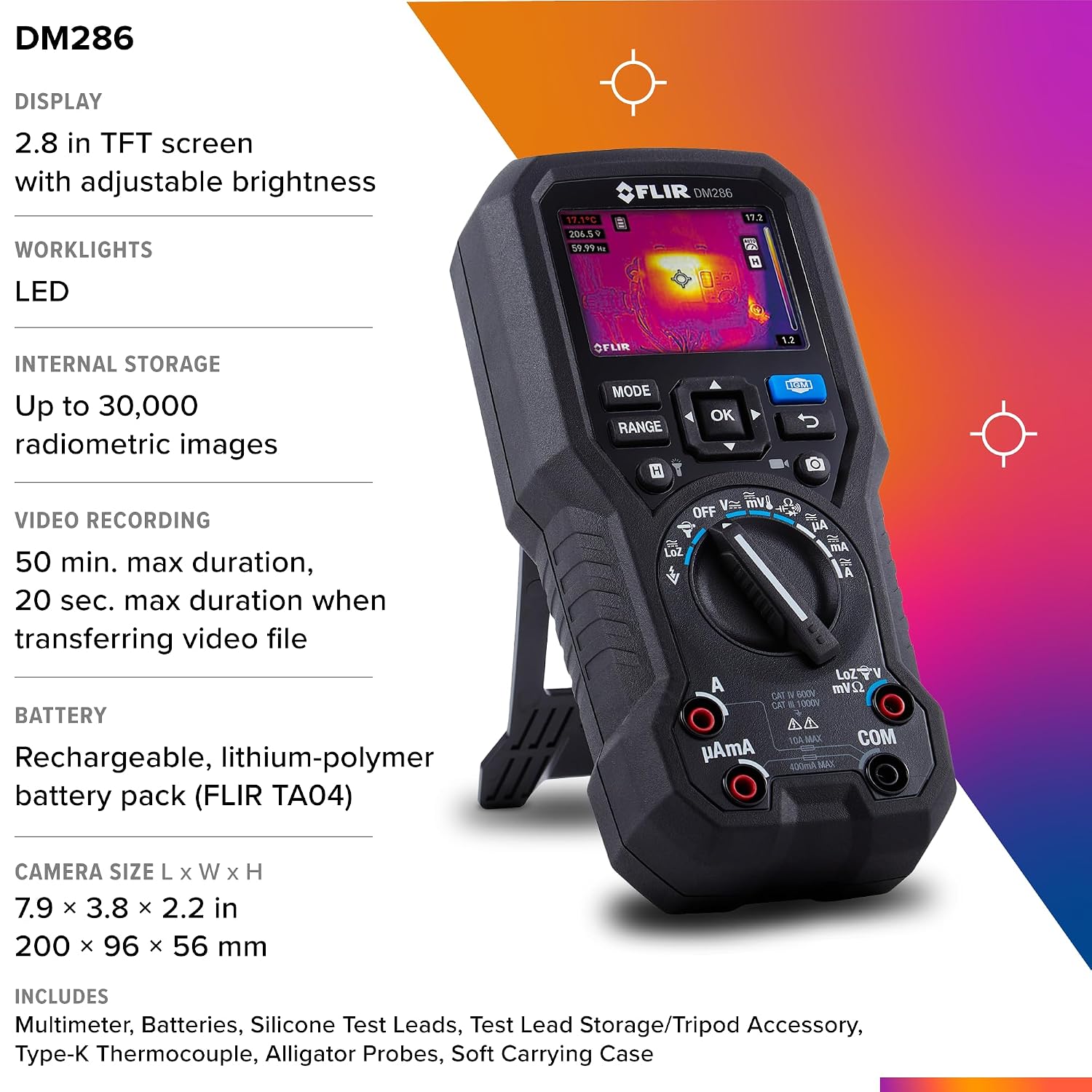

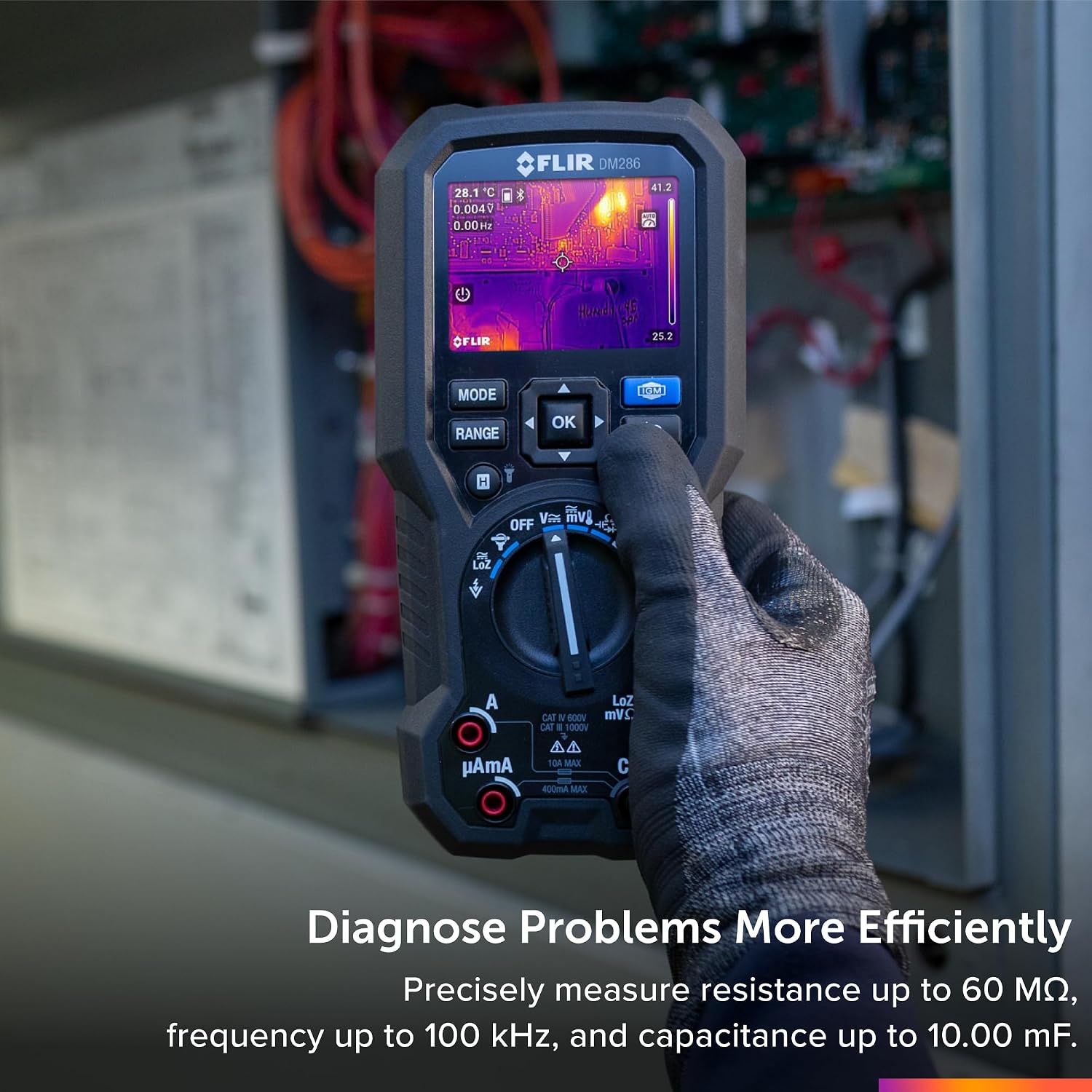

Industrial Thermal Imaging Multimeter with IGM™, Digital, Voltage - 1000 VAC RMS +/-(1.0％+3), 1000 VDC +/-(0.09%+3) - Amperage - 10.00 A AC RMS +/-(1.5%+3), 10.00 A DC +/-(1.0%+3) Measuring, 6.000 Mohm +/-(0.9%+5), 60.00 +/-(3.0%+5), Safety Rating: IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V, 10.00 +/-(4.0%+5) mF, +/-3 deg C or +/- 3% of the Reading Accuracy, 160 x 120 (IR) Resolution, 3.7V 3050 mAh Lithium-Polymer Battery, Bluetooth BLE Interface, 1.5+/- 0.9%, 7.9 x 3.8 x 2.2 in, -20 to 60 (Storage) deg C

APPLICATIONS

For Electrical Tool Inspector

SPECIFICATIONS

FEATURES

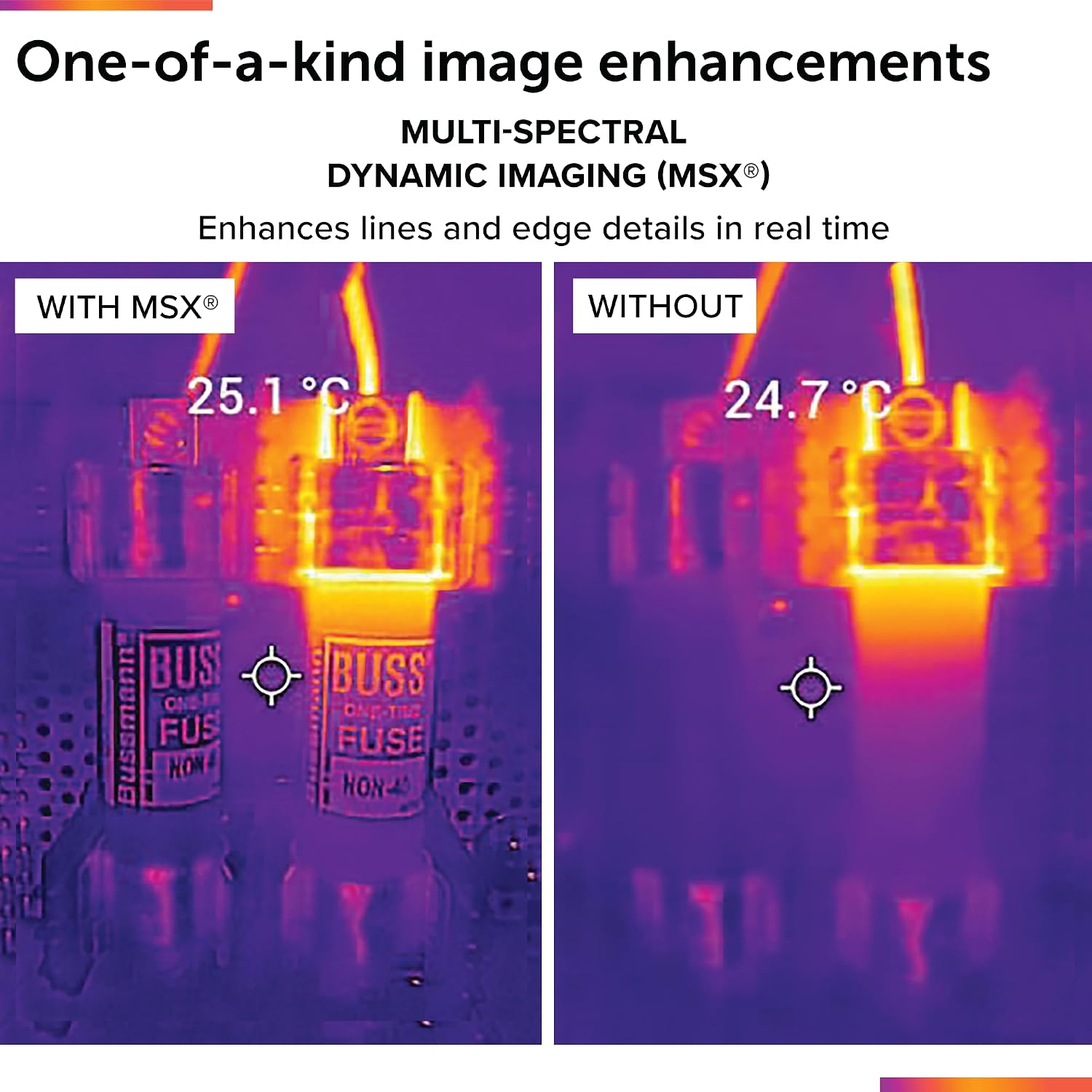

  • Perform safe, accurate & quick inspections - Safely locate potentially dangerous problems without direct contact using Flir IGM. MSX gives you unrivaled clarity by embedding edge and outline detail onto thermal images

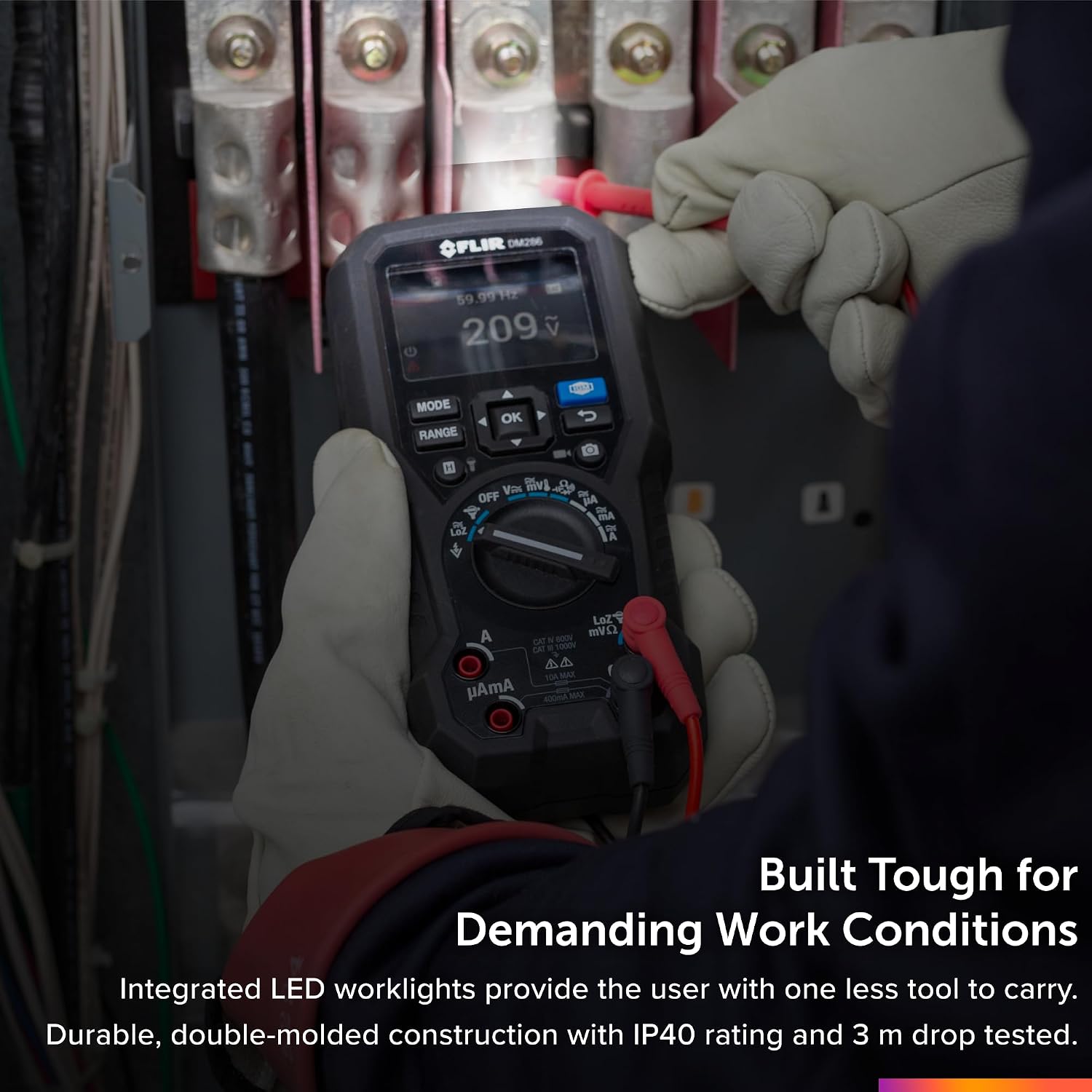

  • Purpose built for all dau operation - The Flir DM286 comes with a built-in LED work light for better visibility in dark or poorly lit areas, two rechargeable Lithium Polymer battery packs for all-day operation and a 2 m drop test rating for durability

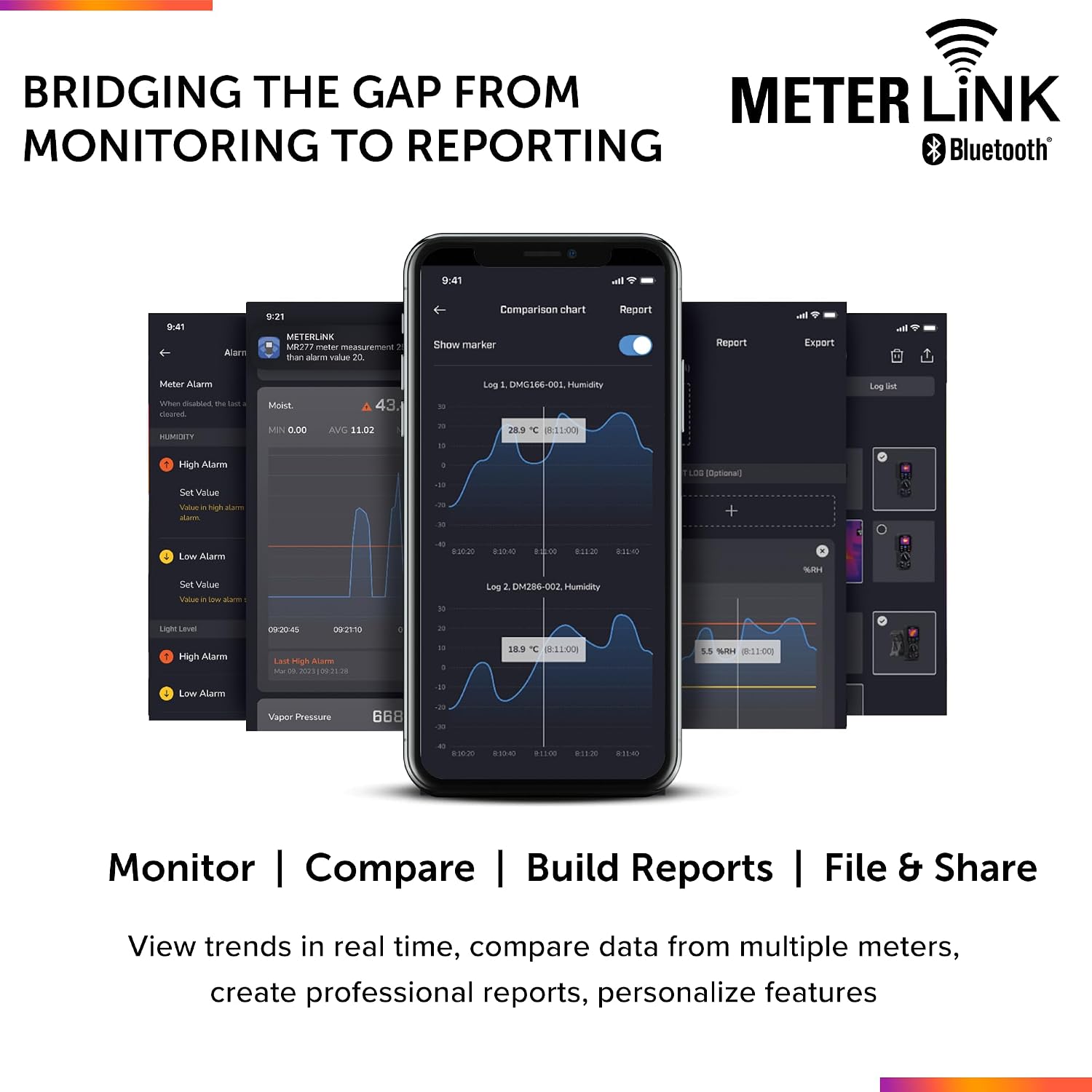

  • Unmatched connectivity - Use the Flir Meterlink app to quickly and efficiently capture and compare readings, analyze and share radiometric images and videos and create reports

CERTIFICATIONS/STANDARDS

  • ETL Listed, FCC Approved, CE Certified, RCM, UKCA, FDA Approved, EN60825, EN50689, EN61326-1, IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V

REFERENCES

  • pdf FILE https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/FLICO-DM286_1.pdf
  • pdf FILE https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/FLICO-DM286_2.pdf
  • pdf FILE https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/FLICO-DM286.pdf
