FLIR Systems Extech® SDL400-NIST Light Meter/Datalogger with NIST Certificate, LCD, AA

  • ITEM CODE: EXTEC-SDL400NIST
  • UPC: 793950434116

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

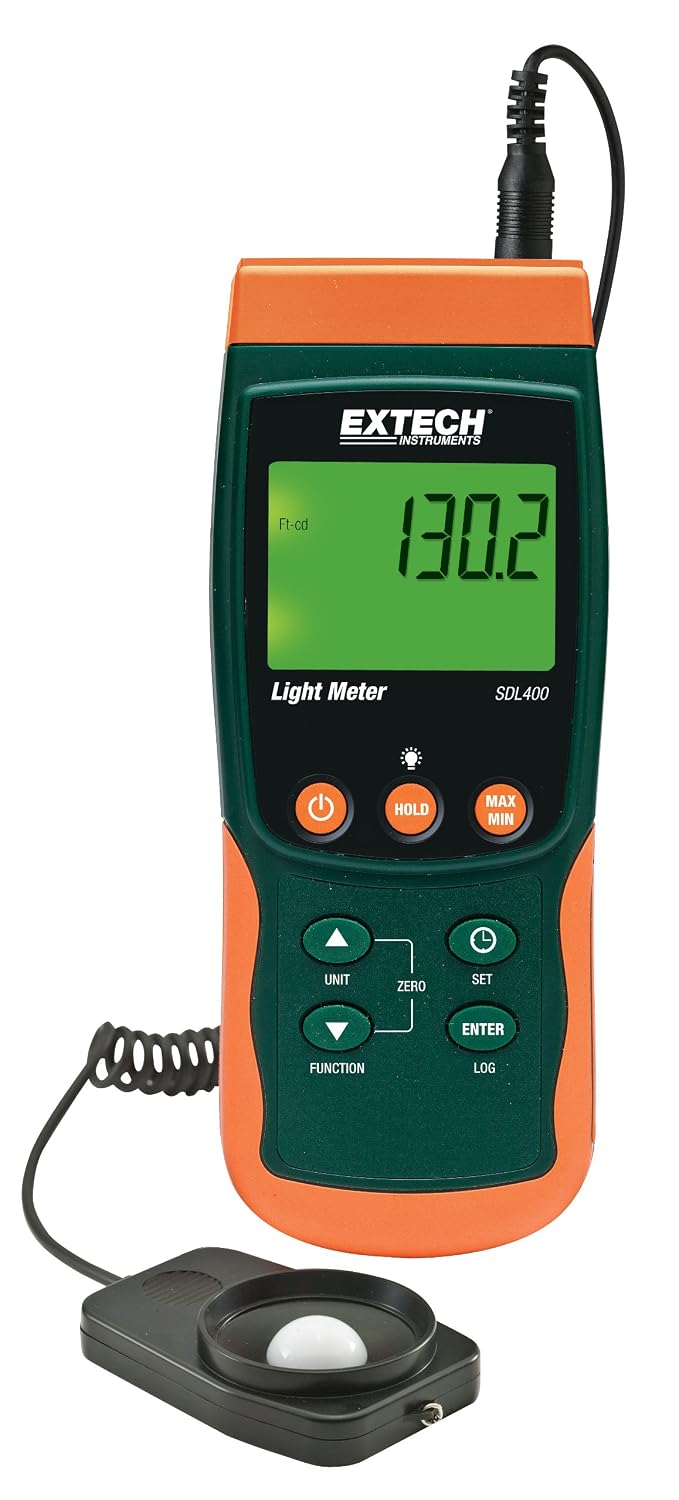

Extech® SDL400-NIST

DESCRIPTION

The SDL400 records data on an SD card in Excel format. Wide range to 10,000Fc or 100kLux. Cosine and color-corrected measurements. Utilizes precision silicon photo diode and spectral response filter. Offset adjustment used for zero function to make relative measurements. Adjustable data sampling rate. Stores 99 readings manually and 20M readings via 2G SD card. Type K/J Thermocouple input for high temperature measurements. Large backlit LCD display. Record/Recall Min, Max, Data Hold and Auto power off. Complete with 6 x AA batteries, SD card, hard carrying case and light sensor with protective cover.


Light Meter/Datalogger with NIST Certificate, 200, 2000, 10 (Foot Candle)/2000, 20k, 100 (Lux) Measuring, 0.1Fc (Foot Candle)/1 Lux Resolution, +/-4% of Reading (Foot Candle Basic)/+/-4% of Reading(Lux Basic) Accuracy, LCD Display, Data Hold: Yes, Memory Storage: Manual: 99 readings, Continuous: datalogs with 4GB SD card, Yes Auto Power Off, AA Battery

  • Wide range to 10,000Fc or 100kLux
  • Cosine and color-corrected measurements
  • Utilizes precision silicon photo diode and spectral response filter
  • Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
  • Offset adjustment used for zero function to make relative measurements
  • Adjustable data sampling rate: 1 to 3600 seconds
  • Stores 99 readings manually and 20M readings via 2G SD card
  • Type K/J Thermocouple input for high temperature measurements
  • Large backlit LCD display
  • Record/Recall MIN, MAX readings
  • Data Hold plus Auto power off with disable function
  • Complete with 6 x AA batteries, SD card, hard carrying case and light sensor with 45 in (1.1 m) cable and protective cover
  • CE Certified, NIST Certificate
