Camero XAVER1000 3D Through-Wall Imaging System, 42 m, 100-240 VAC, 15 VDC

  • ITEM CODE: CAMER-XAVER1000

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

Camero XAVER1000

DESCRIPTION

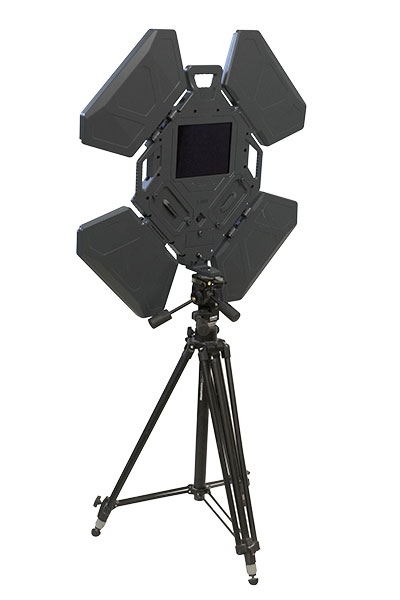

The Xaver™ 1000 is an essential system for Military, Law Enforcement, Search & Rescue teams and Intelligence units, operating in various situations including hostile urban and disaster environments. The system creates an unprecedented situational awareness 3D visual picture, providing a clear operational advantage and the ability to “step into the known”. The Xaver™ 1000 is the successor of Camero’s Xaver™ 800, the world’s first full 3D imaging system.


3D Through-Wall Imaging System, Series: XAVER™ 1000, Detection Range: 42 m, Detection Angle/Field of View: 120 deg in both Azimuth and Elevation, 100-240 VAC 50/60 Hz, 15 VDC Power Source, Touchscreen Display, 10.1 in Display, Display Mode: 3D View, 2D Plain View, 2D Side View, Range Over Time, Rechargeable Battery, 3 hrs Battery Operation Time, 91 cm L x 91 cm W x 5 cm H Open Wings, 46 cm L x 46 cm W Folded Wings, Penetrable Materials: Cement, Plaster, Brick, Concrete, Reinforced Concrete, Adobe, Stucco, Drywall and Many Other Standard Building Materials

APPLICATIONS

Military, Law Enforcement and Search & Rescue

SPECIFICATIONS

FEATURES

  • The Xaver™1000 is the new generation of the Camero Xaver™ product line equipped with an AI-based tracking of live target patterns
  • The Xaver™1000 is a real-time 3D ‘Sense-Through The Wall’ imaging device that enables the detection of live objects (static or dynamic) behind walls and building obstacles
  • The Xaver™1000 provides an unprecedented resolution of body parts and position: sitting, standing, lying down, and the height of the live objects
  • The Xaver™1000 has the ability to distinguish whether the object is an adult, a child or an animal
  • The Xaver™1000 is optimized for tactical and ISR operations by gathering mission-critical accurate real-time information about living objects from behind solid walls and barriers including: Presence of life in the room, Number of people and their distance from the system, Can be operated near-wall or in stand-off mode, Target height and orientation, Room general layout, including dimensions and major infrastructure elements
  • 3D visual display of live and static objects
  • Integrated 10.1 in Touch-screen display
  • Foldable antenna wings for compact storage and transport
  • System can penetrate through most common walls and materials
  • Remote display and control capabilities via Wi-Fi link
  • Simultaneous detection of moving and non-moving objects
  • Simple user interface for intuitive interpretation
  • Integrated data recording and playback for post-mission analysis, training and debriefing
  • Proprietary and Unique algorithms and signal processing
  • Ready to use by a single user at the push of a button
