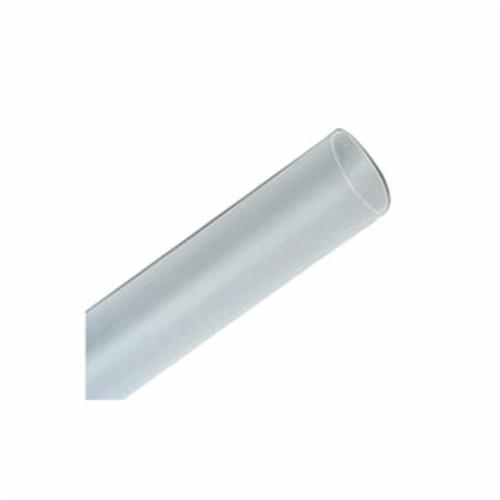

3M™ Heat Shrink Thin-Wall Tubing FP-301-1.5-Clear-100', 100 ft Length per spool, 2 spools/case

  • ITEM CODE: 3MIND-7100025155
  • UPC: 30054007085332

  • Min. Order Qty: 200
  • Qty. Interval: 200

loading
loading

3M™ 7100025155

DESCRIPTION

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.


3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection. 3M™ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.

  • Fp-301 tubing is typically used as a shrink fit electrical insulation over cable splices and terminations
  • Split-resistant, mechanically tough, easily marked and resists cold flow
  • 400% elongation
  • 2400 psi tensile strength
  • 900 v/mil dielectric strength
  • High-strength protection, balances electrical, physical, and chemical properties for various industrial and military applications
  • Performs at an operating temperature up to 275 deg f (135 deg c)
  • CSA Certified
  • RoHS Compliant
  • UL Listed
