3M™ Scotchlok™ Female Disconnect Nylon Insulated, 50/bottle, MNU10-250DFIX, 500/Case
- Manufacturers: 3M
- Brand Name: Scotchlok™
- ITEM CODE: 3MIND-7100165255
- Mfr Part: 7100165255
- UPC: 10051128588120
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: EACH
-
Price:
DESCRIPTION

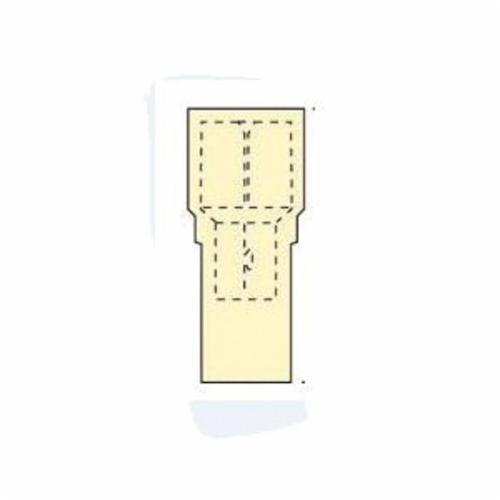

3M™ Scotchlok™ color coded female disconnect terminal attaches to the mating part with a tongue that slips over-the male tab. The butted seam barrel of this terminal provides electrical contact after crimping. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and its stepped design ensures mistake-proof crimping.
This terminal has a wire range of 16-14 AWG and has case quantities of 500 per case. The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
APPLICATIONS
Building Fixtures or Luminaires, Signs and Wire Applications
| Finish | : | Tin Plated |
| Specifications | : | 0.128 in ID Barrel, 0.99 in Dia |
| Temperature Rating | : | -40 to 221 deg F |
| Terminal Type | : | Crimp |
| Terminal Type | : | Disconnect |
| Type | : | Fully Insulated |
| Voltage Rating | : | 600/1000 VAC |
| Conductor Size | : | 12 to 10 AWG |
| Tab Size | : | 0.25 in W x 0.032 in THK |
| Barrel Type | : | Butted Seam |
| Material | : | Nylon |
| Color | : | Yellow |
| Insulated | : | Fully Insulated |
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- Mates with 1/4 in wide male tab
- 50 terminals/bottle, 500 terminals/case
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
- RoHS Compliant
- UL Listed
- CSA Certified
