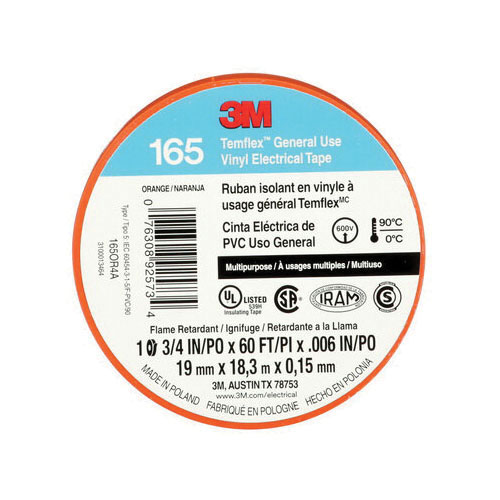

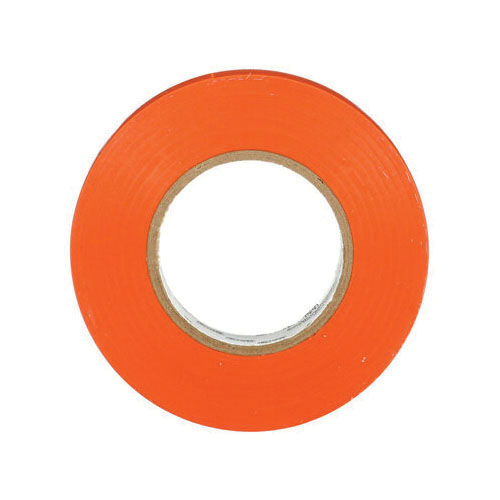

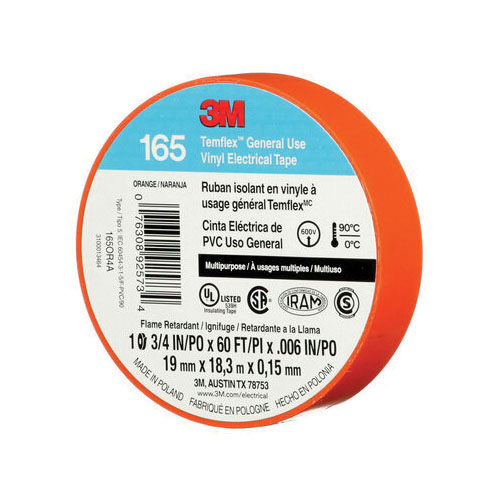

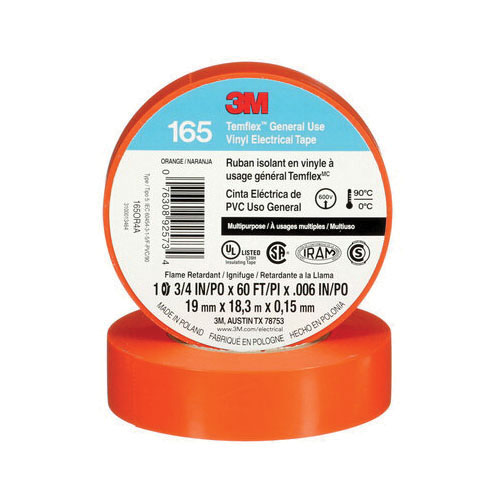

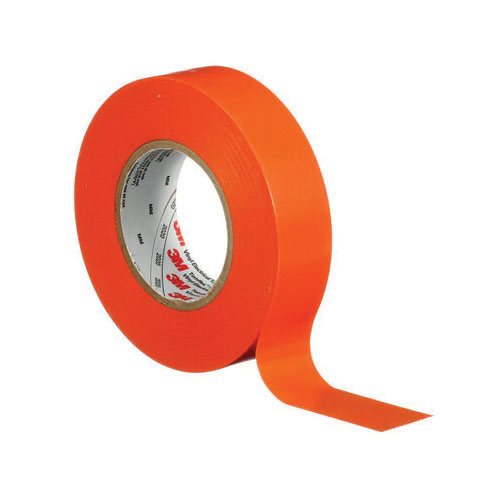

3M™ Temflex™ Vinyl Electrical Tape 165, Orange, 3/4 in x 60 ft (19 mm x 18 m), 6 mil, 100 Rolls/Case
- Manufacturers: 3M
- Brand Name: Temflex™
- ITEM CODE: 3MIND-7100169433
- Mfr Part: 7100169433
- UPC: 00076308925734
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
DESCRIPTION
3M™ Temflex™ Vinyl Electrical Tape 165 is a good quality, multi-purpose vinyl insulating tape. It has great resistance to moisture and varying weather conditions. It is a polyvinyl chloride (PVC) tape that is flame-retardant and conformable. 3M Temflex 165 Tape provides great mechanical protection with minimum bulk. It is a UL Listed and CSA Certified “Insulating Tape.” No solvents are used in the manufacturing process.
3M™ Temflex™ Vinyl Electrical Tape 165 is a good quality, multi-purpose vinyl insulating tape. It has great resistance to moisture and varying weather conditions. It is a polyvinyl chloride (PVC) tape that is flame-retardant and conformable. 3M Temflex 165 Tape provides great mechanical protection with minimum bulk. It is a UL Listed and CSA Certified “Insulating Tape.” No solvents are used in the manufacturing process. Use 3M™ Temflex™ 165 Vinyl Electrical Tape for wire and cable primary insulation (low voltage), repairs and harnessing. This professional grade tape provides enhanced performance and is suitable for indoor and outdoor use.
APPLICATIONS
Residential, Commercial and Manufacturing (OEM) Environments
| Adhesion Strength | : | 18 in-oz |
| Dielectric Strength | : | 40 kV/mm |
| Maximum Operating Temperature | : | 194 deg F |
| Minimum Operating Temperature | : | 32 deg F |
| Series | : | 165 |
| Specifications Met | : | CSA C22.2 No. 197 File No. 048769 Class 9052-02|OANZ File No. E129200|VDE Certified|UL 510 |
| Tensile Strength | : | 13 in-lb |
| Type | : | Multi-Purpose Flame-Retardant |
| Voltage Rating | : | 600 V |
| Length | : | 60 ft |
| Width | : | 3/4 in |
| Thickness | : | 6 mil |
| Material Type | : | Vinyl |
| Adhesive Material | : | Rubber |
| Backing Material | : | PVC |
| Color | : | Orange |
- Resists abrasion, moisture, alkalis, solvents and acids
- Flame-retardant and inhibits the corrosion of electrical conductors
- Suitable for moderate indoor and weather protected outdoor uses
- Color coding for phase identification, wire marking and safety
- Harnessing and bundling of wires and cables
- Wire pulling and fishing
- Withstands a temperature range of 32 to 194f (0 to 90c)
- For industrial/occupational use only
- Not for consumer sale or use
- Made of durable elastic pvc and a pressure-sensitive rubber-based adhesive
- Multi-purpose vinyl-insulating tape, compatible with rubber and synthetic splicing compounds
- RoHS Compliant
- REACH Compliant
