Emerson Electric RIDGID® 26092 Power Threading Machine, Model 1224, 1/4 - 2 in (6 - 100 mm) at 36 rpm, 2-1/2 - 4 rpm (65 - 100 mm) at 12 RPM, 4 - 6 in (100 - 150 mm) with 161 Geared Threader, 36/12 rpm
- Manufacturers: Emerson Electric
- Brand Name: RIDGID®
- ITEM CODE: RIDGE-26092
- Mfr Part: 26092
- UPC: 095691260925
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
RIDGID® 26092
DESCRIPTION

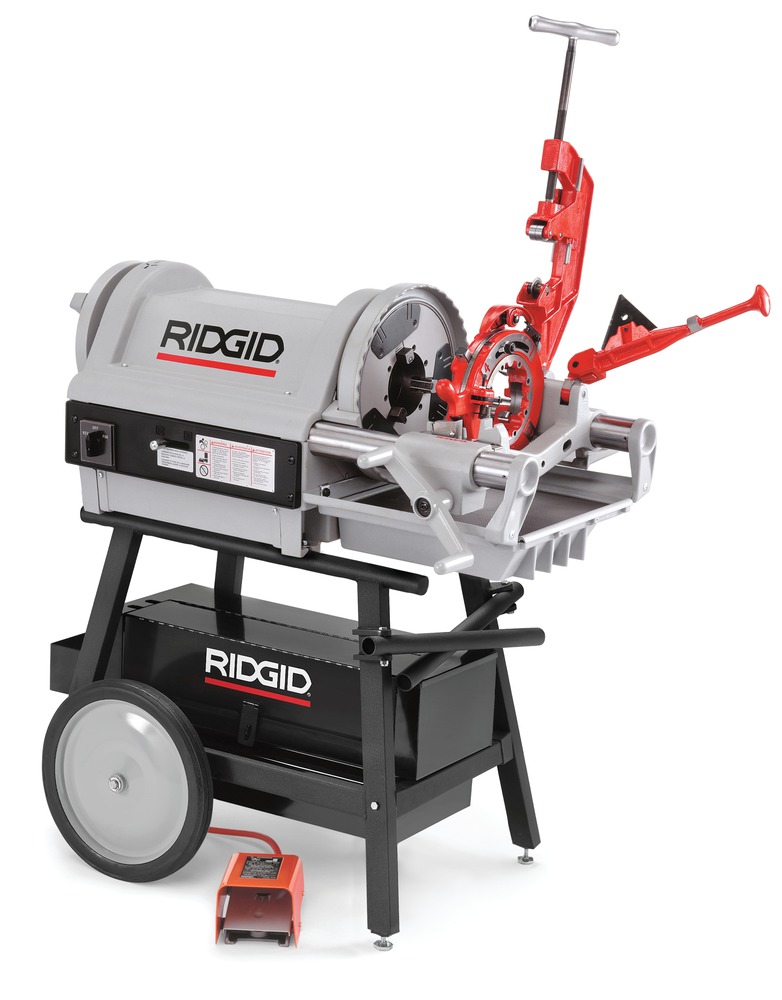

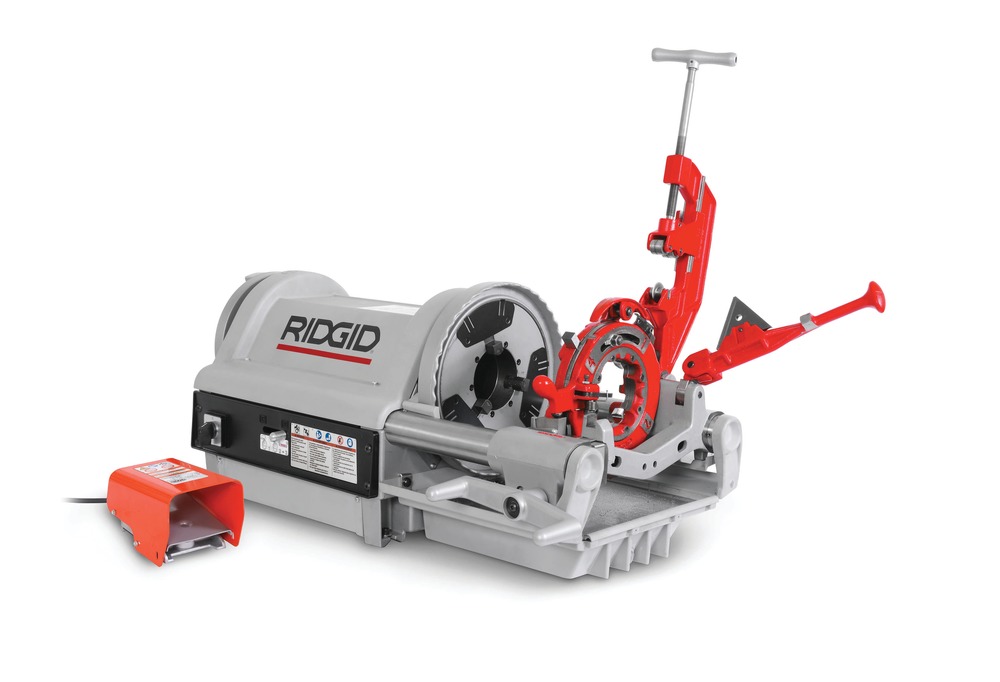

The Model 1224 Pipe Threader threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
Power Threading Machine, Model 1224, 1/4 - 2 in (6 - 100 mm) at 36 rpm, 2-1/2 - 4 rpm (65 - 100 mm) at 12 RPM, 4 - 6 in (100 - 150 mm) with 161 Geared Threader, Speed: 36/12 rpm, 1-1/2 hp, 120 VAC, 15 A, 1/4 - 2 in Bolt, 18-1/2 in Overall Length, 72-1/2 in Overall Width, Yes Reversing, Reverse/Off/Forward, Heavy Duty Rotary-Type and Integral Foot Switch Control, Dimensions: 1/4 - 4 in NPT
| Amperage Rating | : | 15 A |
| Control Type | : | Reverse/Off/Forward, Heavy Duty Rotary-Type and Integral Foot Switch |
| Dimensions | : | 1/4 - 4 in NPT |
| Series | : | Model 1224 |
| Pipe Capacity | : | 1/4 - 2 in (6 - 100 mm) at 36 rpm, 2-1/2 - 4 rpm (65 - 100 mm) at 12 RPM, 4 - 6 in (100 - 150 mm) with 161 Geared Threader |
| Overall Length | : | 18-1/2 in |
| Overall Width | : | 72-1/2 in |
| Bolt Size | : | 1/4 - 2 in |
| Voltage Rating | : | 120 VAC |
| Horsepower | : | 1-1/2 hp |
| Speed | : | 36/12 rpm |
| Reversing | : | Yes |
- An induction motor helps minimize noise
- A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
- 1/4-2 in Universal Die Head, 2-1/2 - 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
- Constant and proper lubrication of dies and workpiece with through-head oiling
- 1 Phase
