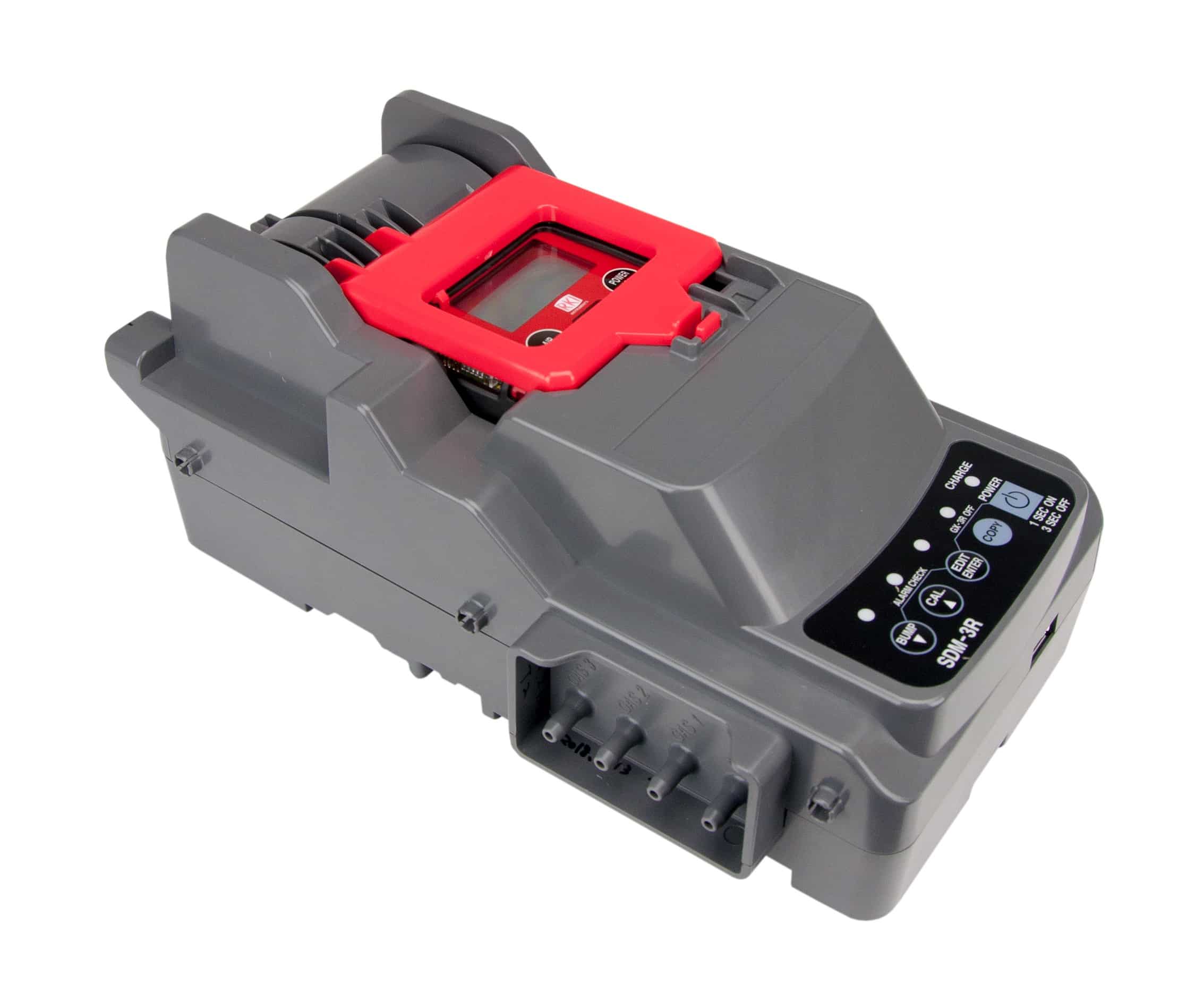

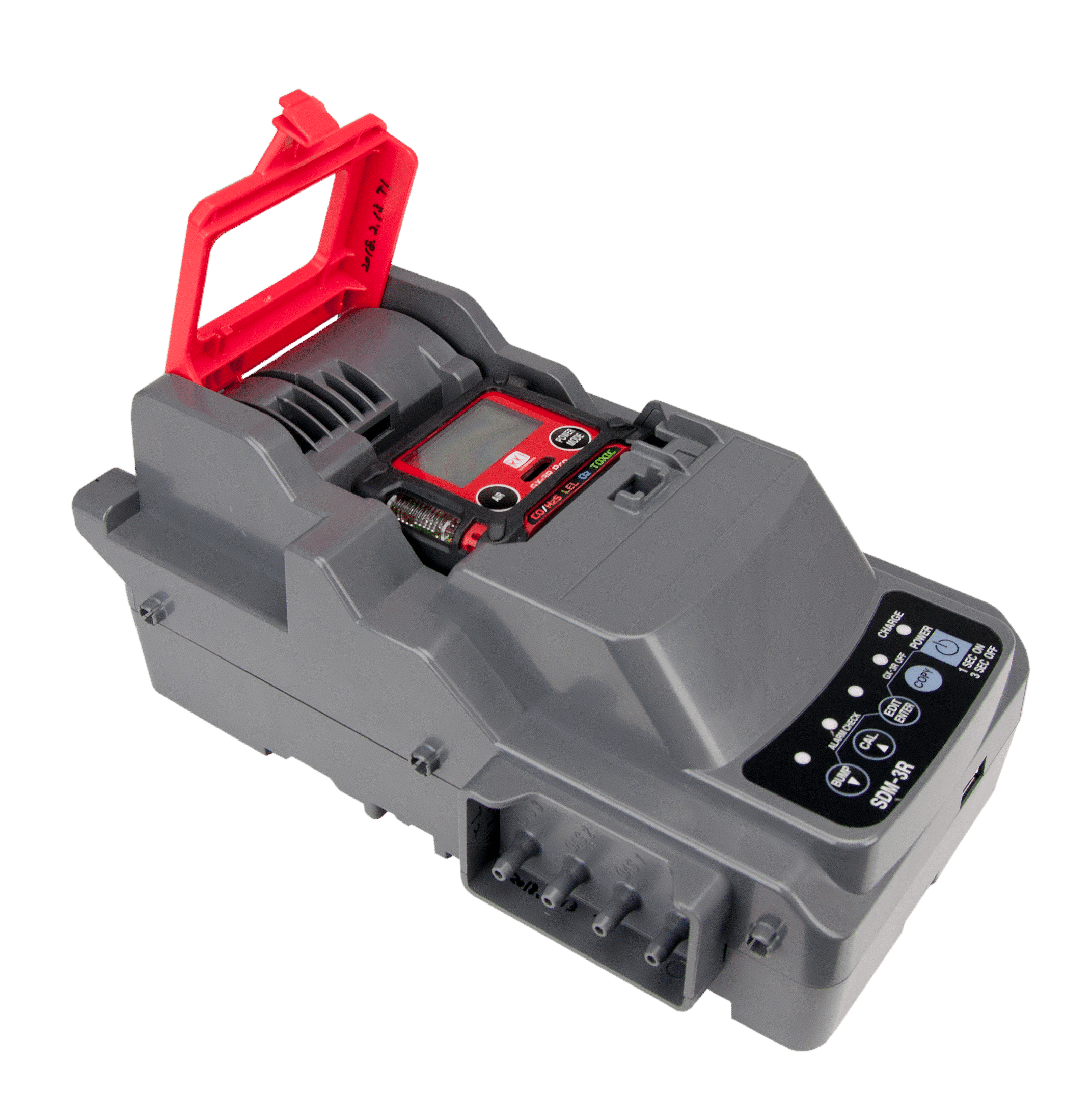

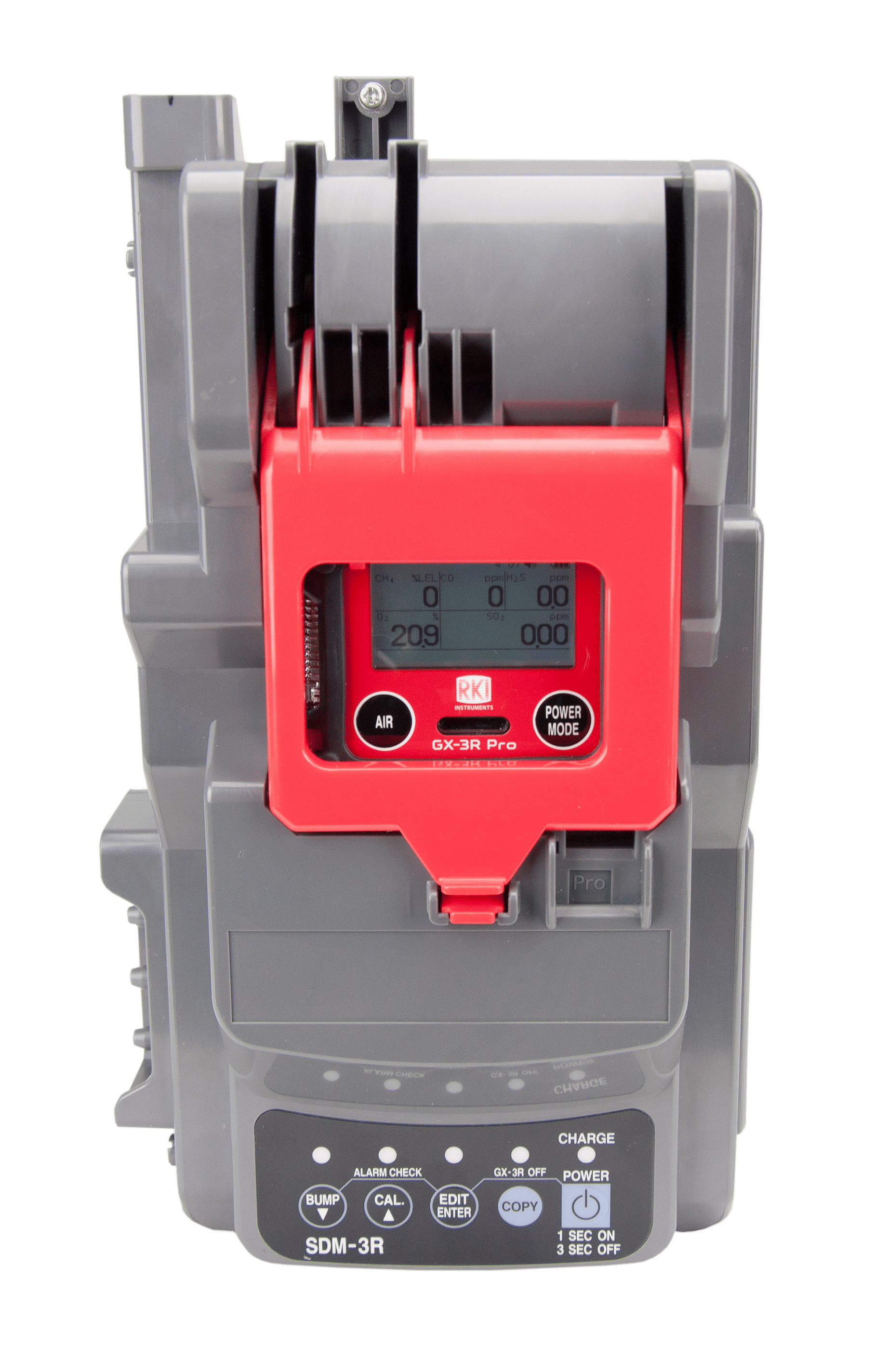

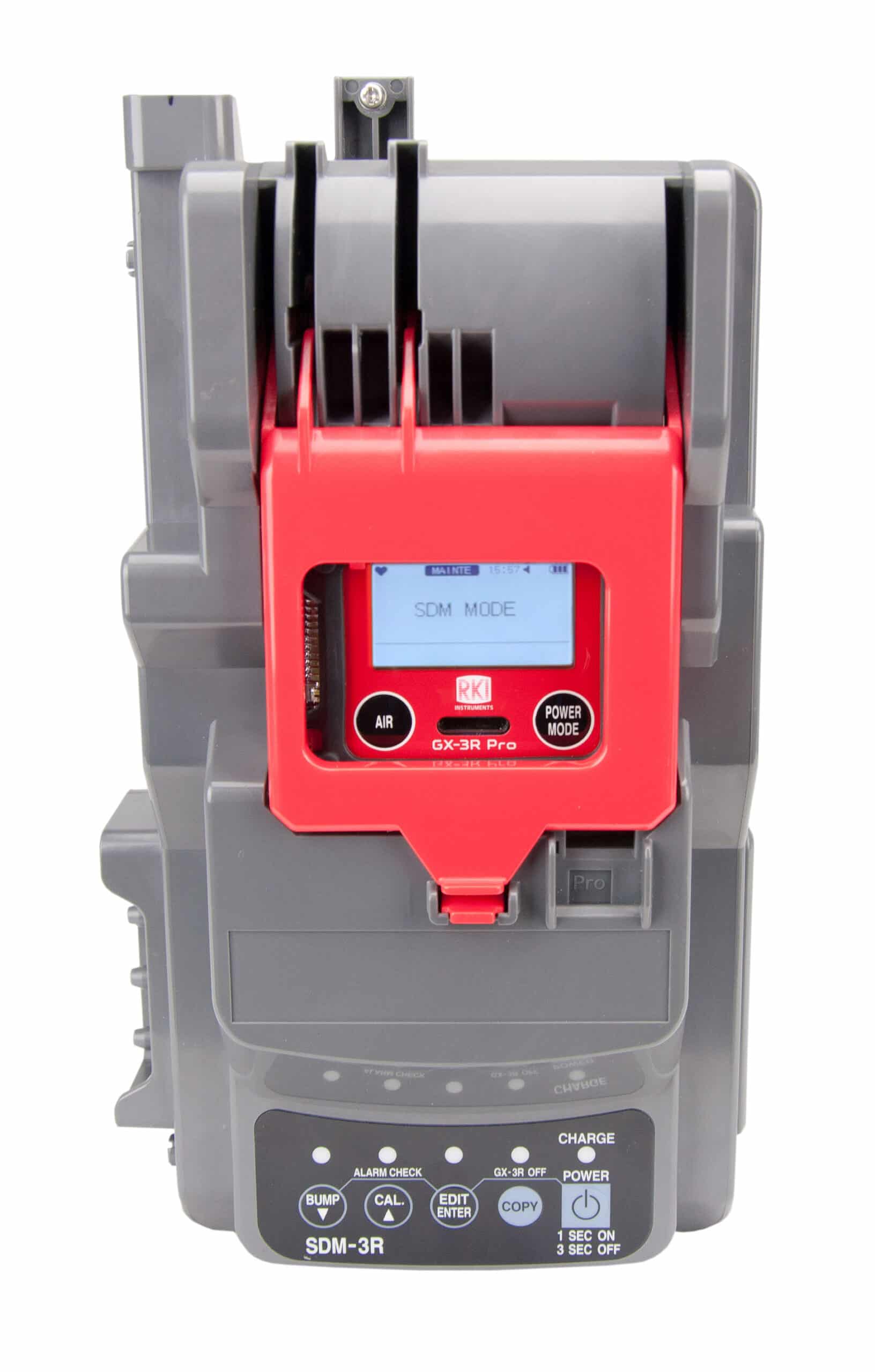

RKI Instruments 81-SDM3R103 SDM-3R Docking and Calibration Station with 1 Cylinder Inputs, 100 - 240 VAC, For GX-3R Gas Detector
- Manufacturers: RKI Instruments
- Brand Name: RKI
- ITEM CODE: RKIIN-81SDM3R103
- Mfr Part: 81-SDM3R103
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
RKI 81-SDM3R103
DESCRIPTION
Docking and Calibration Station with 1 Cylinder Inputs, Series: SDM-3R, Carbon Monoxide (CO), Hydrogen sulfide (H2S), Oxygen (O2), Methane (CH4), For Use With: GX-3R Gas Detector, 100 - 240 VAC, 0 to 40 deg F
| Series | : | SDM-3R |
| Temperature Range | : | 0 to 40 deg F |
| Voltage Rating | : | 100 - 240 VAC |
| Gas Type | : | Carbon Monoxide (CO), Hydrogen sulfide (H2S), Oxygen (O2), Methane (CH4) |
| Suitable For Use With | : | GX-3R Gas Detector |
- Compatible with both GX-3R and GX-3R Pro
- Automatically charge, bump test, and/or calibrate
- Auto on/off of gas detector
- 3 separate gas inputs
- Multiple modules (10 max) can use one set of calibration equipment
- Save Bump Test, Calibration and Alarm Check records to USB flash drive, computer or network
- Includes PC software for viewing/archiving bump test, calibration records and event data
- Multiple modules connected to a PC (10 max)
- Automatic calibration/bump test option
- Configure GX-3R (Pro) parameters
- Archive Bump Test, Calibration and Alarm Check
- Archive data to network location
- Software controlled data retrieval
- Windows 7, 8 and 10 compatible

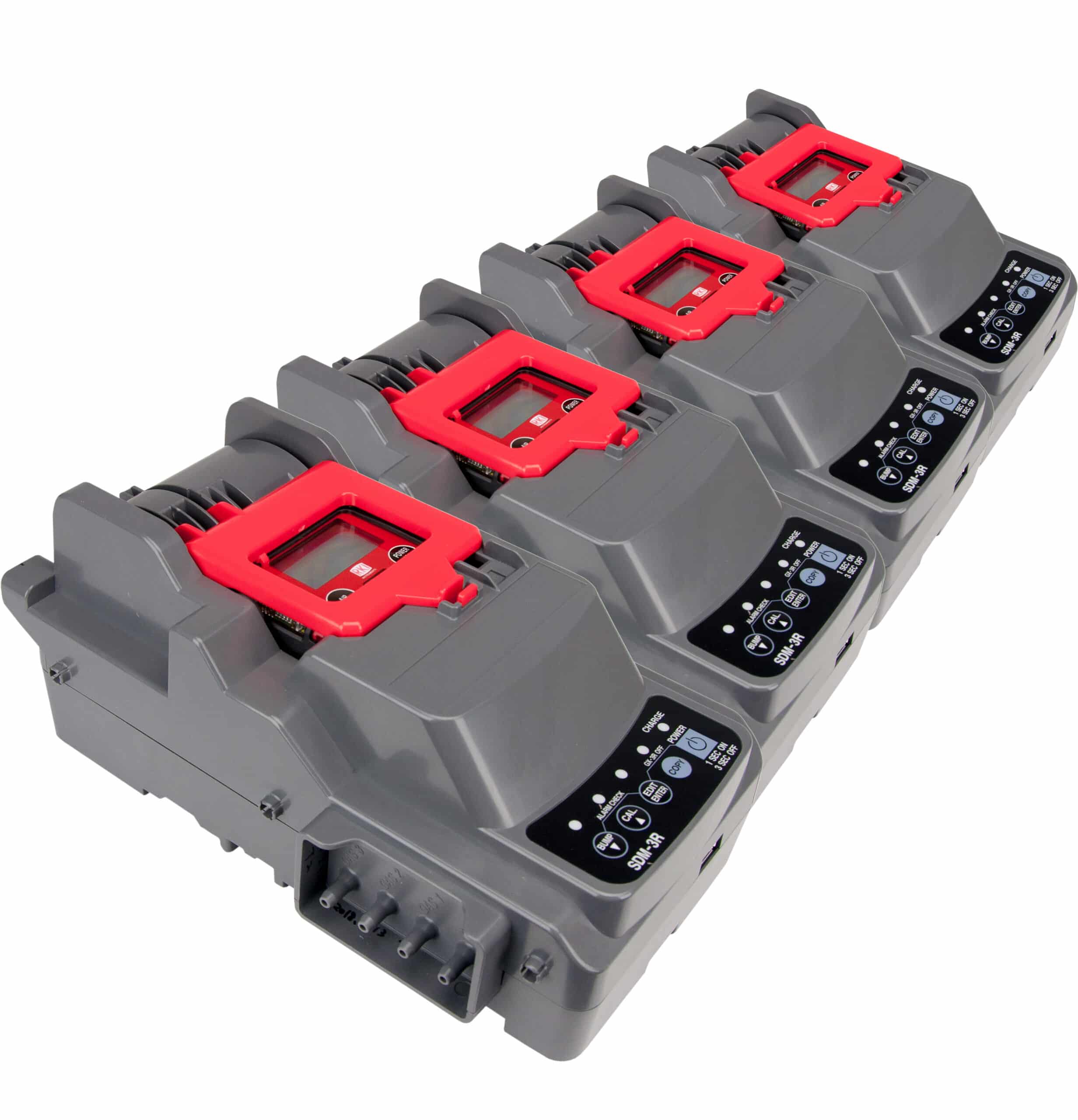

- Modular Design for connecting up to 10 modules with easy snap together assembly using only one set of calibration equipment
- 5 Ports: 3 Calibration gas, 1 fresh air and 1 exhaust
- Maximum Number of Records Saved - Stand Alone: 200 calibrations or 214 bump test or 469 alarm check records, PC program Controlled: Unlimited records
- Input Power - AC Adapter with 100 – 240 VAC, 47-63 Hz, 0.4A input and 5.99 VDC, 2A output provided as standard
