UltraTech 1125
  • https://assets.unilogcorp.com/105/ITEM/DOC/SPILL-1125.pdf

UltraTech 1125 Ultra-Modular IBC Spill Pallet, 2-Tank Model, 9000 lbs, 280 gal, Polyethylene, Yellow/Black

  • ITEM CODE: ULTEC-1125
  • UPC: 808416011258

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

UltraTech 1125

DESCRIPTION

Storing multiple IBCs, totes or tanks can take up a lot of room, and a lot of money. But with the Modular IBC Spill Pallets, it can take up less of both. By connecting the containment sumps and sharing walls, these units offer an economical solution that takes up a relatively small amount of space.


UltraTech Ultra-Modular IBC Spill Pallet, 2-Tank Model, 9000 lbs Load Capacity, 280 gal Spill Capacity, 8.75 in Height, 186 in Length, 62 in Width, Polyethylene, Yellow/Black

APPLICATIONS

For Multiple IBC Tanks, Indoor/Outdoor Use

SPECIFICATIONS

FEATURES

  • Each IBC tank sits on a heavy-duty spill pallet with a capacity of 9,000 lb UDL
  • Each of the low profile spill pallets has a containment capacity of 75 gals and measures 62" x 62" x 8.75"H
  • Any number of the modular spill pallets can be connected together with bulkhead fittings. Two (2) bulkhead fittings are used to connect one pallet to the next
  • To increase containment capacity, a 65 gal capacity Expansion Tank is available
  • "Flow-through" bulkhead fittings (1.25-inch diameter) are used to connect spill pallets and Expansion Tanks together

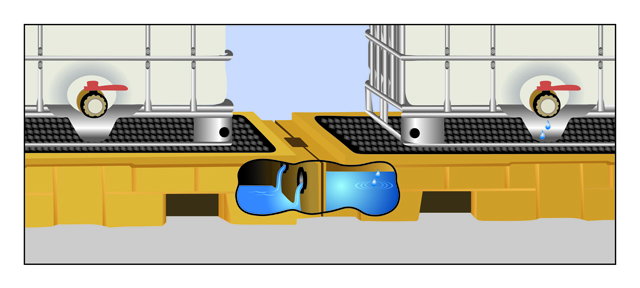

  • Bulkhead fittings allow spills to be channeled throughout the containment system, thereby "borrowing" containment capacity from adjacent spill pallets and Expansion Tanks
  • Constructed of 100% polyethylene, eliminating the potential for rust and corrosion. They offer excellent chemical resistance to a broad range of chemicals including acids, solvents and oils

CERTIFICATIONS/STANDARDS

  • 40 CFR 264.175, EPA, LEED, SPCC

REFERENCES

  • pdf Datasheet https://assets.unilogcorp.com/105/ITEM/DOC/SPILL-1125.pdf
