Drillco 400N112
  • https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/DRIDI-1000C140.pdf

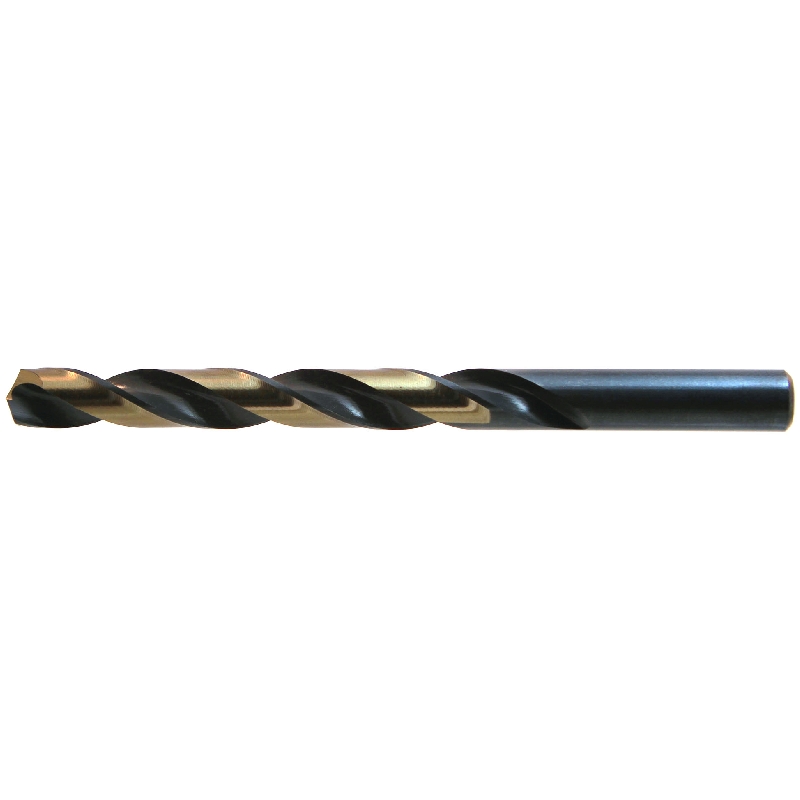

Drillco 400N112 400N Series Heavy Duty Jobber Length Drill Bit, 3/16 in, High Speed Steel, Straight Shank

  • ITEM CODE: DRIDI-400N112
  • UPC: 045997093475

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

Drillco 400N112

DESCRIPTION

Nitro® drills (NAS Type B) offer superior performance over conventional HSS drills. Their Nitride treated, heavy-duty construction increases tool life and performance. 135 deg Split Point reduces walking at the drill point and makes these drills ideal for both hand held and CNC Operations. Black & Gold surface treatment for maximum lubricity. Usable in a wide range of materials including difficult to machine materials such as stainless steel. Jobber length for extra reach. Comes in bulk packaging. See table below for quantities.


Drillco Jobber Length Drill Bit, Heavy Duty, 400N Series, 3/16 in Drill - Fraction, 3-1/2 in Overall Length, 2 Flutes, Spiral Flute, 2-5/16 in Flute Length, Straight Shank, 135 deg Point Angle, Right Hand Cutting Direction, High Speed Steel, Black and Gold Oxide Finish, Applicable Materials: Stainless Steel and Other Hard Metals

SPECIFICATIONS

FEATURES

  • Heavy duty nitride surface treatment increases hardness for drilling stainless steel and other hard metals
  • High speed steel (HSS) provides hardness for wear resistance
  • Black and gold oxide finish resists corrosion and increases the hardness of the drill bit for additional wear resistance
  • Self centering 135 deg split point penetrates hard material without a pilot hole and produces small chips to reduce clogging

REFERENCES

  • pdf FILE https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/DRIDI-1000C140.pdf
