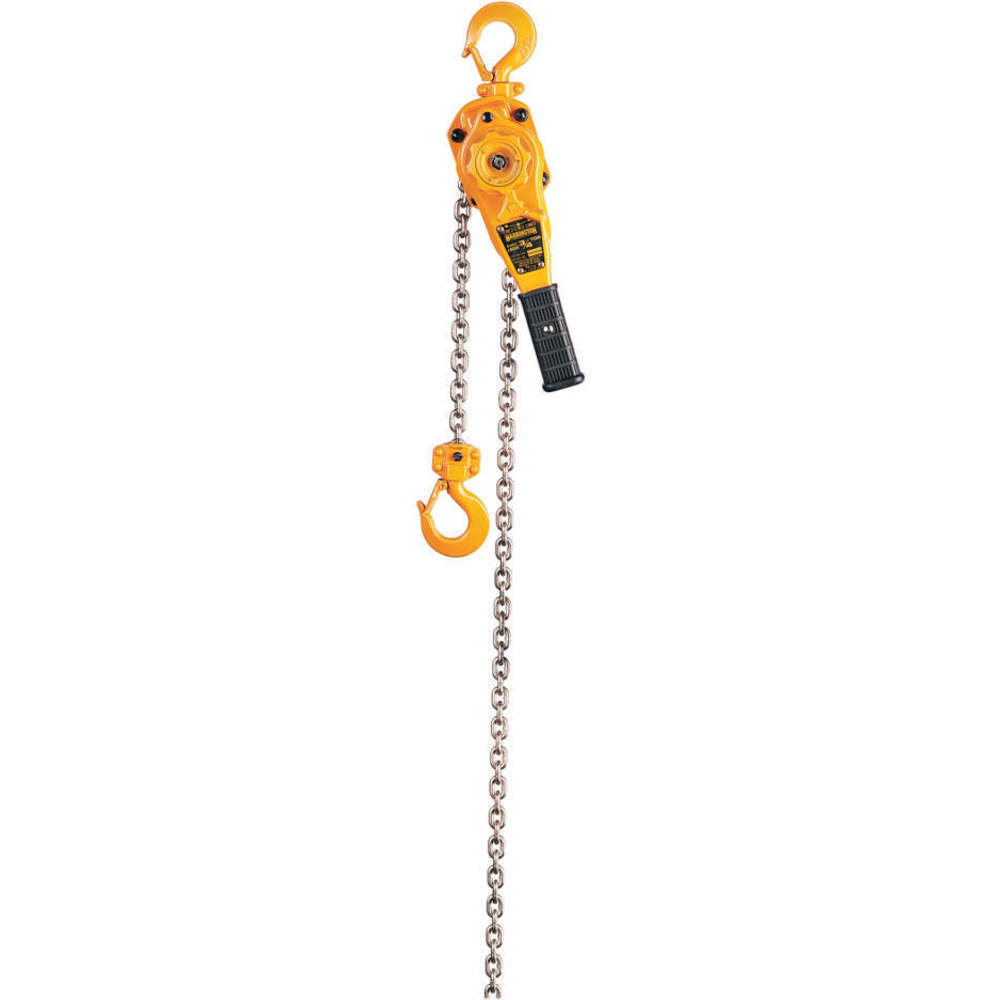

HARRINGTON LB008-15 LB Series Lever Chain Hoist, 3/4 Ton, 15 ft, 7/8 in
- Manufacturers: Harrington Hoists
- Brand Name: HARRINGTON
- ITEM CODE: HARRI-LB00815
- Mfr Part: LB008-15
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
HARRINGTON LB008-15
DESCRIPTION
The LB Series of lever hoists offers a low headroom, compact design that is perfect for use in tight quarters. Regarded as the best lever hoist in the industry, our LB is recommended for use in heavy-duty construction work, mining, manufacturing, shipbuilding and day-to-day maintenance and repair.
HARRINGTON Lever Chain Hoist, LB Series, 3/4 Ton Load Capacity, 15 ft Lifting Height, 11 in Minimum Between Hooks, 7/8 in Hook Opening, 54 lb Pull to Lift Rated Load, 9-5/8 in Lever Length, 16 ft Chain Length, Manganese Chain, 1 Reeving, Weston Style Load Brake
| Brake Type | : | Weston Style Load Brake |
| Chain Material | : | Manganese |
| Lever Length | : | 9-5/8 in |
| Minimum Between Hooks | : | 11 in |
| Reeving | : | 1 |
| Series | : | LB |
| Load Capacity | : | 3/4 Ton |
| Lifting Height | : | 15 ft |
| Pull to Lift Rated Load | : | 54 lb |
| Chain Length | : | 16 ft |
| Hook Opening | : | 7/8 in |
- Rugged, all-steel construction that actually weighs less than comparable aluminum models
- Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces, includes two brake pawls for additional reliability
- Enjoy protection against dirt and moisture with a totally enclosed brake mechanism
- Ensure long life with machined, heat-treated, split load double reduction gears
- Operate in close quarters with short steel handle and 15-degree recovery strokes
- Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load
- Equipped with standard rubber grip for non-slip operation
- Powder-coated body is resistant to corrosion, chipping, fading and wear
- ANSI/ASME B30.21
