HARRINGTON LB008-10B
  • https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/HARRI-CF00510.pdf

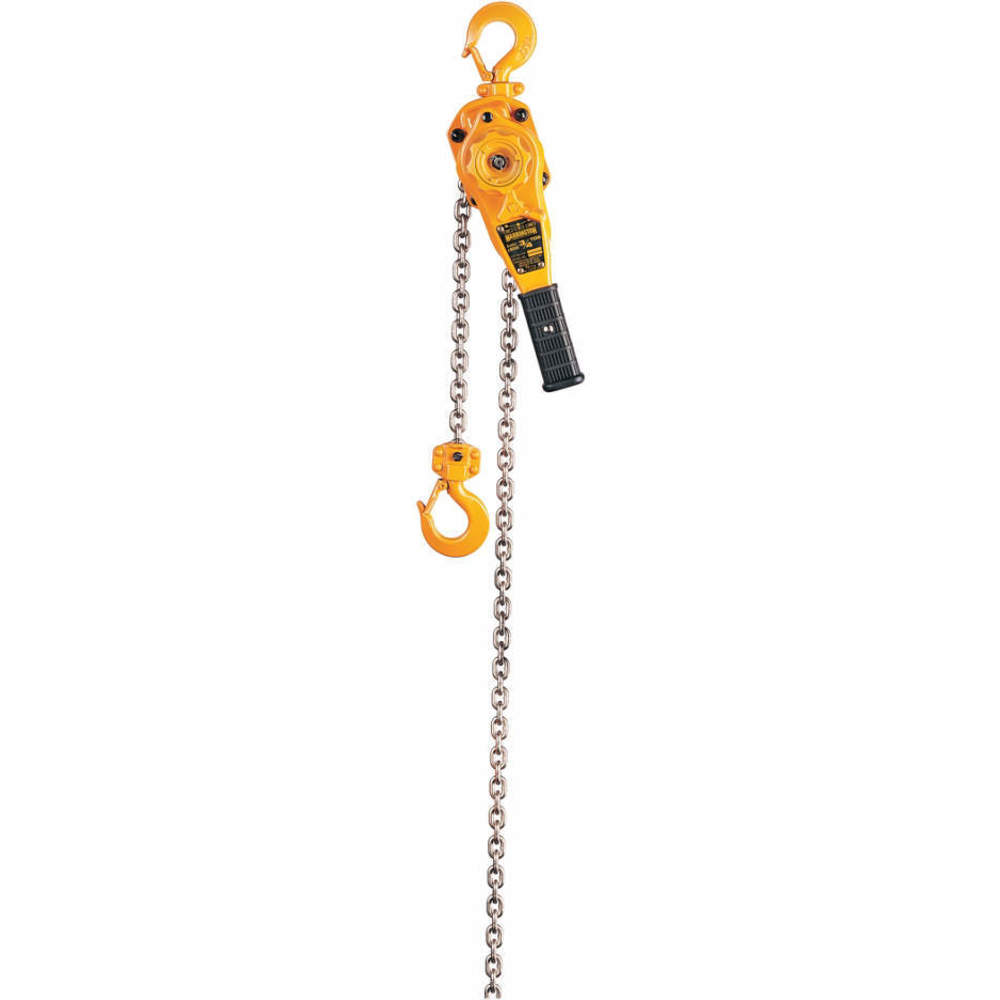

HARRINGTON LB008-10B LB Series Lever Chain Hoist with Free Chain Mode Disabled, 3/4 Ton, 10 ft, 7/8 in

  • ITEM CODE: HARRI-LB00810B

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

HARRINGTON LB008-10B

DESCRIPTION

The LB Series of lever hoists offers a low headroom, compact design that is perfect for use in tight quarters. Regarded as the best lever hoist in the industry, our LB is recommended for use in heavy-duty construction work, mining, manufacturing, shipbuilding and day-to-day maintenance and repair.


HARRINGTON Lever Chain Hoist with Free Chain Mode Disabled, LB Series, 3/4 Ton Load Capacity, 10 ft Lifting Height, 11 in Minimum Between Hooks, 7/8 in Hook Opening, 54 lb Pull to Lift Rated Load, 9-5/8 in Lever Length, 11 ft Chain Length, Manganese Chain, 1 Reeving, Weston Style Load Brake

SPECIFICATIONS

FEATURES

  • Rugged, all-steel construction that actually weighs less than comparable aluminum models
  • Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces, includes two brake pawls for additional reliability
  • Enjoy protection against dirt and moisture with a totally enclosed brake mechanism
  • Ensure long life with machined, heat-treated, split load double reduction gears
  • Operate in close quarters with short steel handle and 15-degree recovery strokes
  • Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load
  • Equipped with standard rubber grip for non-slip operation
  • Powder-coated body is resistant to corrosion, chipping, fading and wear

REFERENCES

  • pdf FILE https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/HARRI-CF00510.pdf
