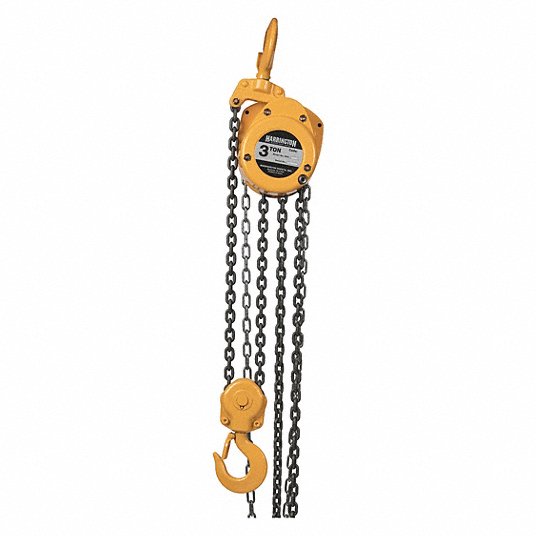

HARRINGTON CF030-20 CF Series Manual Chain Hoist, 3 Ton, 20 ft, 1-3/4 in
- Manufacturers: Harrington Hoists
- Brand Name: HARRINGTON
- ITEM CODE: HARRI-CF03020
- Mfr Part: CF030-20
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
HARRINGTON CF030-20
DESCRIPTION
Harrington CF hand chain hoists give you a practical alternative thanks to an economical design using fewer parts for trouble-free service. Outstanding durability is due to a die-cast aluminum body and high-strength, heat-treated main pinion shaft and load gear. Pre-lubricated ball bearings, precision machined gears, and Weston-style load brake make lifting smooth and easy while allowing long service and low maintenance.
HARRINGTON Manual Chain Hoist, CF Series, 3 Ton Load Capacity, 20 ft Lifting Height, 23-1/4 in Minimum Between Hooks, 1-3/4 in Hook Opening, 92 lb Pull to Lift Rated Load, 23-1/4 in L x 9-1/2 in W x 6 in D Dimensions
| Dimensions | : | 23-1/4 in L x 9-1/2 in W x 6 in D |
| Series | : | CF |
| Load Capacity | : | 3 Ton |
| Lifting Height | : | 20 ft |
| Minimum Between Hooks | : | 23-1/4 in |
| Hook Opening | : | 1-3/4 in |
| Pull to Lift Rated Load | : | 92 lb |
- Experience exceptional strength with a thick die-cast aluminum body
- Handle tough demands with high-strength, heat-treated main pinion shaft and load gear
- Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
- Minimize manual effort thanks to smooth running, pre-lubricated ball bearings, and precision machined drive train components
- Simplify maintenance with fewer parts and an easy-to-work-on design
- ANSI/ASME B30.16
