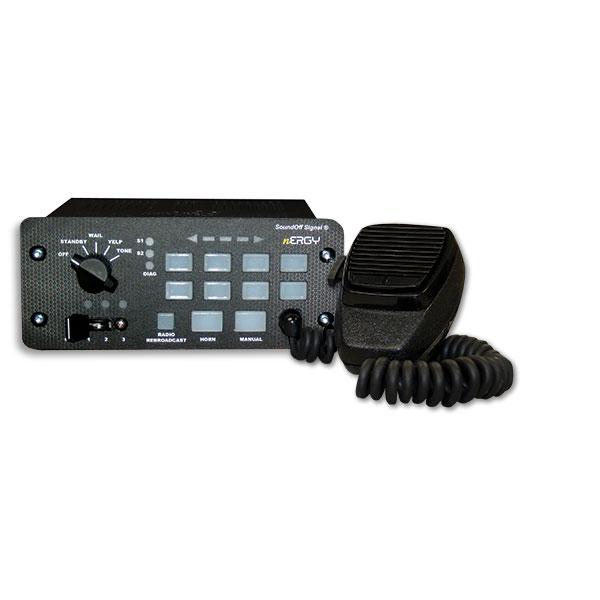

Soundoff Signal ETSA482CSR nERGY® 400 Series Multi-Function Siren with Knob Control, 200 W, 13 Sound Level, 675 - 1633 Hz Siren/500 - 3 kHz Audio
- Manufacturers: Soundoff Signal
- Brand Name: Soundoff Signal
- ITEM CODE: SOUSI-ETSA482CSR
- Mfr Part: ETSA482CSR
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Soundoff Signal ETSA482CSR
DESCRIPTION
Soundoff Signal nERGY® 400 Series Multi-Function Siren with Knob Control, 10 - 16 Vdc, 200 W, 675 - 1633 Hz Siren/500 - 3 kHz Audio Frequency, 3.51 in Control Panel X 7 in Amplifier/Relay Width, 1.17 in Control Panel X 6.51 in Amplifier/Relay Depth, 6.89 in Control Panel X 2.62 in Amplifier/Relay Height, -40 - 50 deg C, 13 Sound Level
| Frequency Rating | : | 675 - 1633 Hz Siren/500 - 3 kHz Audio |
| Series | : | 400 |
| Sound Level | : | 13 |
| Temperature Range | : | -40 - 50 deg C |
| Voltage Rating | : | 10 - 16 Vdc |
| Wattage | : | 200 W |
| Height | : | 6.89 in Control Panel X 2.62 in Amplifier/Relay |
| Width | : | 3.51 in Control Panel X 7 in Amplifier/Relay |
| Depth | : | 1.17 in Control Panel X 6.51 in Amplifier/Relay |
- onsole Sirens feature eight auxiliary buttons for one-touch programming and a three-position slide switch to allow convenient switching for the most frequently used warning modes
- Features an 8-second buzzer alert to notify users that the level or auxiliary buttons are activated
- Horn ring scroll provides ability to quickly change tones with the tap of the horn
- Provides up to 9-10 amp and 3-20 amp outputs with internal fuses for powering solenoids (i.e. gunlock) or supplying power and signaling to other onboard peripherals (printer, radar, GPS, etc.)
- Built-in protection against over/under voltage, short circuit and reverse polarity
- New switch panel graphics integrate with the interiors of newly designed vehicles
- Cabling setup is the same as 380R Siren Series allowing for easy swap-in
- Dimmable red LED backlighting
- 7.1 in Width X 2.72 in Height Cut-out
- CA Title 13 Compliant
