Soundoff Signal EWLB1000DBDS0W
  • https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/CHIEFEL3D02A00A.pdf
  • https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/CHIEFEWLA0500DBDF0W.pdf

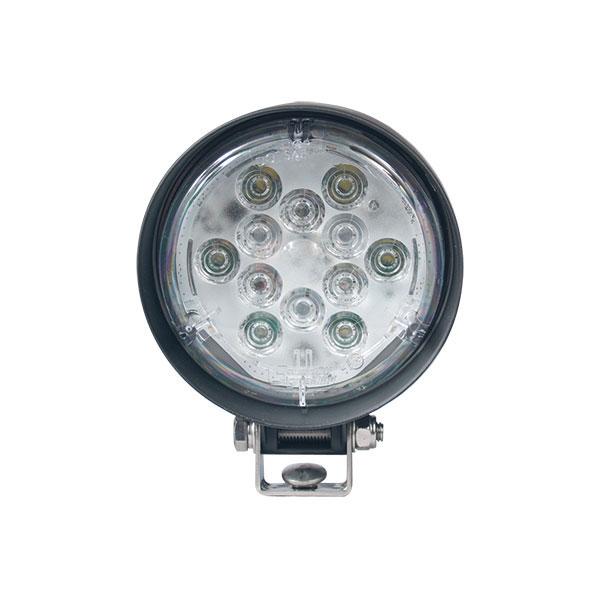

Soundoff Signal EWLB1000DBDS0W 1000 Lumen Par 36 LED Work Light, Spot Light Output, 10 - 16 V, 1.66 A @ 12.8 Vdc, Surface Mounting

  • ITEM CODE: SOUSI-EWLB1000DBDS0W
  • UPC: 846770001539

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

Soundoff Signal EWLB1000DBDS0W

DESCRIPTION


Soundoff Signal 1000 Lumen Par 36 LED Work Light, LED Lamp, Spot Light Output, 10 - 16 V, 1.66 A @ 12.8 Vdc, Surface Mounting, 2.8 in Diameter X 4.5 in Width X 5.7 in Height

SPECIFICATIONS

FEATURES

  • Protection against reverse polarity and load dump
  • LEDs offer better energy efficiency - uses 75% less energy than sealed beams
  • Visual clarity - crystal clear polycarbonate lenses with extremely bright, white LEDs illuminate the darkest work areas
  • Lasts for years with 50 times the lifespan of sealed beam halogens and 10 times that of HID bulbs (30,000+ hours of use)
  • Illumination Patterns Flood 40 deg Horizontal x 25 deg Vertical, Spot 10 deg or Trapezoid: 40 deg Horizontal x 15 deg Vertical
  • LED Count 6 LEDs Technology
  • Color Temperature 5700k
  • Operating Temperature -40 to 65 deg C

CERTIFICATIONS/STANDARDS

  • SAE DOT Lens Marking

REFERENCES

  • pdf FILE https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/CHIEFEL3D02A00A.pdf
  • pdf FILE https://www.mallory.com//ASSETS/DOCUMENTS/ITEMS/EN/CHIEFEWLA0500DBDF0W.pdf
