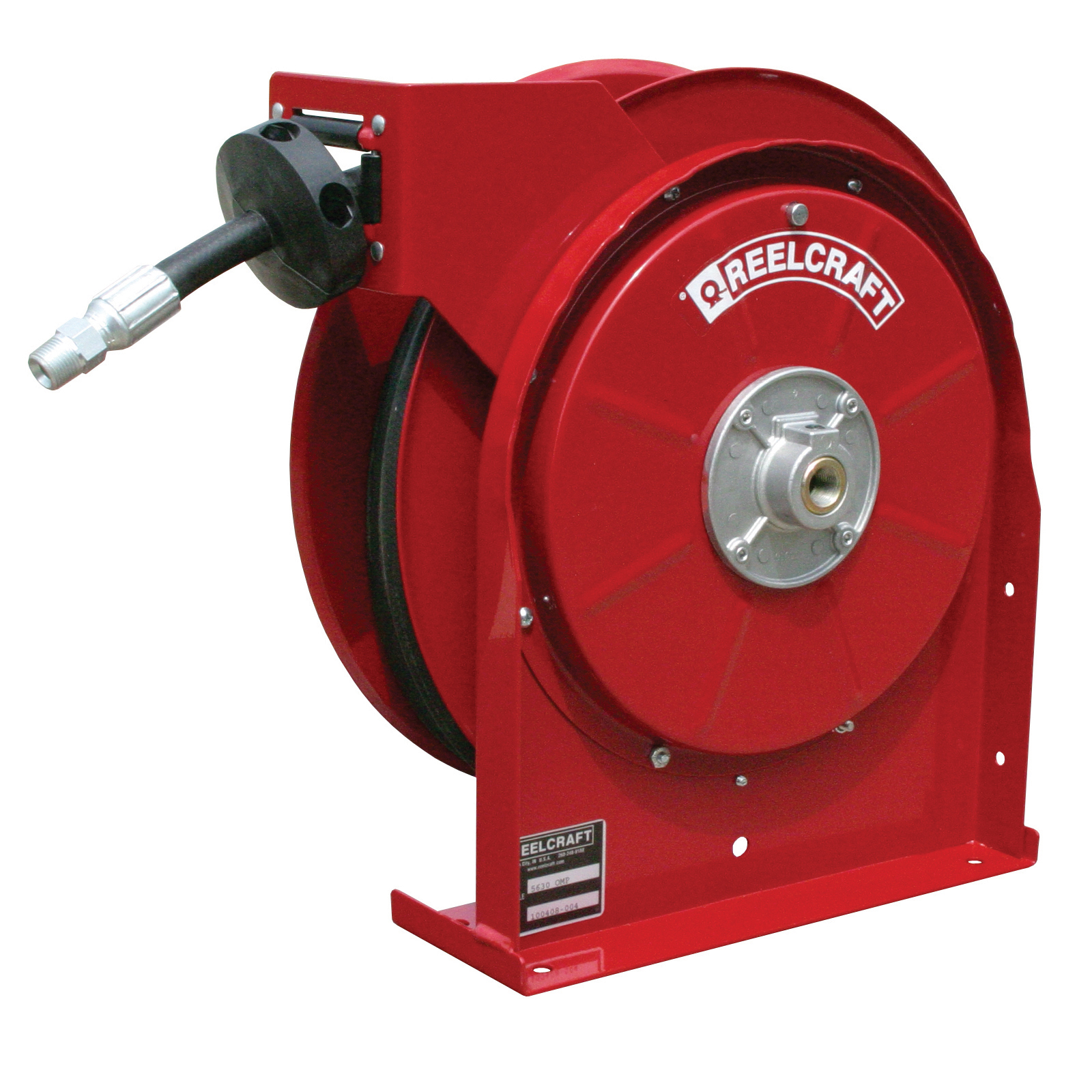

Reelcraft® A5850 OLP 5005 Low Pressure Premium Duty Hose Reel With Hose, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Dia x 2-1/2 in W Reel, Domestic
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- ITEM CODE: REELC-A5850OLP
- Mfr Part: A5850 OLP
- UPC: 699567001119
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
Reelcraft® A5850 OLP
DESCRIPTION
Series 4000, 5000 and 5005 reels are all steel construction and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. Guide arm adjusts to two positions.
Reelcraft® Hose Reel, Low Pressure Premium Duty, Series: 5005, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Reel Diameter, 2-1/2 in Reel Width, Retractable Spring Drive, Ceiling/Floor/Truck Bed/Wall Mounting, Nickel Plated Steel Swivel, Buna-N Seal, 17-5/8 in H x 16-1/2 in W x 7-1/4 in D Dimensions, Reinforced Stainless Steel, Powder Coated, Red, Domestic
APPLICATIONS
Air and Water Applications
| Color | : | Red |
| Dimensions | : | 17-5/8 in H x 16-1/2 in W x 7-1/4 in D |
| Drive Type | : | Retractable Spring |
| Finish | : | Powder Coated |
| Material | : | Reinforced Stainless Steel |
| Mounting Type | : | Ceiling/Floor/Truck Bed/Wall |
| Seal Type | : | Buna-N |
| Series | : | 5005 |
| Swivel Material | : | Nickel Plated Steel |
| Type | : | Low Pressure Premium Duty |
| Hose Capacity | : | 1/2 in ID x 3/4 in OD x 50 ft L |
| Pressure Rating | : | 300 psi |
| Reel Diameter | : | 16-1/2 in |
| Reel Width | : | 2-1/2 in |
| Domestic/Import | : | Domestic |
- Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
- All steel components are powder coated for maximum corrosion resistance
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quiet speed latch - the latch cam is designed for reliable quiet operation
- 1/2 in MNPT hose outlet
- 3/8 in FNPT reel inlet
- 150 deg F maximum temperature rating
- PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
