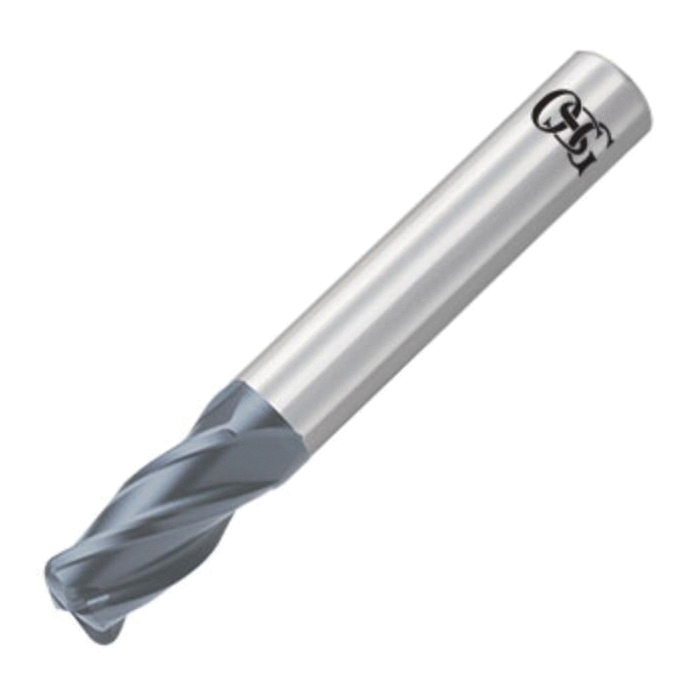

EXOCARB® CR-EMS 36700911 Center Cutting High Performance Premium Regular Length Single End Corner Radius End Mill, 5/32 in Dia Cutter, 0.03 in Corner Radius, 9/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, WXL® Coated
- Manufacturers: OSG
- Brand Name: EXOCARB®
- ITEM CODE: OSGTA-36700911
- Mfr Part: 36700911
- UPC: 690870628062
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
DESCRIPTION
EXOCARB® WXL® end mills are the new industry standard for hard milling. Everything about WXL is designed for rigidity and performance in wide variety of materials and a wide variety of milling applications. Substrates, geometry and proprietary WXL coating are all specifically tailored for non-ferrous materials, mild steels and steels up to 50 HRC.
EXOCARB® CR-EMS Corner Radius End Mill, Center Cutting High Performance Premium Regular Length Single End, Series: 3670, 5/32 in Cutter Dia, 0.03 in Corner Radius, 2 in Overall Length, 9/16 in Length of Cut, 4 Flutes, Spiral Flute, 3/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Shrink Fit Shank, Carbide, WXL® Coated
APPLICATIONS
For used to cut and contour molds for plastic parts, which include electric home appliances, die-casting dies for automotive parts, stamping molds, for pre-hardened and hardened steels
| Cutting Direction | : | Right Hand |
| Flute Type | : | Spiral |
| Helix Angle | : | 30 deg |
| Material | : | Carbide |
| Series | : | 3670 |
| Shank Type | : | Shrink Fit |
| Type | : | Center Cutting High Performance Premium Regular Length Single End |
| Cutter Diameter | : | 5/32 in |
| Corner Radius | : | 0.03 in |
| Length of Cut | : | 9/16 in |
| Number of Flutes | : | 4 |
| Shank Diameter | : | 3/16 in |
| Overall Length | : | 2 in |
| Finish | : | WXL® Coated |
- Ultra fine micrograin carbide the hardest most wear-resistant carbide possible for incredible wear resistance
- High precision geometry all corner radius end mills have +/-5 um radius tolerance high accuracy all but eliminates need for benching and rework for mold makers
- High strength core diameter tools utilize thicker core diameters for the ultimate in strength and rigidity
- WXL coating - +1100 deg C oxidation temperature and +3100 Hv in hardness higher coating oxidation temperature and hardness dramatically improve wear resistance
- PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
