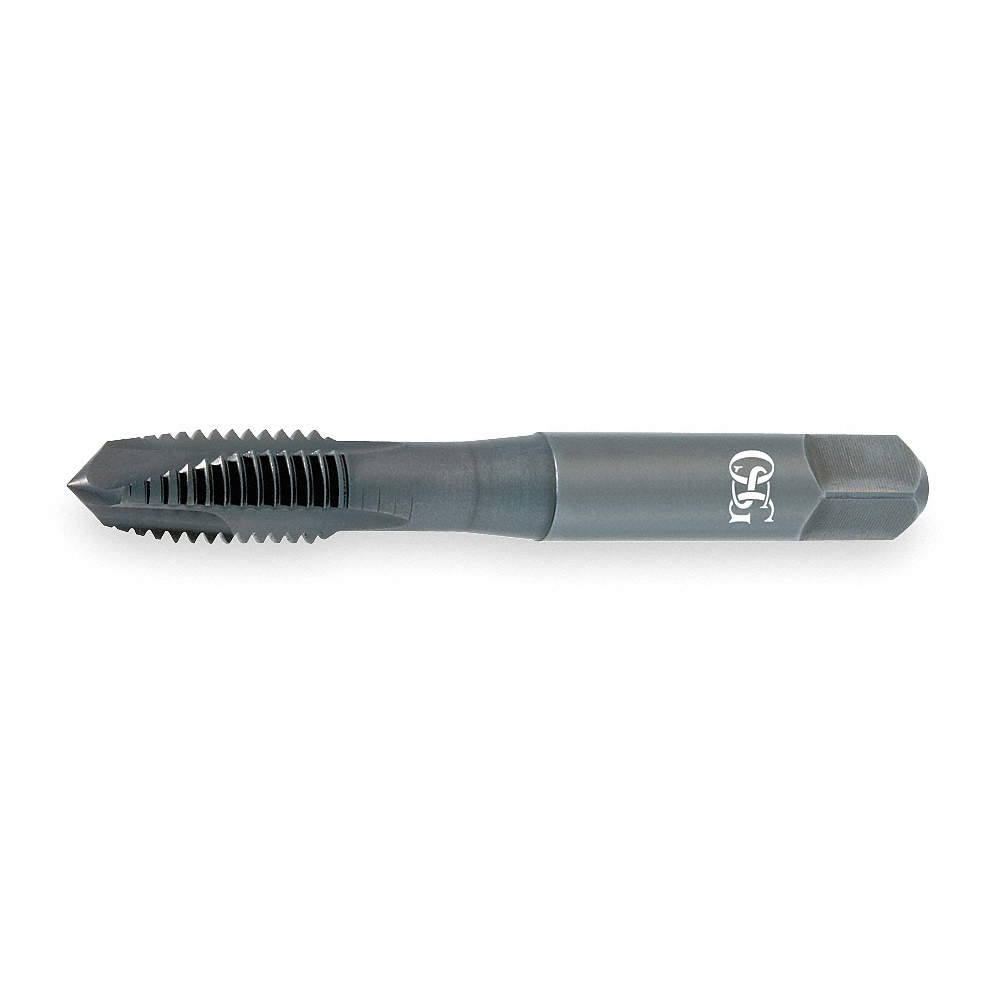

HY-PRO® 2818008 280 Series Spiral Point Tap, #8-32 UNC, Plug Chamfer, H7 Thread Limit, 3 Flutes
- Manufacturers: OSG
- Brand Name: HY-PRO®
- ITEM CODE: OSGTA-2818008
- Mfr Part: 2818008
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
HY-PRO® 2818008
DESCRIPTION
Premium taps made from vanadium high speed steel and designed for a wide range of applications and industries.
HY-PRO® 280 Series Spiral Point Tap, Imperial, #8-32 UNC, Plug Chamfer, 3 Flutes, HSS-E, TiCN, Right Hand Cutting Direction, 3/4 in Thread Length, 2-1/8 in Overall Length, 0.168 in Shank Diameter, Application Materials Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel, H7 Thread Limit, No Through Coolant
| Measurement System | : | Imperial |
| Overall Length | : | 2-1/8 in |
| Series | : | 280 |
| Shank Diameter | : | 0.168 in |
| Thread Length | : | 3/4 in |
| Thread Standard | : | UNC |
| Cutting Direction | : | Right Hand |
| Thread Size | : | #8-32 |
| Thread Limit | : | H7 |
| Chamfer Type | : | Plug |
| Number of Flutes | : | 3 |
| Finish/Coating | : | TiCN |
| Material | : | HSS-E |
| Material Application | : | Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel |
| Through Coolant (Yes/No) | : | No |
