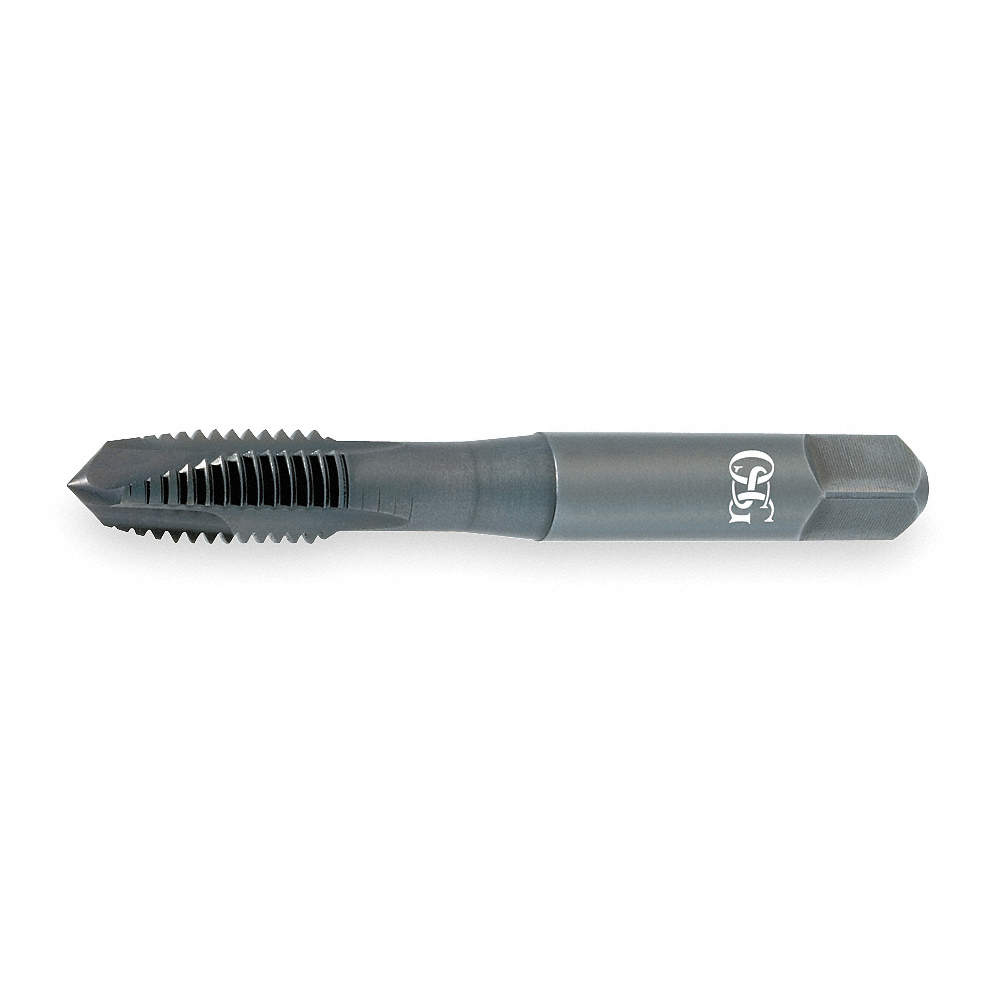

HY-PRO® 2806401 280 Series Spiral Point Tap, #4-40 UNC, Plug Chamfer, H2 Thread Limit, 2 Flutes
- Manufacturers: OSG
- Brand Name: HY-PRO®
- ITEM CODE: OSGTA-2806401
- Mfr Part: 2806401
- UPC: 690870041137
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
HY-PRO® 2806401
DESCRIPTION
Premium taps made from vanadium high speed steel and designed for a wide range of applications and industries.
HY-PRO® 280 Series Spiral Point Tap, Imperial, #4-40 UNC, Plug Chamfer, 2 Flutes, HSS-E, Steam Oxide, Right Hand Cutting Direction, 9/16 in Thread Length, 1-7/8 in Overall Length, 0.141 in Shank Diameter, Application Materials Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel, H2 Thread Limit, No Through Coolant
| Measurement System | : | Imperial |
| Overall Length | : | 1-7/8 in |
| Series | : | 280 |
| Shank Diameter | : | 0.141 in |
| Thread Length | : | 9/16 in |
| Thread Standard | : | UNC |
| Cutting Direction | : | Right Hand |
| Thread Size | : | #4-40 |
| Thread Limit | : | H2 |
| Chamfer Type | : | Plug |
| Number of Flutes | : | 2 |
| Finish/Coating | : | Steam Oxide |
| Material | : | HSS-E |
| Material Application | : | Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel |
| Through Coolant (Yes/No) | : | No |
