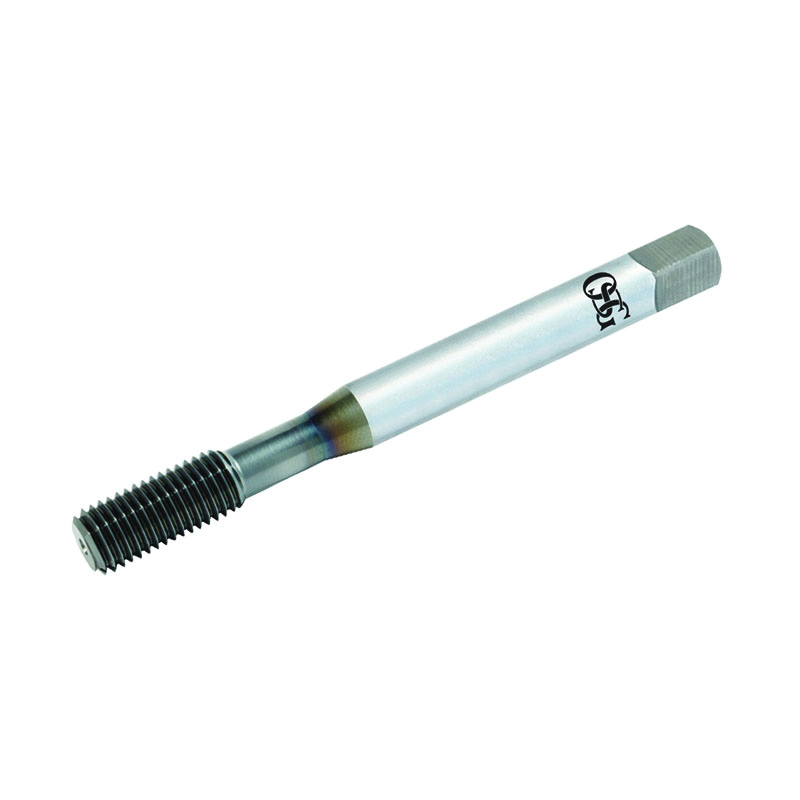

EXO® 1405004008 14050/VP-NRT High Performance Premium Thread Forming Tap, #8-32 Thread, H3 Thread Limit
- Manufacturers: OSG
- Brand Name: EXO®
- ITEM CODE: OSGTA-1405004008
- Mfr Part: 1405004008
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
EXO® 1405004008
DESCRIPTION
EXOTAP® NRT® taps high performance form taps for materials <32 HRC.
EXO® Thread Forming Tap, High Performance Premium, Series: 14050/VP-NRT, Measurement System: Imperial, #8-32, UNC, 1.5P Short Bottoming Chamfer, 0.4 in Thread Length, 2.12 in Overall Length, Class of Fit: 3B, 0.168 in Shank Dia, 0.1481 to 0.1513 in Tap Drill, 0.252 in L x 0.131 in W Square Size, VC-10, V-Coated, H3 Thread Limit
APPLICATIONS
For automobile engines application
| Chamfer Type | : | 1.5P Short Bottoming |
| Class of Fit | : | 3B |
| Finish/Coating | : | V-Coated |
| Material | : | VC-10 |
| Measurement System | : | Imperial |
| Overall Length | : | 2.12 in |
| Series | : | 14050/VP-NRT |
| Shank Diameter | : | 0.168 in |
| Square Size | : | 0.252 in L x 0.131 in W |
| Tap Drill Size | : | 0.1481 to 0.1513 in |
| Thread Length | : | 0.4 in |
| Thread Standard | : | UNC |
| Type | : | High Performance Premium |
| Thread Size | : | #8-32 |
| Thread Limit | : | H3 |
- Without through coolant
- REACH EU Regulation Article 33 No. 1907/2006
- RoHS Directive EU 2015/863
- WEEE 2002/96/EC
- PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
