Haws® AXION® 8320CRP MSR Combination Emergency Shower and Eye/Face Wash, ABS Eyewash Bowl, ABS Shower Head, Floor Mount, Pull Rod/Flag Push Handle Operation, ANSI Z358.1-2009, cCSAus Certified

  • ITEM CODE: HAWSD-8320CRP
  • UPC: 611970351377

  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Proposition 65: www.P65Warnings.ca.gov.

loading

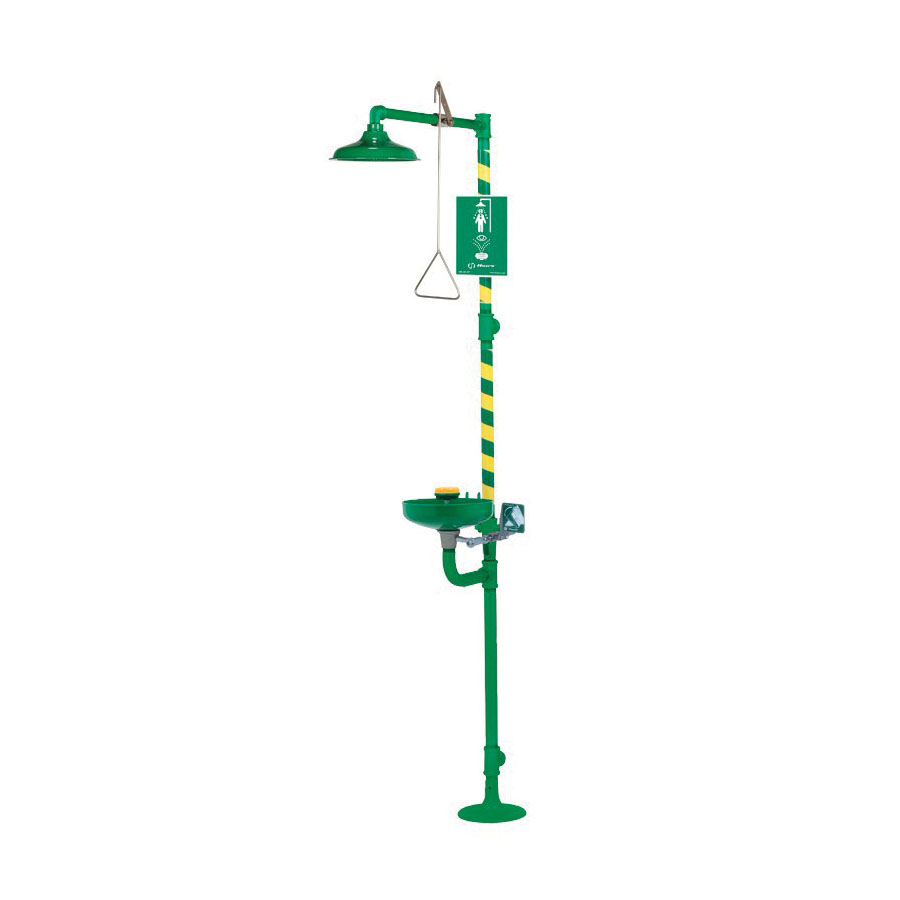

Haws® 8320CRP

DESCRIPTION

Model 8320CRP corrosion-resistant combination shower and eye face wash features the medically acclaimed AXION® MSR eye face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a medically superior response consistent with all EMT, emergency room and doctors office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain. AXION® MSR also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim of normal showerheads, making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets.


Haws® AXION® MSR Combination Emergency Shower and Eye/Face Wash, Steel Pipe, ABS Eyewash Bowl, ABS Shower Head, 11 in Diameter Head, 11 in Diameter Bowl, Floor Mounting, Specifications Met: ANSI Z358.1-2009, cCSAus Certified, Green/Yellow, Hot Dipped Galvanized, Steel Fitting, 89-1/4 in H, Pull Rod/Flag Push Handle Operation

APPLICATIONS

For quick drenching or flushing of the eyes

  • Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
  • AXION® MSR ABS plastic drench showerhead with flow control delivers dispersed flow for uniform drenching
  • Also features a stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris and ball valves with stainless steel ball and stem for durability
  • Pipe and fitting - 1-1/4 in SCH 40/STD hot-dipped galvanized steel with green corrosion resistant epoxy coating
  • Supply and waste - 1-1/4 in IPS
  • AXION® eye/face wash head
  • AXION® shower head
  • Corrosion resistant
  • Flow regulation
  • In-line strainer
  • Key components assembled
  • System certified
  • Upgraded ball valves
  • ANSI Z358.1
  • cCSAus Certified
  • Buy American Act Compliant
  • PROP65: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm
