Haws® AXION® 8300CRP-8309CRP MSR Combination Emergency Shower and Eye/Face Wash, Stainless Steel Eyewash Bowl, ABS Shower Head, Floor Mount, Pull Rod/Push Handle Operation, ANSI Z358.1-2009, cCSAus Certified

  • ITEM CODE: HAWSD-8300CRP8309CRP
  • UPC: 611970351636

  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Proposition 65: www.P65Warnings.ca.gov.

loading

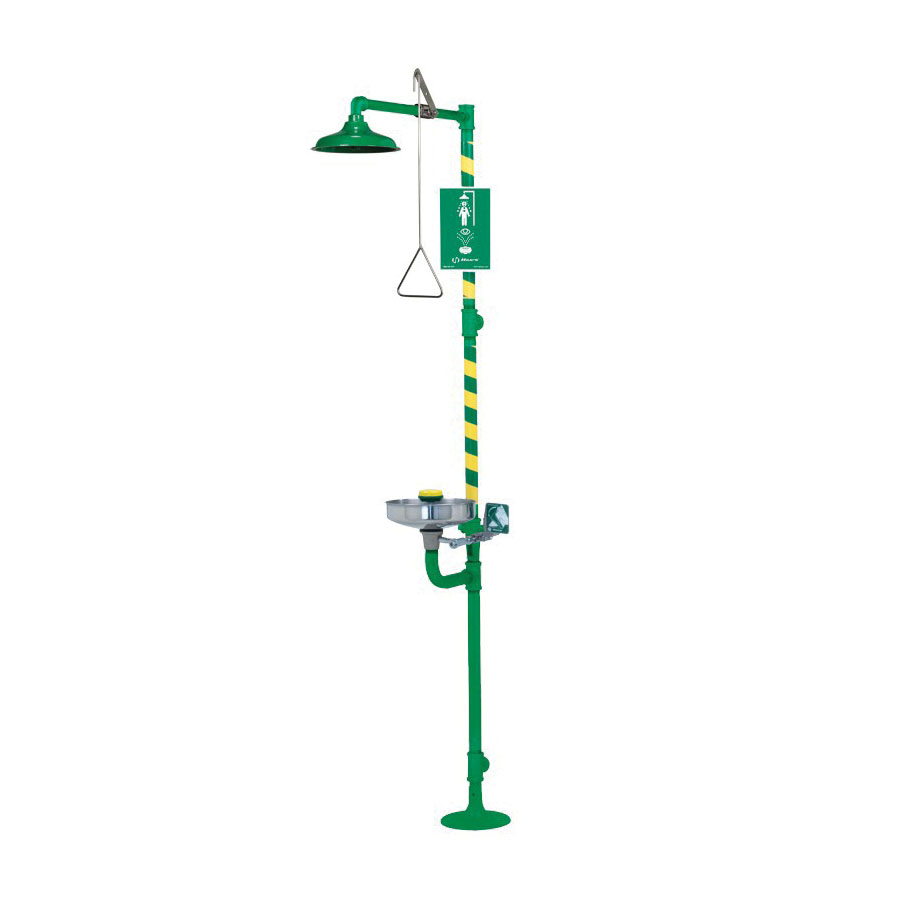

Haws® 8300CRP-8309CRP

DESCRIPTION

Model 8300CRP-8309CRP, corrosion-resistant, coated combination shower and eye face wash with AXION® MSR eye face wash and shower head model 8300CRP-8309CRP corrosion-resistant combination shower and eye face wash features the medically acclaimed AXION® MSR eye face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a medically superior response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain. AXION® MSR also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim of normal showerheads, making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets.


Haws® AXION® MSR Combination Emergency Shower and Eye/Face Wash, Steel Pipe, Stainless Steel Eyewash Bowl, ABS Shower Head, 11 in Diameter Head, 11 in Diameter Bowl, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2009, cCSAus Certified, Green/Yellow, Hot Dipped Galvanized, Steel Fitting, 89-1/4 in H, Pull Rod/Push Handle Operation

APPLICATIONS

For quick drenching or flushing of the eyes

  • Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
  • AXION® MSR ABS plastic drench showerhead with flow control delivers dispersed flow for uniform drenching
  • Also features a stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, a round 11 in stainless steel bowl, mesh in-line eyewash strainer to collect line debris and ball valves with stainless steel ball and stem for durability
  • 1-1/4 in SCH 40/STD hot-dipped galvanized steel piping with green corrosion resistant epoxy coating protects for years of service
  • Supply and waste - 1-1/4 in NPT
  • AXION® eye/face wash head
  • AXION® shower head
  • Corrosion resistant
  • In-line strainer
  • Key components assembled
  • Upgraded ball valves
  • cCSAus Certified
  • Buy American Act Compliant
  • PROP65: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm
