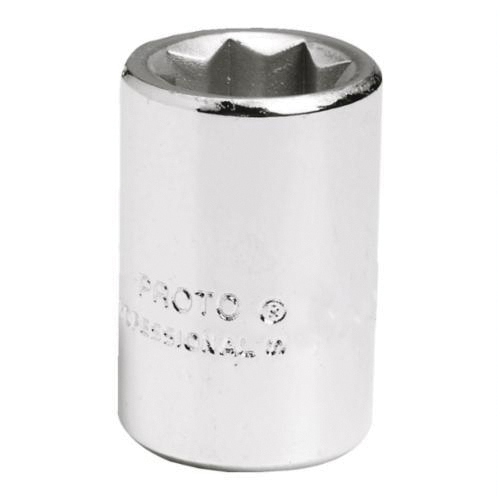

Proto® J5210S Standard Length Socket, Imperial, 3/8 in Square Drive, 5/16 in
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J5210S
- Mfr Part: J5210S
- UPC: 662679161316
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J5210S
DESCRIPTION
Proto® Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 5/16 in Socket, 1-5/64 in Overall Length, 1/4 in Opening Depth, 5/8 in Drive End Width, 9/16 in Socket End Width, Ball Locking, 8 Points, 39/64 in Bolt Clearance Depth, Alloy Steel, Full Polished
APPLICATIONS
For square fasteners
| Bolt Clearance Depth | : | 39/64 in |
| Drive End Width | : | 5/8 in |
| Finish | : | Full Polished |
| Locking Type | : | Ball |
| Material | : | Alloy Steel |
| Opening Depth | : | 1/4 in |
| Overall Length | : | 1-5/64 in |
| Socket End Width | : | 9/16 in |
| Type | : | Standard Length |
| Impact Rated | : | No |
| Measurement System | : | Imperial |
| Drive Type | : | Square |
| Drive Size | : | 3/8 in |
| Socket Size | : | 5/16 in |
| Number of Points | : | 8 |
- The TorquePlus™ design is a high performance Drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- ASME B107.110-2012
