Proto® TorquePlus™ J1246B Anti-Slip Design Combination Wrench, Imperial, 1-7/16 in, 12 Points, 15 deg Offset, 19-3/8 in OAL, Alloy Steel, Black Oxide, ASME B107.100
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J1246B
- Mfr Part: J1246B
- UPC: 662679090708
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:

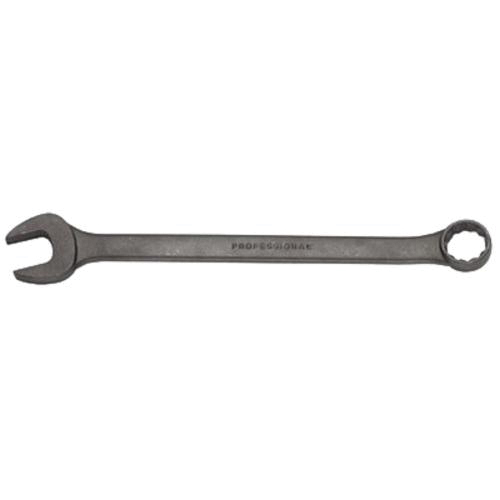

Proto® J1246B
DESCRIPTION
Proto® TorquePlus™ Combination Wrench, Anti-Slip Design, Measurement System: Imperial, Spline Wrench, 1-7/16 in Wrench Opening, 12 Points, 19-3/8 in Overall Length, 15 deg Offset, 2-57/64 in Open End Width, 37/64 in Open End Thickness, 23/64 in Box End Width, 51/64 in Box End Thickness, 15 deg Head, ASME B107.100 Specifications Met, 1-47/64 in Throat Depth, Alloy Steel, Black Oxide
| Box End Thickness | : | 51/64 in |
| Box End Width | : | 23/64 in |
| Head Angle | : | 15 deg |
| Open End Thickness | : | 37/64 in |
| Open End Width | : | 2-57/64 in |
| Throat Depth | : | 1-47/64 in |
| Type | : | Anti-Slip Design |
| Wrench Type | : | Spline |
| Measurement System | : | Imperial |
| Wrench Opening | : | 1-7/16 in |
| Number of Points | : | 12 |
| Offset Angle | : | 15 deg |
| Overall Length | : | 19-3/8 in |
| Material | : | Alloy Steel |
| Finish/Coating | : | Black Oxide |
| Specifications Met | : | ASME B107.100 |
- Non-reflective black oxide finish for use where non-plated products are required
- 12 point box end allows for fine indexing, helping to improve speed and access
- Fits 4, 6 and 12 point fasteners
- The box end is countersunk for easy application to the fastener
- 15 deg angled offset box end keeps wrench clear of obstructions
- Anti-slip design (ASD) open end
- Sizes 1-5/16 in and larger do not have ASD feature
- Box ends incorporate the TorquePlus™ system
- ASME B107.100
