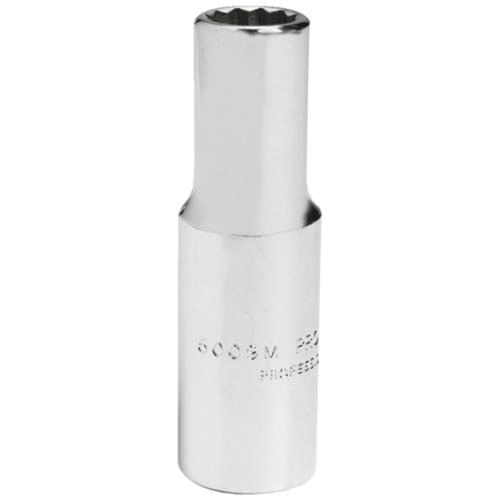

Proto® TorquePlus™ J5018M Deep Length Socket, Metric, 3/8 in Square Drive, 18 mm
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J5018M
- Mfr Part: J5018M
- UPC: 662679160937
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J5018M
DESCRIPTION
Proto® TorquePlus™ Socket, Deep Length, No Impact Rated, Measurement System: Metric, Square Drive, 3/8 in Drive, 18 mm Socket, 69.9 mm Overall Length, 16.5 mm Opening Depth, 23.9 mm Drive End Width, 23.9 mm Socket End Width, Ball Locking, 12 Points, 53.4 mm Bolt Clearance Depth, Alloy Steel, Full Polished
APPLICATIONS
For use on stubborn or damaged fasteners and also on fasteners made from soft materials
| Bolt Clearance Depth | : | 53.4 mm |
| Drive End Width | : | 23.9 mm |
| Finish | : | Full Polished |
| Locking Type | : | Ball |
| Material | : | Alloy Steel |
| Opening Depth | : | 16.5 mm |
| Overall Length | : | 69.9 mm |
| Socket End Width | : | 23.9 mm |
| Type | : | Deep Length |
| Impact Rated | : | No |
| Measurement System | : | Metric |
| Drive Type | : | Square |
| Drive Size | : | 3/8 in |
| Socket Size | : | 18 mm |
| Number of Points | : | 12 |
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- ASME B107.110-2012
- AS954E S3.8.1
