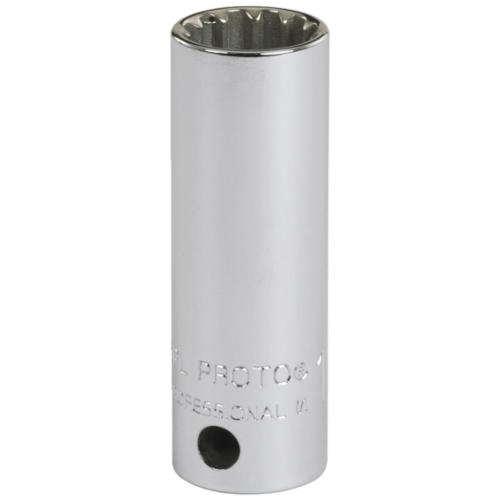

Proto® J5018DPL Deep Length Socket, Imperial, 3/8 in Square Drive, #18 to 9/16 in Spline Socket
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J5018DPL
- Mfr Part: J5018DPL
- UPC: 662679974763
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J5018DPL
DESCRIPTION
Proto® Socket, Deep Length, Measurement System: Imperial, Square Drive, 3/8 in Drive, Spline Socket, #18 to 9/16 in Socket, 2-3/8 in Overall Length, 15/32 in Opening Depth, 13/16 in Drive End Width, 13/16 in Socket End Width, Ball Locking, 12 Points, 1-7/8 in Bolt Clearance Depth, Alloy Steel, Full Polished
APPLICATIONS
Automotive, Industrial, Military, Commercial Aircraft and Heavy Machinery Applications
| Bolt Clearance Depth | : | 1-7/8 in |
| Drive End Width | : | 13/16 in |
| Finish | : | Full Polished |
| Locking Type | : | Ball |
| Material | : | Alloy Steel |
| Opening Depth | : | 15/32 in |
| Overall Length | : | 2-3/8 in |
| Socket End Width | : | 13/16 in |
| Type | : | Deep Length |
| Measurement System | : | Imperial |
| Drive Type | : | Square |
| Drive Size | : | 3/8 in |
| Socket Type | : | Spline |
| Socket Size | : | #18 to 9/16 in |
| Number of Points | : | 12 |
- Proto® spline tools are designed to service high tensile strength fasteners used widely on military and commercial aircraft and in heavy machinery applications where vibration is prevalent
- Spline sockets help tighten high strength bolts to high torque loads
- They help lower the force required to turn standard fasteners by allowing the torque load to be moved away from the corners to help prevent fastener rounding
- They also turn fasteners with damaged corners
- Spline sockets on spline fasteners help deliver twice the torque of 12 point wrenches on double box fasteners and more torque than hex wrenches on hex fasteners
- Spline helps reduce foreign object debris (FOD) by having a precise fit between the fastening tool and its fastener
- MIL-W-8982/1A
