Proto® J1218BASD
  • https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_17d3881ce18086650babc073402e5181ce7aa18f8980033ae889c8852fb2d6ce.pdf

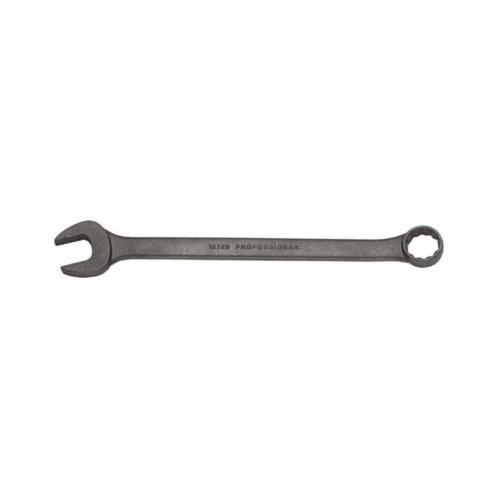

Proto® TorquePlus™ J1218BASD Anti-Slip Design Combination Wrench, Imperial, 9/16 in, 12 Points, 15 deg Offset, 8-1/16 in OAL, Alloy Steel, Black Oxide, ASME B107.100

  • ITEM CODE: STAPR-J1218BASD
  • UPC: 662679073602

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

Proto® J1218BASD

DESCRIPTION


Proto® TorquePlus™ Combination Wrench, Anti-Slip Design, Measurement System: Imperial, Spline Wrench, 9/16 in Wrench Opening, 12 Points, 8-1/16 in Overall Length, 15 deg Offset, 1-3/16 in Open End Width, 19/64 in Open End Thickness, 27/32 in Box End Width, 23/64 in Box End Thickness, 15 deg Head, ASME B107.100 Specifications Met, 11/16 in Throat Depth, Oval Handle, Alloy Steel, Black Oxide

SPECIFICATIONS

FEATURES

  • Non-reflective black oxide finish for use where non-plated products are required
  • 12 point box end allows for fine indexing, helping to improve speed and access
  • Fits 4, 6 and 12 point fasteners
  • The box end is countersunk for easy application to the fastener
  • 15 deg angled offset box end keeps wrench clear of obstructions
  • Anti-slip design (ASD) open end
  • Sizes 1-5/16 in and larger do not have ASD feature
  • Box ends incorporate the TorquePlus™ system
  • Locking groove to help prevent slippage
  • Arched surface which spreads the force over a 400% larger contact area to help prolong life
  • No ribs or serrations to damage fasteners
  • Allows upto 15% more torque to be applied to the fastener
  • Reduces risk of fastener rounding
  • Provides a better grip on worn, rounded fasteners

REFERENCES

  • pdf Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_17d3881ce18086650babc073402e5181ce7aa18f8980033ae889c8852fb2d6ce.pdf
