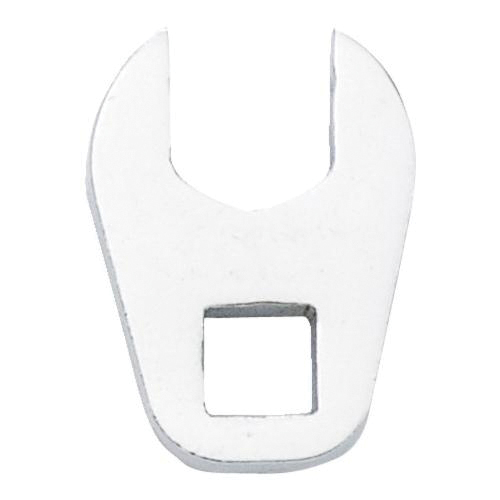

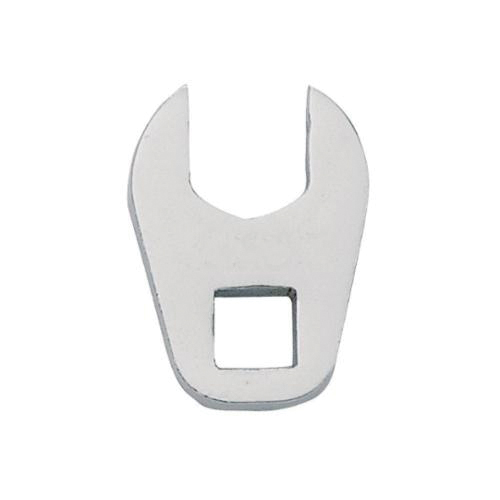

Proto® J4917MCF Crowfoot Wrench, 17 mm Box/Single End Wrench, 3/8 in Drive, 1-23/32 in OAL, ASME B107.21, Full Polished
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J4917MCF
- Mfr Part: J4917MCF
- UPC: 662679979645
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J4917MCF
DESCRIPTION
Proto® Crowfoot Wrench, Measurement System: Metric, 17 mm Wrench Opening, Box/Single End Wrench, 1-23/32 in Overall Length, 3/8 in Drive, Specifications Met: ASME B107.21, Alloy Steel, Full Polished
APPLICATIONS
For lower torque applications
| Material | : | Alloy Steel |
| Measurement System | : | Metric |
| Wrench Type | : | Box/Single End |
| Wrench Opening | : | 17 mm |
| Drive Size | : | 3/8 in |
| Overall Length | : | 1-23/32 in |
| Specifications Met | : | ASME B107.21 |
| Finish/Coating | : | Full Polished |
- Crowfoot wrenches are used in hard-to-reach, restricted access situations where a standard wrench or ratchet cannot reach
- Anti-slip design open end (ASD)
- The arched surfaces are designed to spread the contact forces over a greater area and they keep the loads off the corners of the fastener which helps prevent fastener rounding
- Broad size range ensures the right tool for the application
- Full polish finish provides corrosion resistance and easy-to-clean surfaces
- Locking hole feature helps keep the crowfoot wrench engaged on the extension during use reducing downtime due to detachment of crowfoot in awkward spaces
- Use with locking extensions to reach into spaces too small for a mechanic arm or where the fastener is out of site
- ASME B107.21
