Proto® J4714SPL
  • https://assets.unilogcorp.com/2/ITEM/DOC/Proto_J4752FBL_Catalog.pdf

Proto® J4714SPL Standard Length Socket, Imperial, 1/4 in Square Drive, #14 to 7/16 in Spline Socket

  • ITEM CODE: STAPR-J4714SPL
  • UPC: 662679974657

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

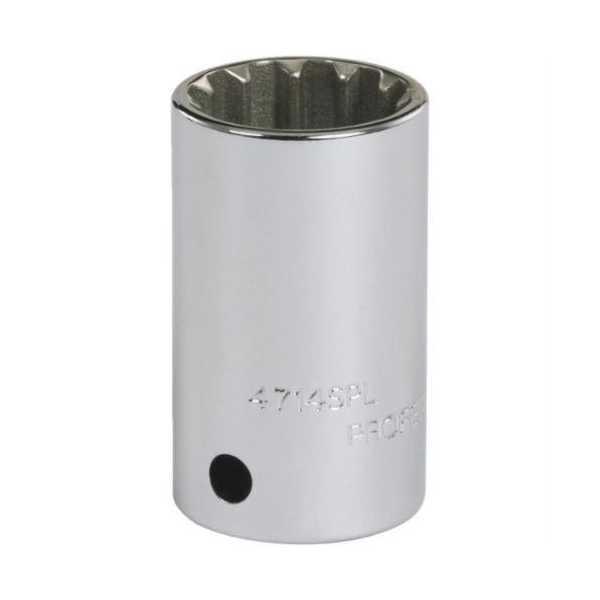

Proto® J4714SPL

DESCRIPTION


Proto® Socket, Standard Length, Measurement System: Imperial, Square Drive, 1/4 in Drive, Spline Socket, #14 to 7/16 in Socket, 1-1/32 in Overall Length, 27/64 in Opening Depth, 5/8 in Drive End Width, 5/8 in Socket End Width, 12 Points, 11/16 in Bolt Clearance Depth, Alloy Steel, Full Polished

APPLICATIONS

Automotive, Industrial, Military, Commercial Aircraft and Heavy Machinery Applications

SPECIFICATIONS

FEATURES

  • Proto® spline tools are designed to service high tensile strength fasteners used widely on military and commercial aircraft and in heavy machinery applications where vibration is prevalent
  • They are also used in automotive and industrial areas where high performance torque needs to be achieved
  • Spline sockets help tighten high strength bolts to high torque loads
  • They help lower the force required to turn standard fasteners by allowing the torque load to be moved away from the corners to help prevent fastener rounding
  • They also turn fasteners with damaged corners
  • Spline sockets on spline fasteners help deliver twice the torque of 12 point wrenches on double box fasteners and more torque than hex wrenches on hex fasteners
  • Spline helps reduce foreign object debris (FOD) by having a precise fit between the fastening tool and its fastener

REFERENCES

  • pdf Catalog https://assets.unilogcorp.com/2/ITEM/DOC/Proto_J4752FBL_Catalog.pdf
