Proto® TorquePlus™ J4710DPL Deep Length Socket, Imperial, 1/4 in Square Drive, #10 to 5/16 in Spline Socket
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J4710DPL
- Mfr Part: J4710DPL
- UPC: 662679974701
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:

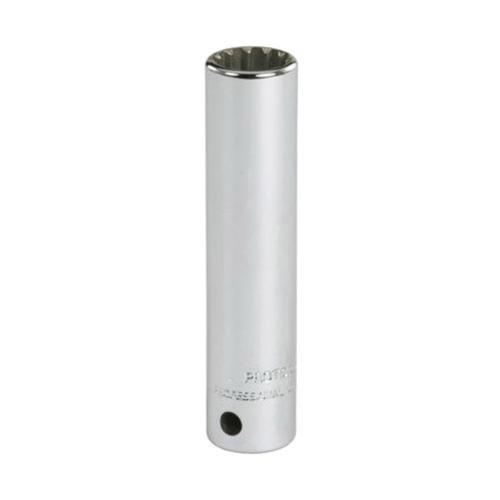

Proto® J4710DPL
DESCRIPTION
Proto® TorquePlus™ Socket, Deep Length, Measurement System: Imperial, Square Drive, 1/4 in Drive, Spline Socket, #10 to 5/16 in Socket, 2 in Overall Length, 5/16 in Opening Depth, 29/64 in Drive End Width, 29/64 in Socket End Width, Ball Locking, 12 Points, 1.65 in Bolt Clearance Depth, Alloy Steel, Full Polished
| Bolt Clearance Depth | : | 1.65 in |
| Drive End Width | : | 29/64 in |
| Finish | : | Full Polished |
| Locking Type | : | Ball |
| Material | : | Alloy Steel |
| Opening Depth | : | 5/16 in |
| Overall Length | : | 2 in |
| Socket End Width | : | 29/64 in |
| Type | : | Deep Length |
| Measurement System | : | Imperial |
| Drive Type | : | Square |
| Drive Size | : | 1/4 in |
| Socket Type | : | Spline |
| Socket Size | : | #10 to 5/16 in |
| Number of Points | : | 12 |
- Proto® spline tools are designed to service high tensile strength fasteners used widely on military and commercial aircraft and in heavy machinery applications where vibration is prevalent
- They are also used in automotive and industrial areas where high performance torque needs to be achieved
- Spline sockets help tighten high strength bolts to high torque loads
- They help lower the force required to turn standard fasteners by allowing the torque load to be moved away from the corners to help prevent fastener rounding
- They also turn fasteners with damaged corners
- Spline sockets on spline fasteners help deliver twice the torque of 12 point wrenches on double box fasteners and more torque than hex wrenches on hex fasteners
- Spline helps reduce foreign object debris (FOD) by having a precise fit between the fastening tool and its fastener
