Proto® J7330HT
  • https://assets.unilogcorp.com/2/ITEM/DOC/Proto_J07520ML_Catalog.pdf

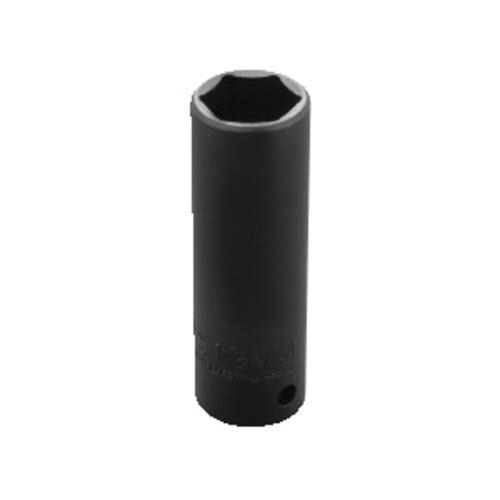

Proto® TorquePlus™ J7330HT Deep Length Thin Wall Socket, Imperial, 1/2 in Square Drive, 15/16 in

  • ITEM CODE: STAPR-J7330HT
  • UPC: 662679342296

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

Proto® J7330HT

DESCRIPTION


Proto® TorquePlus™ Socket, Deep Length Thin Wall, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 15/16 in Socket, 3-1/2 in Overall Length, 1-13/32 in Opening Depth, 1-17/64 in Drive End Width, 1-17/64 in Socket End Width, Side Locking Hole Locking, 6 Points, 1-7/16 in Bolt Clearance Depth, Alloy Steel, Black Oxide

APPLICATIONS

For use on stubborn or damaged fasteners and also on fasteners made from soft materials, light clearance applications

SPECIFICATIONS

FEATURES

  • Reduced wall thickness helps improve access to fasteners in restricted areas
  • All impact sockets feature one through hole and a groove to accept a retaining ring and pin to secure the socket to the power tool anvil
  • Chamfered service ends for quick and positive fastener engagement
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • Thin wall sockets are lightweight
  • Designed to fit into smaller spaces
  • Thinner walls help improve productivity by making it easier to gain access to fasteners in confined spaces
  • Extra deep length helps improve access in confined areas
  • Often used in application where fasteners are close together, such as tire service

CERTIFICATIONS/STANDARDS

  • ASME B107.110-2012
  • ASME B107.2

REFERENCES

  • pdf Catalog https://assets.unilogcorp.com/2/ITEM/DOC/Proto_J07520ML_Catalog.pdf
