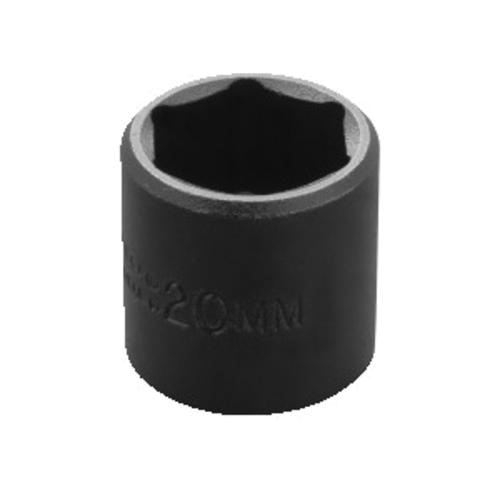

Proto® TorquePlus™ J7220M Standard Length Socket, Metric, 3/8 in Square Drive, 20 mm
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J7220M
- Mfr Part: J7220M
- UPC: 662679331085
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J7220M
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Square Drive, 3/8 in Drive, 20 mm Socket, 27.8 mm Overall Length, 13.4 mm Opening Depth, 28.2 mm Drive End Width, 28.2 mm Socket End Width, Side Locking Hole Locking, 6 Points, 15.1 mm Bolt Clearance Depth, Alloy Steel, Black Oxide
APPLICATIONS
For use on stubborn or damaged fasteners and also on fasteners made from soft materials
| Bolt Clearance Depth | : | 15.1 mm |
| Drive End Width | : | 28.2 mm |
| Finish | : | Black Oxide |
| Locking Type | : | Side Locking Hole |
| Material | : | Alloy Steel |
| Opening Depth | : | 13.4 mm |
| Overall Length | : | 27.8 mm |
| Socket End Width | : | 28.2 mm |
| Type | : | Standard Length |
| Impact Rated | : | Yes |
| Measurement System | : | Metric |
| Drive Type | : | Square |
| Drive Size | : | 3/8 in |
| Socket Size | : | 20 mm |
| Number of Points | : | 6 |
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Socket size stamped on tool for easy identification
- ASME B107.110-2012
- ASME B107.33M
