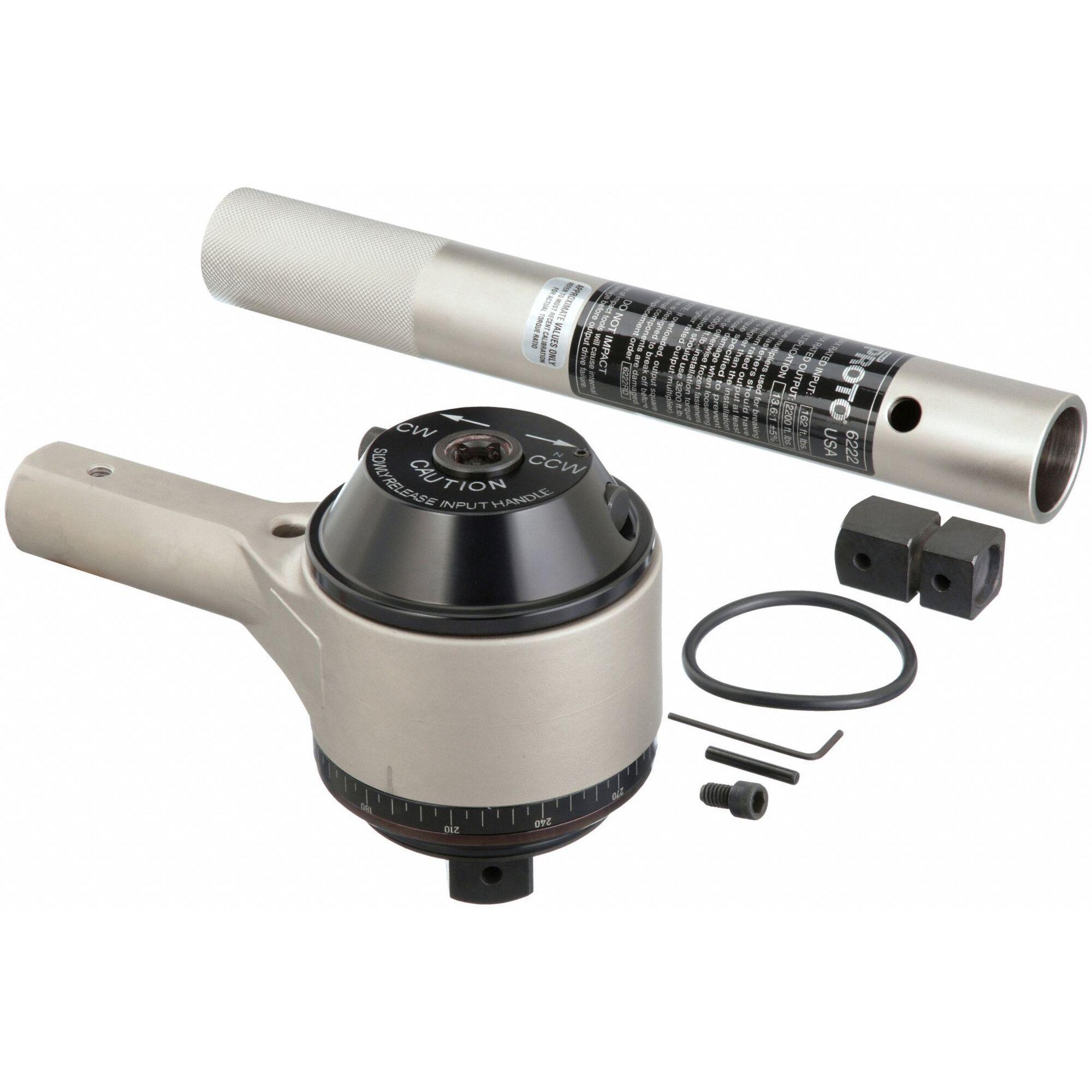

Proto® J6232 Torque Multiplier, 20.2 Gear Ratio, 18.5:1 Torque Ratio, 1/2 in Square Female x 1 in Square Male Drive, 20 in OAL, 173 ft-lb Max, 3200 ft-lb Max, Tubular Bar
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J6232
- Mfr Part: J6232
- UPC: 662679130411
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/BX
-
Price:
Proto® J6232
DESCRIPTION
Proto® Torque Multiplier, 20.2 Gear Ratio, 18.5:1 Torque Ratio, 1/2 in Square Female x 1 in Square Male Drive, 173 ft-lb Maximum Torque Input, 3200 ft-lb Maximum Torque Output, 4-1/32 in L x 6-3/8 in D Head, 20 in Overall Length, Reaction System: Tubular Bar, Bi-Metal, Full Polished
APPLICATIONS
For use with torque wrenches and heavy duty power or impact sockets
| Finish | : | Full Polished |
| Head Size | : | 4-1/32 in L x 6-3/8 in D |
| Material | : | Bi-Metal |
| Gear Ratio | : | 20.2 |
| Torque Ratio | : | 18.5:1 |
| Drive Size | : | 1/2 in Square Female x 1 in Square Male |
| Overall Length | : | 20 in |
| Maximum Torque Input | : | 173 ft-lb |
| Maximum Torque Output | : | 3200 ft-lb |
| Reaction System | : | Tubular Bar |
- Standard torque accuracy is +/- 5% of reading
- Reaction system tubular reaction bar
- Single stage planetary gear system
- Self-contained, 3-position anti-backlash device
- 5 deg increments angle of turn protractor
- 14-1/8 in L handle
- NIST Certified
