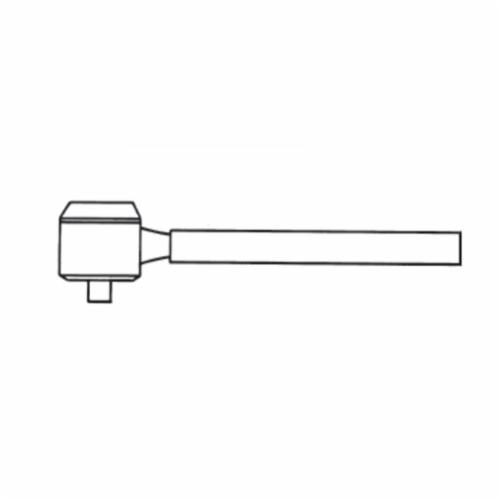

Proto® J6212CERT Torque Multiplier, 1:6 Gear Ratio, 1:6 Torque Ratio, 1/2 in Square Female x 3/4 in Square Male Drive, 19-19/32 in OAL, 200 ft-lb Max Torque Input, 1200 ft-lb Max Torque Output
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J6212CERT
- Mfr Part: J6212CERT
- UPC: 662679132194
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J6212CERT
DESCRIPTION
Proto® Torque Multiplier, 1:6 Gear Ratio, 1:6 Torque Ratio, 1/2 in Square Female x 3/4 in Square Male Drive, 200 ft-lb Maximum Torque Input, 1200 ft-lb Maximum Torque Output, 3-15/16 in L x 4 in D Head, 19-19/32 in Overall Length, Tubular Bar Reaction System, Bi-Metal, Full Polished
APPLICATIONS
For use with torque wrenches and heavy duty power or impact sockets
| Finish | : | Full Polished |
| Head Size | : | 3-15/16 in L x 4 in D |
| Material | : | Bi-Metal |
| Gear Ratio | : | 1:6 |
| Torque Ratio | : | 1:6 |
| Drive Size | : | 1/2 in Square Female x 3/4 in Square Male |
| Overall Length | : | 19-19/32 in |
| Maximum Torque Input | : | 200 ft-lb |
| Maximum Torque Output | : | 1200 ft-lb |
| Reaction System | : | Tubular Bar |
- Standard torque accuracy is +/-5% of reading
- Single stage planetary gear system
- 5 deg increments angle of turn protractor
- NIST Certified
