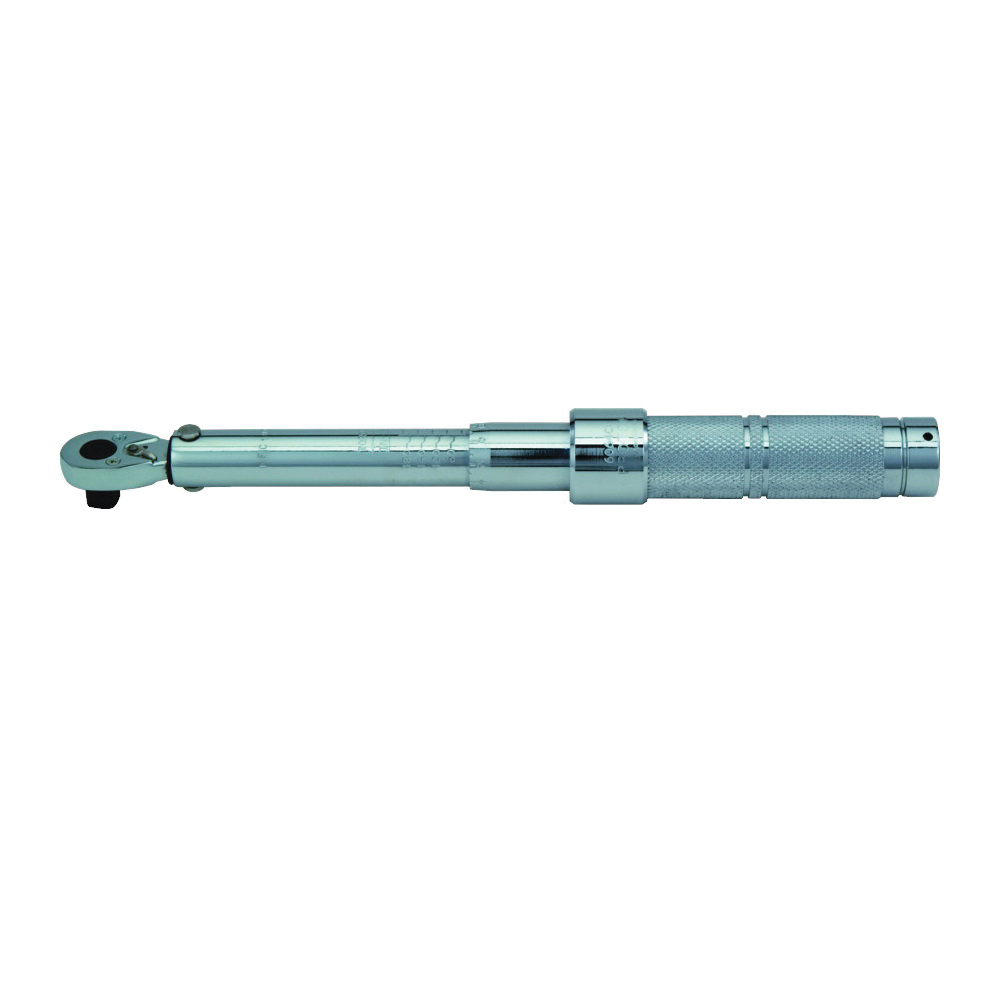

Proto® J6072C C Series Micrometer Torque Wrench, 1/2 in Drive, 600 to 3000 in-lb, Ratcheting Head, 10 in-lb Graduation, 27-1/8 in OAL, ASME B107.14M
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J6072C
- Mfr Part: J6072C
- UPC: 662679136116
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J6072C
DESCRIPTION
Proto® Micrometer Torque Wrench, Series: C Series, 1/2 in Drive, 600 to 3000 in-lb, Ratcheting, Graduations: 10 in-lb, 27-1/8 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 50000 Cycles Minimum, Audible Click Indicator, Knurled Grip, Specifications Met: ASME B107.14M, Steel, Full Polished
APPLICATIONS
Military and Aerospace Applications
| Accuracy | : | +/-3% CW, +/-6% CCW |
| Finish | : | Full Polished |
| Handle Type | : | Knurled Grip |
| Indicator Type | : | Audible Click |
| Material | : | Steel |
| Minimum Number of Cycles | : | 50000 |
| Rotation Type | : | CW/CCW |
| Series | : | C Series |
| Setting | : | Automatic Reset |
| Drive Size | : | 1/2 in |
| Torque Range | : | 600 to 3000 in-lb |
| Head Type | : | Ratcheting |
| Graduations | : | 10 in-lb |
| Overall Length | : | 27-1/8 in |
| Specifications Met | : | ASME B107.14M |
- Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- ASME B107.14M
