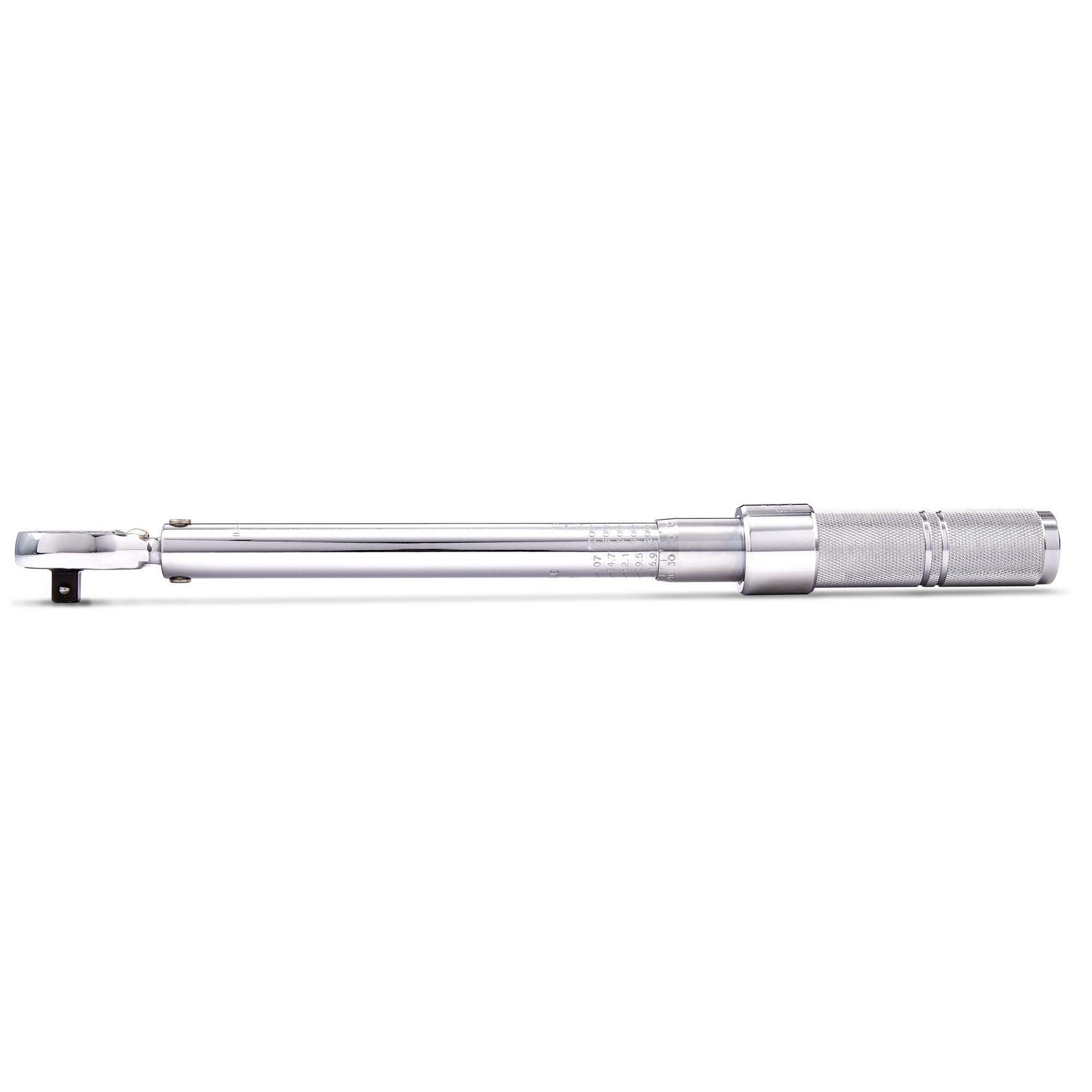

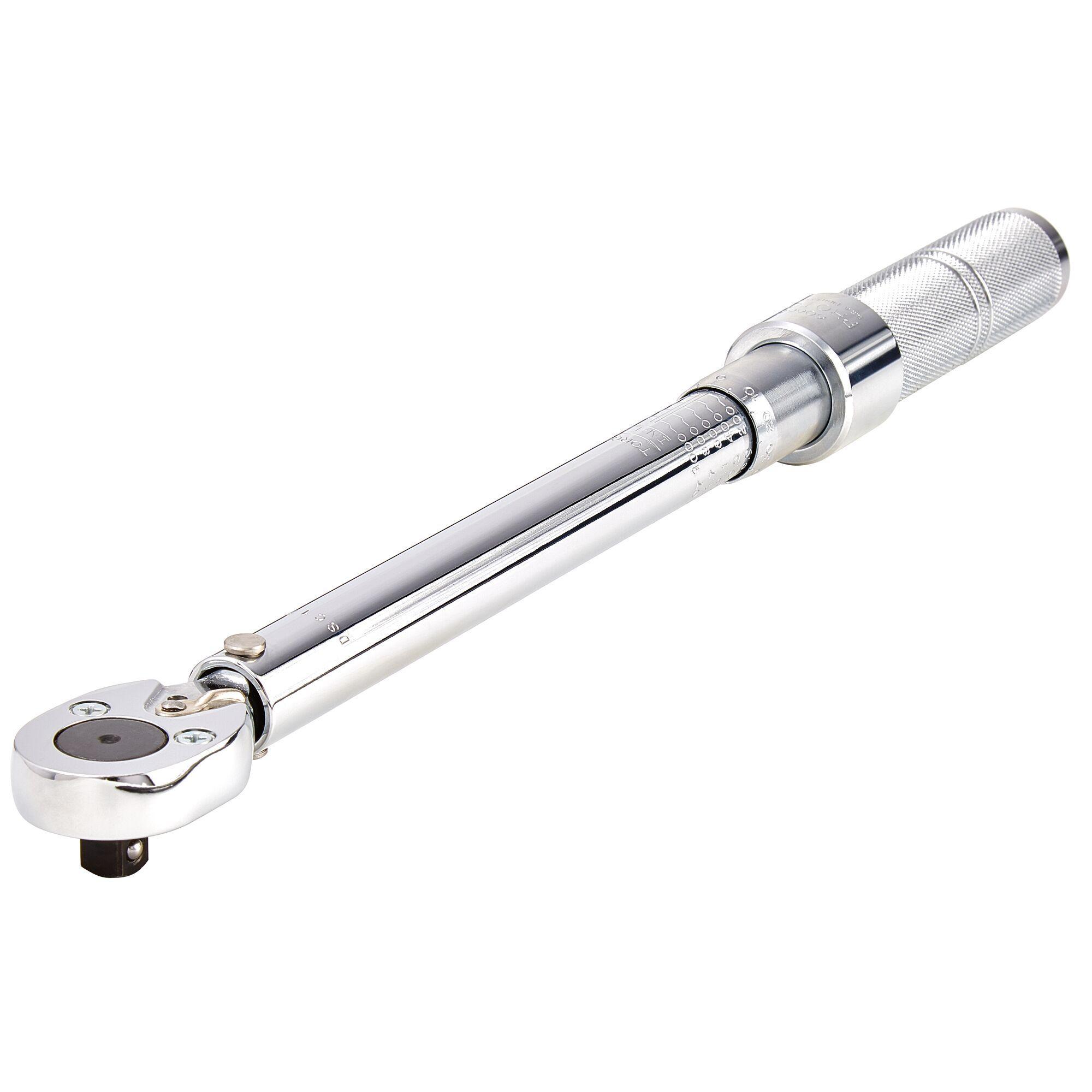

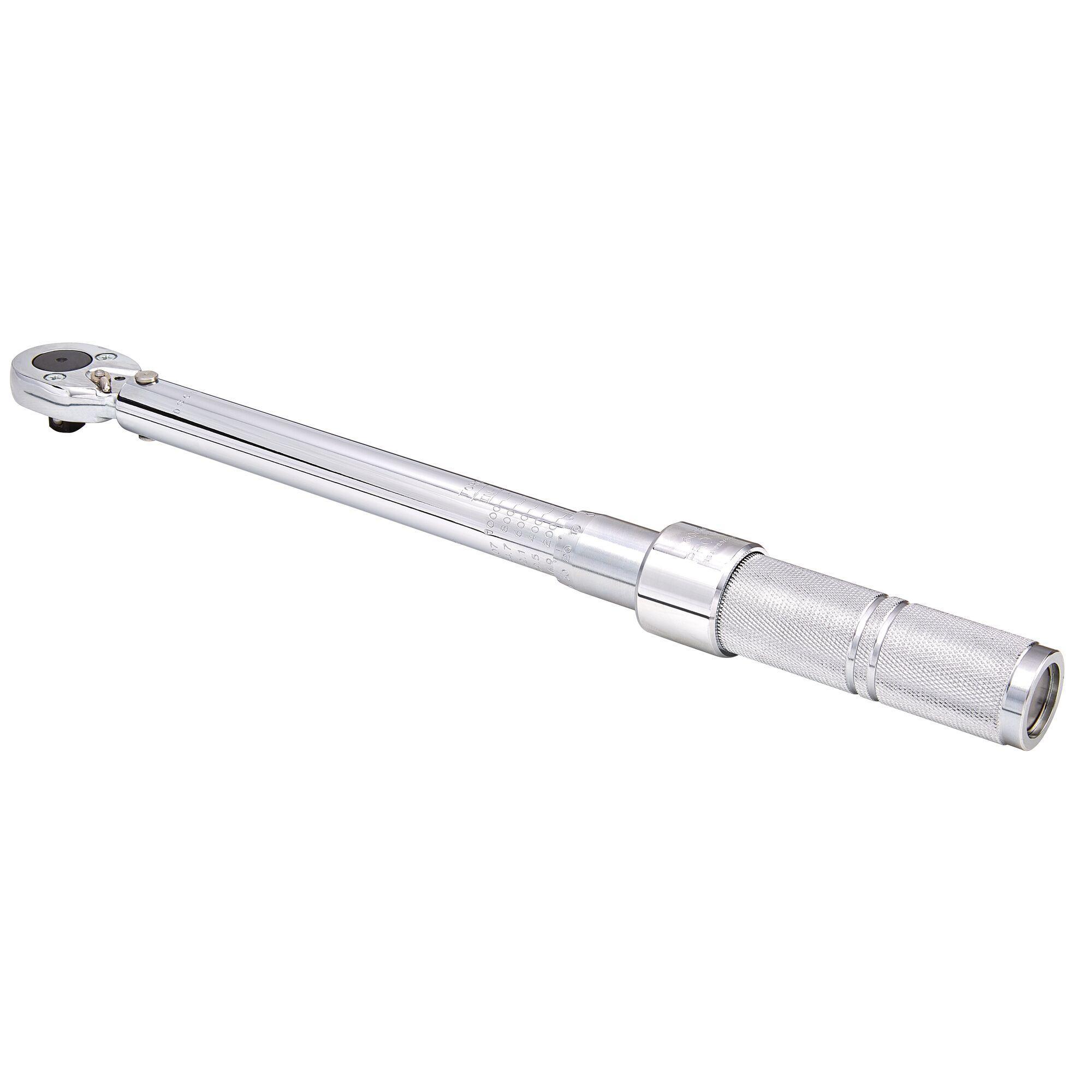

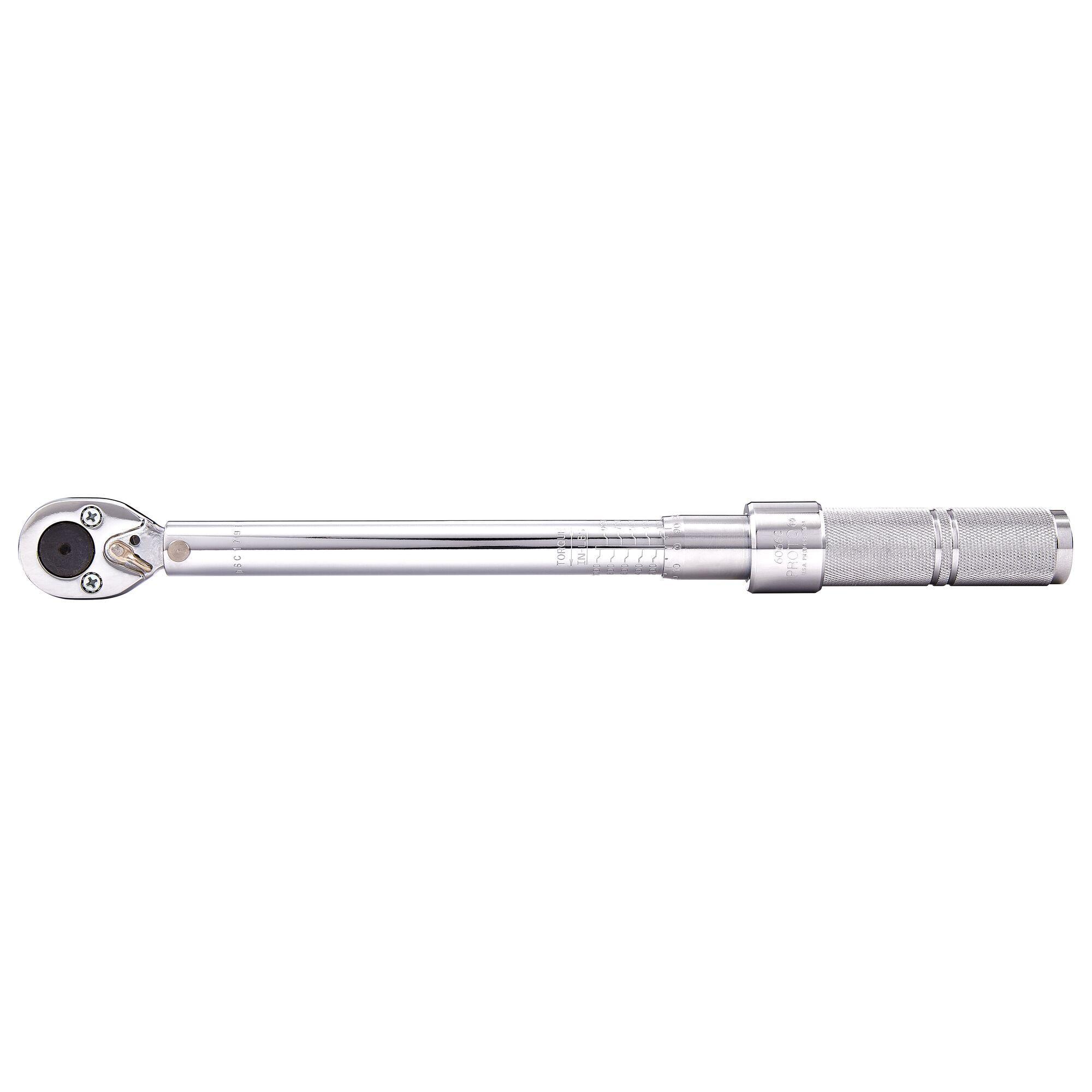

Proto® J6066C C Series Micrometer Torque Wrench, 3/8 in Drive, 200 to 1000 in-lb, Ratcheting Head, 5 in-lb Graduation, 15-1/2 in OAL, ASME B107.300-2010, TO33K6-4-2193-1
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J6066C
- Mfr Part: J6066C
- UPC: 662679136093
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/BX
-
Price:
Proto® J6066C
DESCRIPTION
Proto® Micrometer Torque Wrench, Series: C Series, 3/8 in Drive, 200 to 1000 in-lb, Head Ratcheting, Graduations: 5 in-lb, 15-1/2 in Overall Length, CW/CCW Rotation, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 50000 Cycles Minimum, Audible Click Indicator, Knurled/Screw-On End Cap Handle, Specifications Met: ASME B107.300-2010, TO33K6-4-2193-1, Steel, Full Polished
APPLICATIONS
Military and Aerospace Applications
| Accuracy | : | +/-3% CW, +/-6% CCW |
| Finish | : | Full Polished |
| Handle Type | : | Knurled/Screw-On End Cap |
| Indicator Type | : | Audible Click |
| Material | : | Steel |
| Minimum Number of Cycles | : | 50000 |
| Rotation Type | : | CW/CCW |
| Series | : | C Series |
| Setting | : | Automatic Reset |
| Drive Size | : | 3/8 in |
| Torque Range | : | 200 to 1000 in-lb |
| Head Type | : | Ratcheting |
| Graduations | : | 5 in-lb |
| Overall Length | : | 15-1/2 in |
| Specifications Met | : | ASME B107.300-2010, TO33K6-4-2193-1 |
- Calibrated to +/-4% clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- This Proto® torque wrench is made from high grade steel for strength and durability
- Thin head design to allow access in tight areas
- For strength and durability
- ASME B107.14
