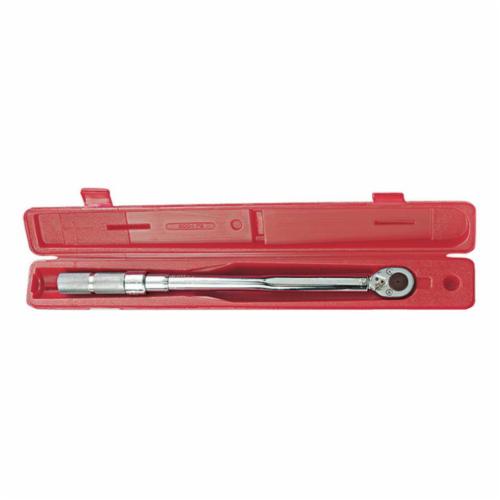

Proto® J6020AB Micrometer Torque Wrench, 3/4 in Drive, 120 to 600 ft-lb, Ratcheting Head, 2 ft-lb Graduation, 41 in OAL, ASME B107.14M
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J6020AB
- Mfr Part: J6020AB
- UPC: 662679134587
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J6020AB
DESCRIPTION
Proto® Micrometer Torque Wrench, 3/4 in Drive, 120 to 600 ft-lb, Ratcheting, Graduations: 2 ft-lb, 41 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Audible Click Indicator, Ergonomic, ASME B107.14M, Steel, Full Polished
APPLICATIONS
Military and Aerospace Applications
| Accuracy | : | +/-3% CW, +/-6% CCW |
| Finish | : | Full Polished |
| Handle Type | : | Ergonomic |
| Indicator Type | : | Audible Click |
| Material | : | Steel |
| Rotation Type | : | CW/CCW |
| Drive Size | : | 3/4 in |
| Torque Range | : | 120 to 600 ft-lb |
| Head Type | : | Ratcheting |
| Graduations | : | 2 ft-lb |
| Overall Length | : | 41 in |
| Specifications Met | : | ASME B107.14M |
- Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- 45-tooth gear/floating pawl design for small 6.8 in arc swing
- 13% smaller head for access in tight work areas
- Reversing lever designed for quick, 1-hand operation
- ASME B107.14
