Proto® J6006CXCERT CXCERT Micrometer Torque Wrench, 3/8 in Drive, 16 to 80 ft-lb, Ratcheting Head, 0.5 ft-lb Graduation, 15-1/2 in OAL, ASME B107.14, ASME B107.300-2010, TO33K6-4-2193-1
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J6006CXCERT
- Mfr Part: J6006CXCERT
- UPC: 662679081003
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/BX
-
Price:

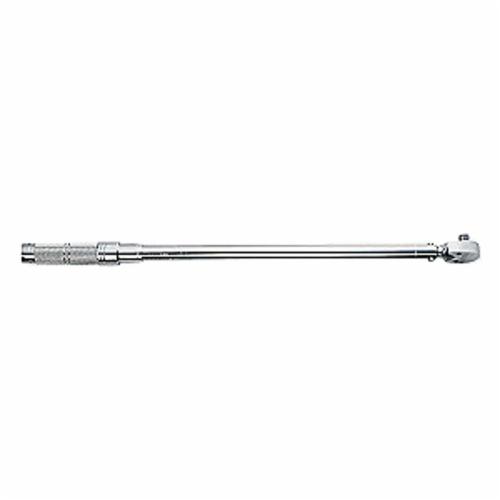

Proto® J6006CXCERT
DESCRIPTION
Proto® Micrometer Torque Wrench, Series: CXCERT, 3/8 in Drive, 16 to 80 ft-lb, Head Ratcheting, Graduations: 0.5 ft-lb, 15-1/2 in Overall Length, CW/CCW Rotation, +/-3% CW, +/-6% CCW Accuracy, Audible Click Indicator, Specifications Met: ASME B107.300-2010, TO33K6-4-2193-1, Steel, Full Polished
APPLICATIONS
Military and Aerospace Applications
| Accuracy | : | +/-3% CW, +/-6% CCW |
| Finish | : | Full Polished |
| Indicator Type | : | Audible Click |
| Material | : | Steel |
| Rotation Type | : | CW/CCW |
| Series | : | CXCERT |
| Drive Size | : | 3/8 in |
| Torque Range | : | 16 to 80 ft-lb |
| Head Type | : | Ratcheting |
| Graduations | : | 0.5 ft-lb |
| Overall Length | : | 15-1/2 in |
| Specifications Met | : | ASME B107.300-2010, TO33K6-4-2193-1 |
- Calibrated to +/-4% clockwise direction and +/-6% counter clockwise direction
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- Certification documents traceable to NIST(national institute of standards and technology)
- This Proto® torque wrench is made from high grade steel for strength and durability
- Positive locking mechanism to dial and lock in desired torque
- Thin head design to allow access in tight areas
- Calibrated to +/-3% in clockwise direction and +/-6% in counter clockwise direction
- For strength and durability
- ASME B107.14
- ASME B107.300
