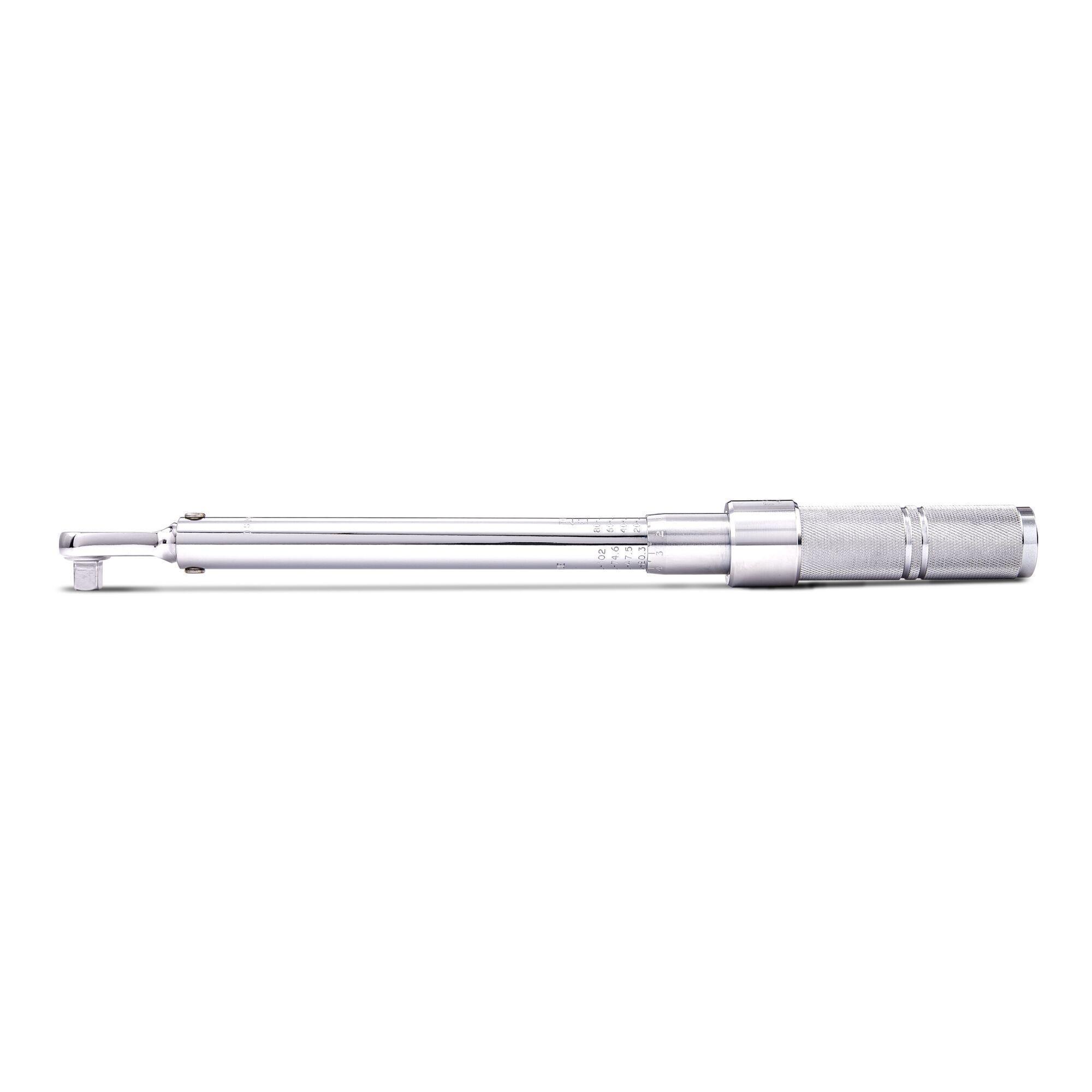

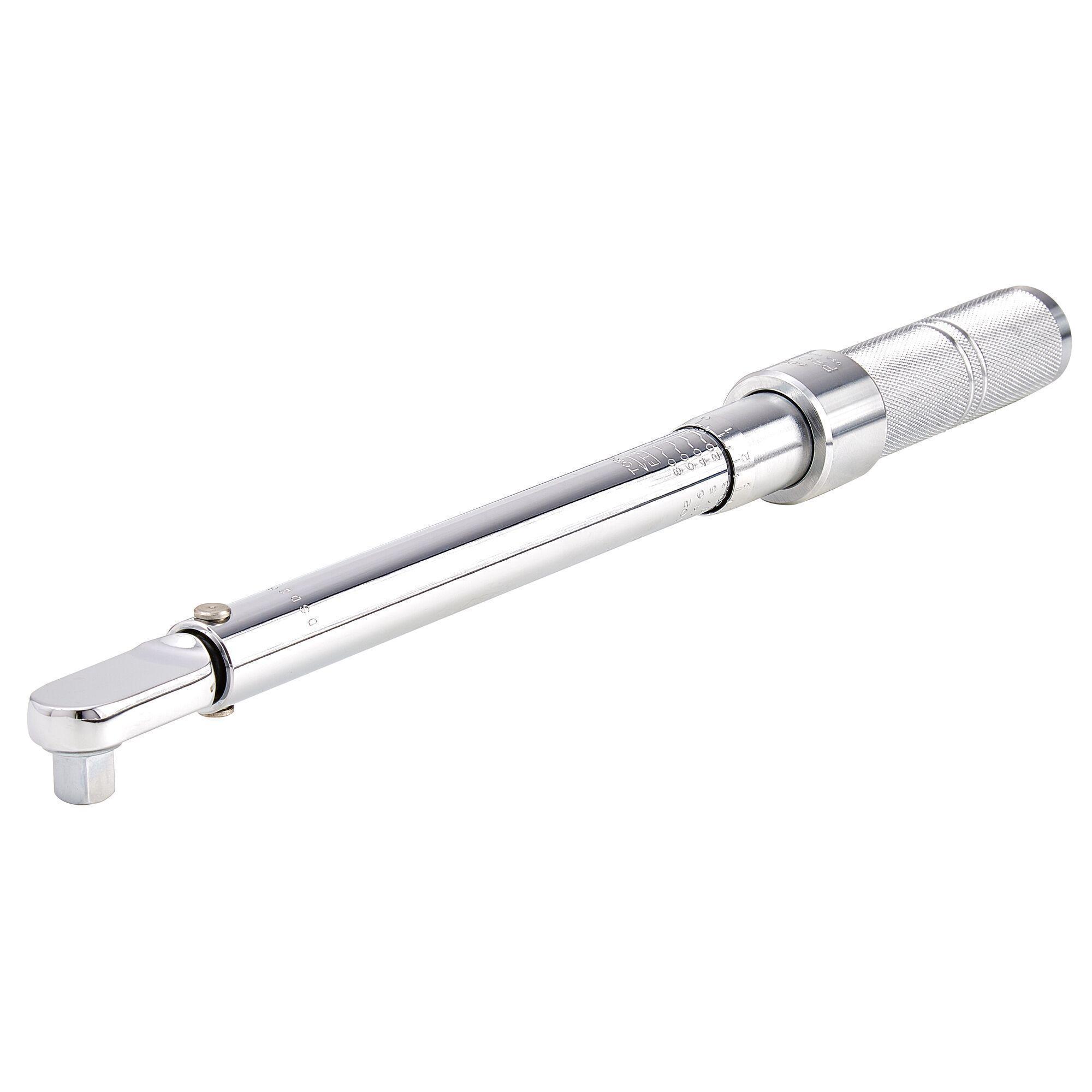

Proto® J6005C C Micrometer Torque Wrench, 3/8 in Drive, Fixed Head, 16 to 80 ft-lb, 0.5 ft-lb, 15 in OAL
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J6005C
- Mfr Part: J6005C
- UPC: 662679135928
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J6005C
DESCRIPTION
Proto® Micrometer Torque Wrench, Series: C Series, 3/8 in Drive, 16 to 80 ft-lb, Fixed Head, Graduations: 0.5 ft-lb, 15 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 50000 Cycles Minimum, Audible Click Indicator, Knurled/Screw-On End Cap Handle, ASME B107.14M Specifications Met, Steel, Full Polished
APPLICATIONS
Industrial Torque, General Industry, Heavy Equipment and Maintenance Applications
| Accuracy | : | +/-3% CW, +/-6% CCW |
| Finish | : | Full Polished |
| Handle Type | : | Knurled/Screw-On End Cap |
| Indicator Type | : | Audible Click |
| Material | : | Steel |
| Minimum Number of Cycles | : | 50000 |
| Rotation Type | : | CW/CCW |
| Series | : | C Series |
| Setting | : | Automatic Reset |
| Drive Size | : | 3/8 in |
| Torque Range | : | 16 to 80 ft-lb |
| Head Type | : | Fixed |
| Graduations | : | 0.5 ft-lb |
| Overall Length | : | 15 in |
| Specifications Met | : | ASME B107.14M |
- Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- This Proto® torque wrench is made from high grade steel for strength and durability
- Positive locking mechanism to dial and lock in desired torque
- Thin head design to allow access in tight areas
- Calibrated To Plus or Minus 3% In Clockwise Direction And Plus Or Minus 6% In Counter Clockwise Direction
- For strength and durability
- ASME B107.14M
