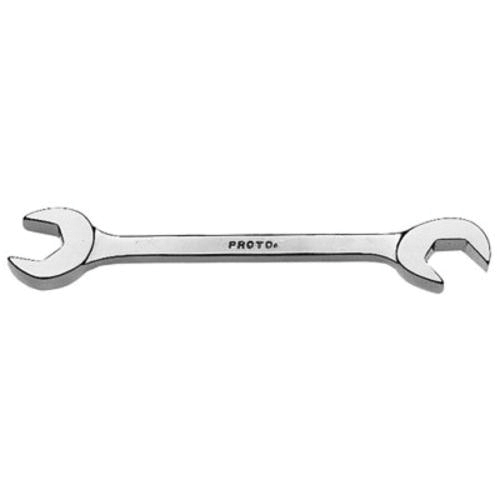

Proto® J3117M Open End Wrench, Metric, 17 mm Wrench, Angled/Double Head, 165.1 mm L, Alloy Steel, Full Polished, ASME B107.100
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J3117M
- Mfr Part: J3117M
- UPC: 662679051761
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J3117M
DESCRIPTION
Proto® Open End Wrench, Measurement System: Metric, 17 mm Wrench Opening, 165.1 mm Overall Length, 1-11/32 in Open End Width, 9/32 in Open End Thickness, Angled/Double, 15/60 deg Head, 47/64 in Throat Depth, Flat, ASME B107.100 Specifications Met, Alloy Steel, Full Polished
APPLICATIONS
Production, Industrial and Professional
| Handle Type | : | Flat |
| Head Angle | : | 15/60 deg |
| Open End Thickness | : | 9/32 in |
| Open End Width | : | 1-11/32 in |
| Throat Depth | : | 47/64 in |
| Measurement System | : | Metric |
| Wrench Opening | : | 17 mm |
| Head Type | : | Angled/Double |
| Overall Length | : | 165.1 mm |
| Material | : | Alloy Steel |
| Finish/Coating | : | Full Polished |
| Specifications Met | : | ASME B107.100 |
- Double nickel strike for rust resistance and prolonged life
- 15 deg and 60 deg angle heads combined with the same size opening on both ends allow wrench to be used in four different turning angles for greater access in tight work areas
- Federal Spec GGG-W-641E
- ANSI B107.1
