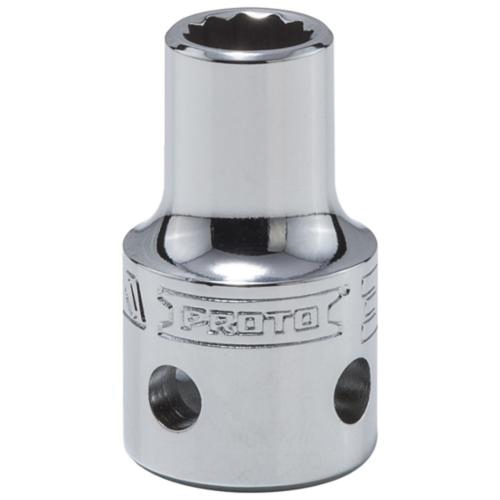

Proto® J5430-TT
  • https://assets.unilogcorp.com/2/ITEM/DOC/Proto_J206GXL_TT_Catalog.pdf

Proto® TorquePlus™ J5430-TT Standard Length Tether Ready Socket, 1/2 in Square Drive, 15/16 in, 12 Points

  • ITEM CODE: STAPR-J5430-TT
  • UPC: 662679117153

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

Proto® J5430-TT

DESCRIPTION


Proto® TorquePlus™ Socket, Standard Length Tether Ready, Series, Measurement System, Square Drive, Drive Size, in 1/2, Socket Size, in 15/16, 1-9/16 Overall Length, Opening Depth in, in 13/16, 1-1/4 Drive End Width, Socket End Width in, in 1-1/4, Number of Points, Bolt Clearance Depth, in 45/64, Alloy Steel, Finish

APPLICATIONS

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

SPECIFICATIONS

FEATURES

  • Proto® tethered tool sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive
  • The positive control system requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent
  • Chrome finish is applied after the holes are bored for better corrosion resistance
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners

REFERENCES

  • pdf Catalog https://assets.unilogcorp.com/2/ITEM/DOC/Proto_J206GXL_TT_Catalog.pdf
