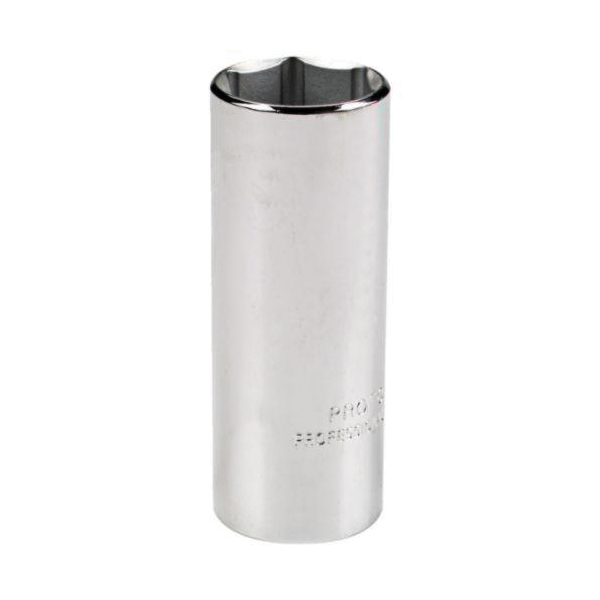

Proto® TorquePlus™ J5344H Deep Length Socket, Imperial, 1/2 in Square Drive, 1-3/8 in
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J5344H
- Mfr Part: J5344H
- UPC: 662679182564
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J5344H
DESCRIPTION
Proto® TorquePlus™ Socket, Deep Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 1-3/8 in Socket, 3-1/2 in Overall Length, 29/32 in Opening Depth, 1-5/8 in Drive End Width, 1-7/8 in Socket End Width, Ball Locking, 6 Points, 2-1/4 in Bolt Clearance Depth, Alloy Steel, Full Polished
APPLICATIONS
For use on stubborn or damaged fasteners and also on fasteners made from soft materials
| Bolt Clearance Depth | : | 2-1/4 in |
| Drive End Width | : | 1-5/8 in |
| Finish | : | Full Polished |
| Locking Type | : | Ball |
| Material | : | Alloy Steel |
| Opening Depth | : | 29/32 in |
| Overall Length | : | 3-1/2 in |
| Socket End Width | : | 1-7/8 in |
| Type | : | Deep Length |
| Impact Rated | : | No |
| Measurement System | : | Imperial |
| Drive Type | : | Square |
| Drive Size | : | 1/2 in |
| Socket Size | : | 1-3/8 in |
| Number of Points | : | 6 |
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- ASME B107.110-2012
