Proto® TorquePlus™ ProtoBlack™ J5316B Deep Length Socket, Imperial, 1/2 in Square Drive, 1/2 in
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J5316B
- Mfr Part: J5316B
- UPC: 662679300043
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:

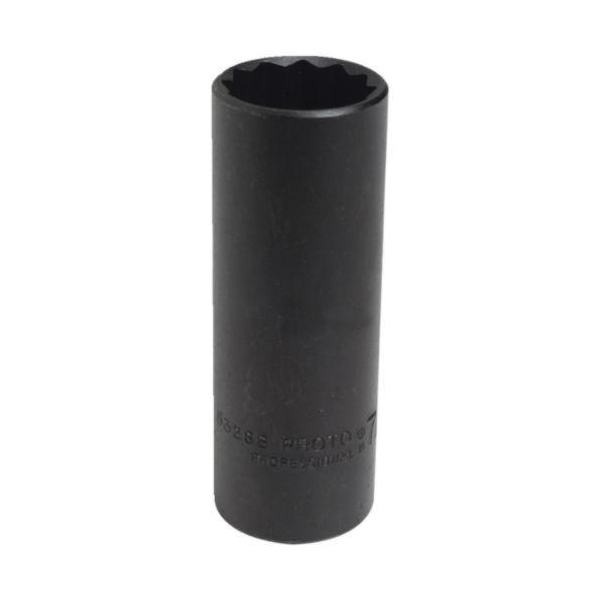

Proto® J5316B
DESCRIPTION
Proto® TorquePlus™ ProtoBlack™ Socket, Deep Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 1/2 in Socket, 3-1/4 in Overall Length, 51/64 in Opening Depth, 55/64 in Drive End Width, 47/64 in Socket End Width, Ball Locking, 12 Points, 2-1/8 in Bolt Clearance Depth, Alloy Steel, Black Oxide
APPLICATIONS
For use on stubborn or damaged fasteners and also on fasteners made from soft materials
| Bolt Clearance Depth | : | 2-1/8 in |
| Drive End Width | : | 55/64 in |
| Finish | : | Black Oxide |
| Locking Type | : | Ball |
| Material | : | Alloy Steel |
| Opening Depth | : | 51/64 in |
| Overall Length | : | 3-1/4 in |
| Socket End Width | : | 47/64 in |
| Type | : | Deep Length |
| Impact Rated | : | No |
| Measurement System | : | Imperial |
| Drive Type | : | Square |
| Drive Size | : | 1/2 in |
| Socket Size | : | 1/2 in |
| Number of Points | : | 12 |
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- ASME B107.110-2012
- AS954E S3.8.1
