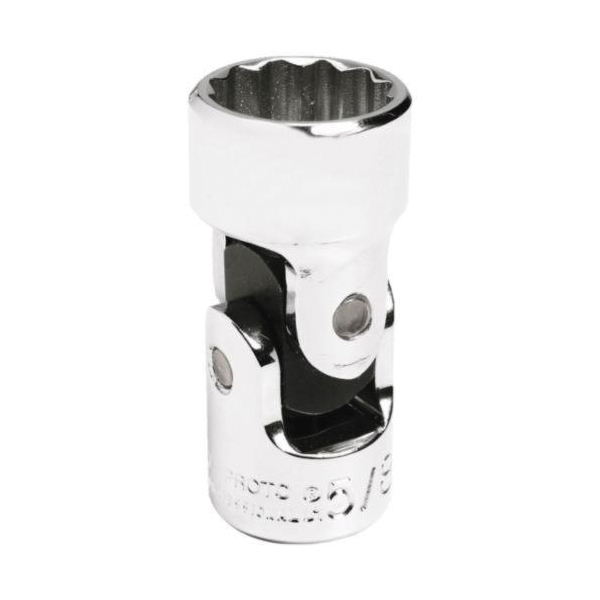

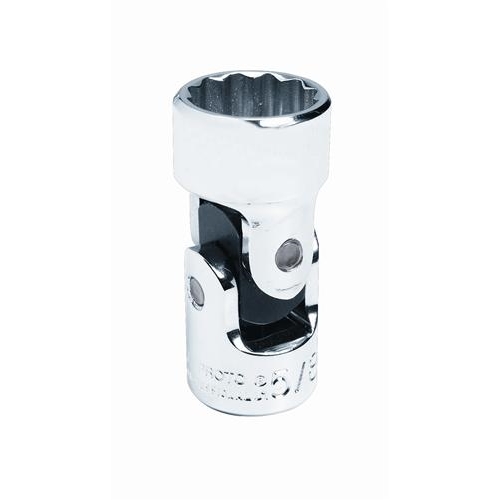

Proto® TorquePlus™ J5277A Standard Length Universal Socket, Imperial, 3/8 in Square Drive, 5/8 in
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J5277A
- Mfr Part: J5277A
- UPC: 662679994365
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J5277A
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length Universal, Measurement System: Imperial, Square Drive, 3/8 in Drive, 5/8 in Socket, 1-27/32 in Overall Length, 3/8 in Opening Depth, 7/8 in Drive End Width, 7/8 in Socket End Width, 12 Points, 39/64 in Bolt Clearance Depth, Alloy Steel, Full Polished
APPLICATIONS
For use on stubborn or damaged fasteners and also on fasteners made from soft materials
| Bolt Clearance Depth | : | 39/64 in |
| Drive End Width | : | 7/8 in |
| Finish | : | Full Polished |
| Material | : | Alloy Steel |
| Opening Depth | : | 3/8 in |
| Overall Length | : | 1-27/32 in |
| Socket End Width | : | 7/8 in |
| Type | : | Standard Length Universal |
| Measurement System | : | Imperial |
| Drive Type | : | Square |
| Drive Size | : | 3/8 in |
| Socket Size | : | 5/8 in |
| Number of Points | : | 12 |
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- ASME B107.110-2012
- AS954E S3.8.1
