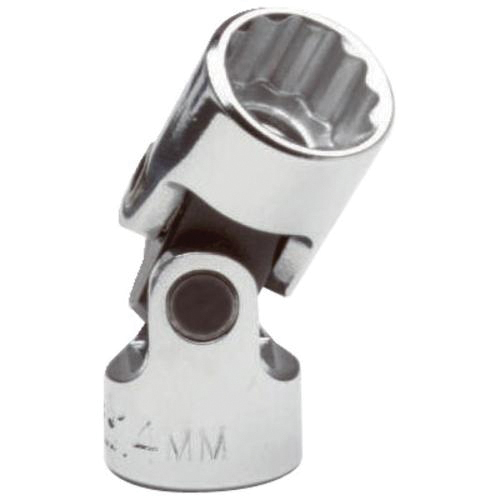

Proto® TorquePlus™ J5275AM Standard Length Socket, Metric, 3/8 in Square Drive, 12 mm Universal Socket, 12 Points
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J5275AM
- Mfr Part: J5275AM
- UPC: 662679996222
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J5275AM
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length, Measurement System: Metric, Square Drive, 3/8 in Drive, Universal Socket, 12 mm Socket, 1-3/4 in Overall Length, 11/32 in Opening Depth, 23/32 in Drive End Width, 21/32 in Socket End Width, 12 Points, 1/2 in Bolt Clearance Depth, Alloy Steel, Full Polished
APPLICATIONS
For use on stubborn or damaged fasteners and also on fasteners made from soft materials
| Bolt Clearance Depth | : | 1/2 in |
| Drive End Width | : | 23/32 in |
| Finish | : | Full Polished |
| Material | : | Alloy Steel |
| Opening Depth | : | 11/32 in |
| Overall Length | : | 1-3/4 in |
| Socket End Width | : | 21/32 in |
| Type | : | Standard Length |
| Measurement System | : | Metric |
| Drive Type | : | Square |
| Drive Size | : | 3/8 in |
| Socket Type | : | Universal |
| Socket Size | : | 12 mm |
| Number of Points | : | 12 |
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- ASME B107.110-2012
- AS954E S3.8.1
