Seco Secomax™ 00005682 Turning Insert, ANSI Code: TPGN322F-L1 PCD20, TPGN Insert, 160308 Insert, Triangular Shape, 16 Seat, PCD, Manufacturer's Grade: PCD20
- Manufacturers: Seco Tools
- Brand Name: Seco
- ITEM CODE: SECOT-05682
- Mfr Part: 00005682
- UPC: 05682000000201
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 2/PK
-
Price:
Seco 00005682
DESCRIPTION

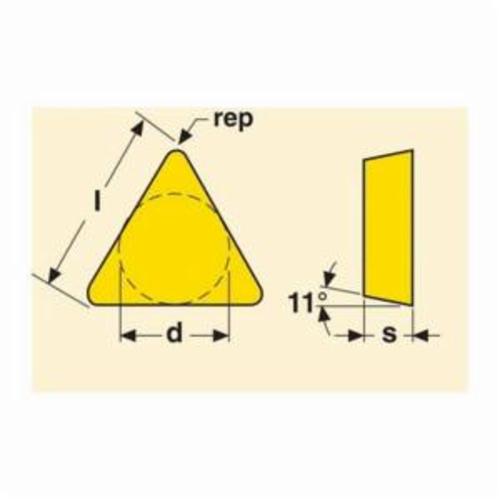

Seco Secomax™ Turning Insert, TPGN Insert, 160308 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16.5 mm Length, 16 Seat, L1 Chipbreaker, 0.8 mm Corner Radius, Manufacturer's Grade: PCD20, ANSI Code: TPGN322F-L1 PCD20, ISO Code: TPGN160308F-L1 PCD20, 60 deg Included Angle, 11 deg Relief Angle, PCD, Uncoated
| ANSI Code | : | TPGN322F-L1 PCD20 |
| Chipbreaker | : | L1 |
| Corner Radius | : | 0.8 mm |
| Finish | : | Uncoated |
| ISO Code | : | TPGN160308F-L1 PCD20 |
| Included Angle | : | 60 deg |
| Inscribed Circle | : | 9.52 mm |
| Length | : | 16.5 mm |
| Maximum Depth of Cut | : | 3.75 mm |
| Relief Angle | : | 11 deg |
| Thickness | : | 3.18 mm |
| Insert Style | : | TPGN |
| Insert Size | : | 160308 |
| Shape | : | Triangular |
| Seat Size | : | 16 |
| Material | : | PCD |
- Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
- ISO, ANSI
