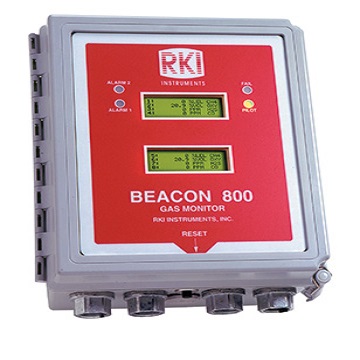

The Beacon 800 is a versatile, low cost fixed system controller for one to eight points of gas detection. It is microprocessor controlled and is capable of accepting up to 8 separate 4-20 mA sensor transmitters which can be either 2 or 3 wire. The Beaconª 800 can be powered by either 24 VDC, or 85-264 VAC. It is simple to operate and comes complete with a wall mount installation kit. The 2 large digital displays have backlighting and easily identify both the gas type and the gas concentration for all 8 channels simultaneously. The Beaconª 800 is housed in a NEMA 4X rated case for a weather tight seal. This case design complies with lock out / tag out standards and can be fully secured. An external reset switch allows alarms to be silenced from outside the controller housing. The bottom mounted wiring hubs allow for easy wiring. With 3 amp rated relays, the Beacon 800 can be wired directly to a variety of devices like alarm horns, buzzers, or lights. This eliminates the need for costly external relays from the controller to devices. RKI offers the industry’s widest selection of standard and toxic gas detection sensors, which can be utilized with the Beaconª 800, providing gas monitoring protection for almost any application.

RKI Beacon 800 Series Fixed Gas Detector Controller, 8 Channels, Audible Alarm, Alphanumeric Display with Backlighting, 85 to 264 vac/24 vdc, 12.5 in Height, 11 in Width, 6.4 in Depth, Polycarbonate, Grey, -10 to 50 deg c

For Petrochemical Plants, Refineries, Water and Wastewater Treatment Pants, Pulp and Paper Mills, Gas, Telephone and Electric Utilities, Parking Garages, Manufacturing, Facilities, Steel, Automotive, HVAC
