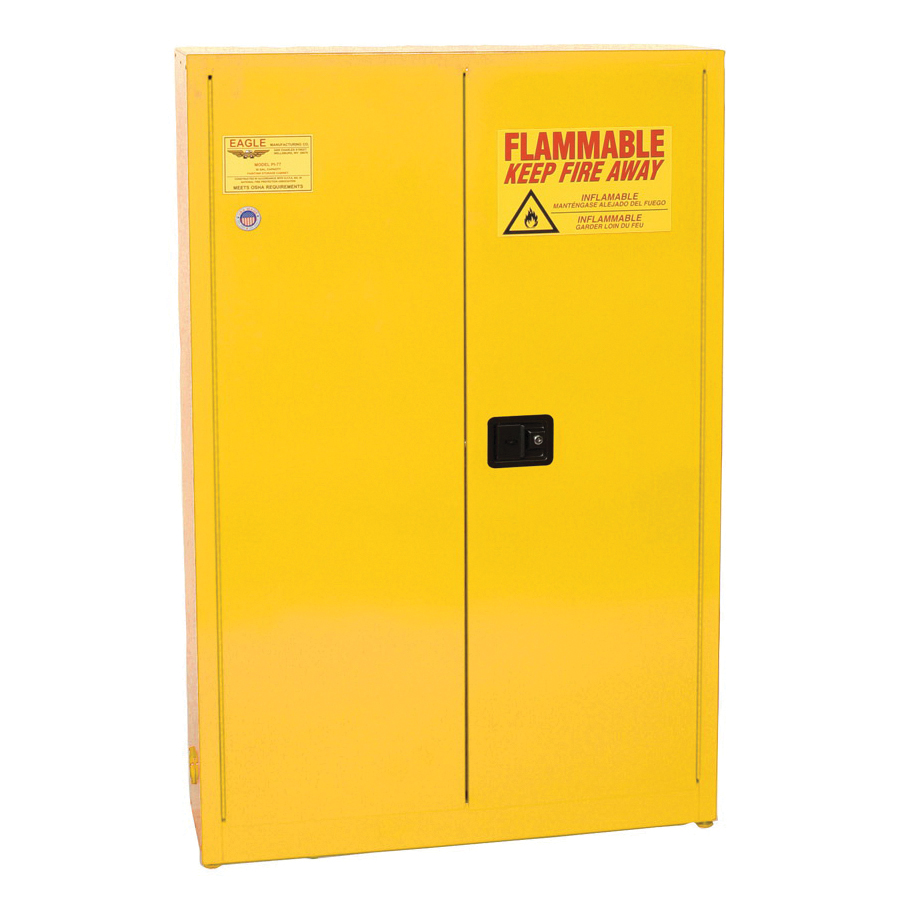

Eagle Manufacturing YPI7710X Paint and Ink Flammable Safety Cabinet, 30 gal Capacity, Lever Handle, 65 in H x 43 in W x 12 in D, Self-Close Door, 2 Doors, 5 Shelves, Steel, Yellow
- Manufacturers: Justrite Manufacturing
- Brand Name: Eagle Manufacturing
- ITEM CODE: EAGMA-YPI7710
- Mfr Part: YPI7710X
- UPC: 048441692545
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
- | Oversized
DESCRIPTION
Eagle 30 gal, self-closing, aerosol can storage paint and ink safety cabinets come with extra shelves to maximize storage space. Constructed of 18 ga steel, the sides, top, bottom and doors are double-walled with a 1-1/2 in air space between walls. Includes two vents, each have 2 in threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system and 2 in raised, leak-proof door sill. Each shelf is adjustable on 3 in centers, supported by four brackets, with a 350 lb safe allowable load. Cabinets are FM approved and meet NFPA Code 30 and OSHA requirements.
Eagle Manufacturing, YPI7710X, Flammable Safety Cabinet, Paint and Ink, 30 gal Capacity, 65 in Height, 43 in Width, 12 in Depth, Self-Close Door, 2 Doors, 5 Shelves, Steel, High Gloss Powder Coated, Yellow, Lever Handle
| Finish | : | High Gloss Powder Coated |
| Type | : | Paint and Ink |
| Capacity | : | 30 gal |
| Handle Type | : | Lever |
| Height | : | 65 in |
| Width | : | 43 in |
| Depth | : | 12 in |
| Door Type | : | Self-Close |
| Number of Doors | : | 2 |
| Number of Shelves | : | 5 |
| Material | : | Steel |
| Color | : | Yellow |
- Paint and ink safety cabinet is an aerosol can storage 30 gal safety cabinet with 5 shelves
- Continuous piano hinges
- Ground connection
- Four adjustable galvanized leveling legs
- Trilingual warning labels
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lb (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Flush mounted door handle with key lock
- Constructed of 18 ga steel, sides, top, bottom and doors are double-walled with a 1-1/2 in air space between walls
- 3-point stainless steel bullet latching system provides failsafe, positive door closure with increased heat and corrosion resistance
- 3 in (7.6 cm) centers for shelf brackets
- Self-latching doors
- 135 deg opening self-closing door
- Concealed self-close mechanism provides obstruction-free access to top shelf space
- Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom
- Additional shelves for aerosol cans
- Capacity based on the number of 1 gal (3.8 L) paint cans
- The 30 gal (113.6 L) cabinet is designed to hold up to (252) 12 oz aerosol cans
- Both vents, with 2 in threaded fittings have fire baffle and cap
- Cabinets come in red high gloss powder finish with warning labels, grounding connection, 3-point latch system, and 2 in raised, leakproof door sill
- FM/OSHA Compliant
- NFPA Code 30
- International Fire Code(IFC)
- PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
