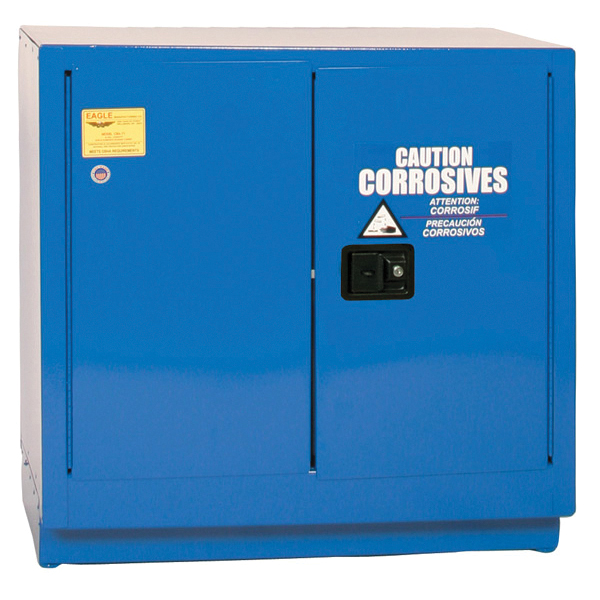

Eagle Manufacturing CRA71X Metal Acid Corrosive Safety Cabinet, 22 gal Capacity, Flush Handle, 35 in H x 35 in W x 22 in D, Manual Close Door, 2 Doors, 1 Shelves, 18 ga Steel, Blue
- Manufacturers: Justrite Manufacturing
- Brand Name: Eagle Manufacturing
- ITEM CODE: EAGMA-CRA71
- Mfr Part: CRA71X
- UPC: 048441690725
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
- | Oversized
DESCRIPTION
Eagle 22 gal, manual close, under counter acid corrosive safety cabinet is constructed of 18 ga steel. The sides, top, bottom and doors are double-walled with a 1-1/2 in air space between walls. Includes two vents, each have 2 in threaded fittings and a fire baffle and cap. Cabinets have a corrosion-resistant powder coat finish and includes trilingual warning label, plus grounding attachment, 3-point latch system and 2 in raised, leak-proof door sill. Each shelf is adjustable on 3 in centers, supported by four brackets, with a 350 lb safe allowable load. Includes poly shelf and sump trays to help contain small spills and provide extra corrosion protection. Not recommended for use with sulfuric, nitric or hydrochloric acids. Cabinets are FM approved and meet NFPA Code 30 and OSHA requirements.
Eagle Manufacturing, CRA71X, Corrosive Safety Cabinet, Metal Acid, 22 gal Capacity, 35 in Height, 35 in Width, 22 in Depth, Manual Close Door, 2 Doors, 1 Shelves, 18 ga Steel, High Gloss Powder Coated, Blue, Flush Handle
| Finish | : | High Gloss Powder Coated |
| Type | : | Metal Acid |
| Capacity | : | 22 gal |
| Handle Type | : | Flush |
| Height | : | 35 in |
| Width | : | 35 in |
| Depth | : | 22 in |
| Door Type | : | Manual Close |
| Number of Doors | : | 2 |
| Number of Shelves | : | 1 |
| Material | : | 18 ga Steel |
| Color | : | Blue |
- Constructed of 18 ga steel sides, top, bottom, and doors are double-walled with a 1-1/2 in air space between walls
- Continuous piano hinges
- Ground connection
- Four adjustable galvanized leveling legs
- Trilingual warning labels
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lb (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Flush mounted door handle with key lock
- Both vents, with 2 in threaded fittings, have fire baffle and cap
- 3-point stainless steel bullet latching system
- 3 in centers for shelf brackets
- Self-latching doors
- Cabinets come in blue high gloss powder finish with warning labels, grounding connection, 3-point key-lock, and 2 in raised, leakproof door sill
- Each shelf is adjustable and can support 350 lb
- Not recommended for use with sulfuric, nitric or hydrochloric acid
- 32 in H x 32 in W x 19 in D inside dimensions
- CRA-72 shelf model number
- 18-3/4 in D shelf
- Uniform fire code
- FM/OSHA Compliant
- NFPA Code 30
