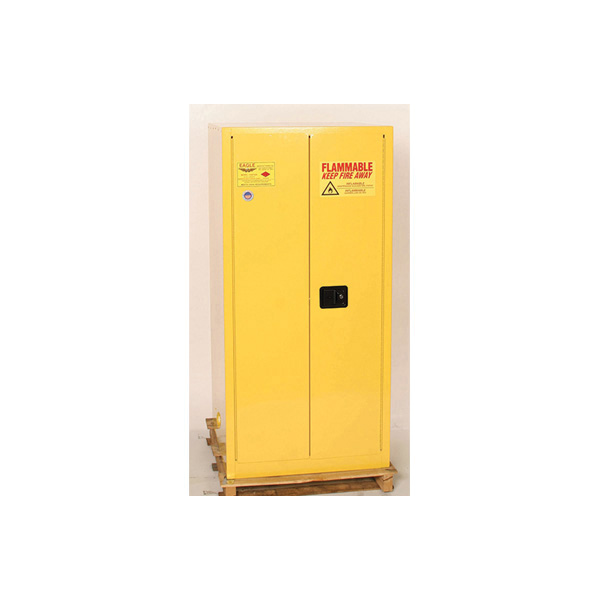

Eagle Manufacturing 1926X Vertical Flammable Safety Cabinet, 55 gal Capacity, Lever Handle, 65 in H x 31-1/4 in W x 31-1/4 in D, Manual Close Door, 2 Doors, 1 Shelves, Steel, Yellow
- Manufacturers: Justrite Manufacturing
- Brand Name: Eagle Manufacturing
- ITEM CODE: EAGMA-1926
- Mfr Part: 1926X
- UPC: 048441692354
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
- | Oversized
DESCRIPTION
Eagle 55 gal, manual close, vertical drum storage safety cabinet, can safely contain a 55 gal drum of flammable liquid. The cabinet features a convenient half shelf for additional storage space for accessories or containers and drum supports to keep drums elevated off cabinet sump. Constructed of 18 ga steel, the sides, top, bottom and doors are double-walled with a 1-1/2 in air space between walls. Includes two vents, each have 2 in threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system and 2 in raised, leak-proof door sill. Each shelf is adjustable on 3 in centers, supported by four brackets, with a 350 lb safe allowable load. Cabinets are FM approved and meet NFPA Code 30 and OSHA requirements.
Eagle Manufacturing, 1926X, Flammable Safety Cabinet, Vertical, 55 gal Capacity, 65 in Height, 31-1/4 in Width, 31-1/4 in Depth, Manual Close Door, 2 Doors, 1 Shelves, Steel, High Gloss Powder Coated, Yellow, Lever Handle
| Finish | : | High Gloss Powder Coated |
| Type | : | Vertical |
| Capacity | : | 55 gal |
| Handle Type | : | Lever |
| Height | : | 65 in |
| Width | : | 31-1/4 in |
| Depth | : | 31-1/4 in |
| Door Type | : | Manual Close |
| Number of Doors | : | 2 |
| Number of Shelves | : | 1 |
| Material | : | Steel |
| Color | : | Yellow |
- Safety cabinet keeps a 55 gal drum close to work area to safely contain flammable liquids or hazardous waste
- Continuous piano hinges
- Ground connection
- Four adjustable galvanized leveling legs
- Trilingual warning labels
- 2 in (5.1 cm) raised leakproof sill
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lb (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Two 2 in (5.1 cm) internal vents with fire baffle and cap
- Flush mounted door handle with key lock
- 3-point stainless steel bullet latching system provides failsafe, positive door closure with increased heat and corrosion resistance
- This vertical cabinet holds one 55 gal drum and features a convenient half shelf for additional storage space for accessories or containers
- 3 in (7.6 cm) centers for shelf brackets
- Self-latching doors
- 180 deg opening manual close door
- Drum support guides in the bottom and one shelf
- Drum storage cabinets come with drum supports
- Optional Eagle drum cabinet ramp makes loading and unloading much easier
- Cabinets come with large flammable - KEEP fire away and hazardous waste labels
- 62 in H x 28-1/4 in W x 28-1/4 in D inside dimensions
- NFPA Code 30
- OSHA 29 CFR 1910.106(d)(3)
- OSHA Compliant
